Selector Lever - Assembly and Disassembly: Assembly

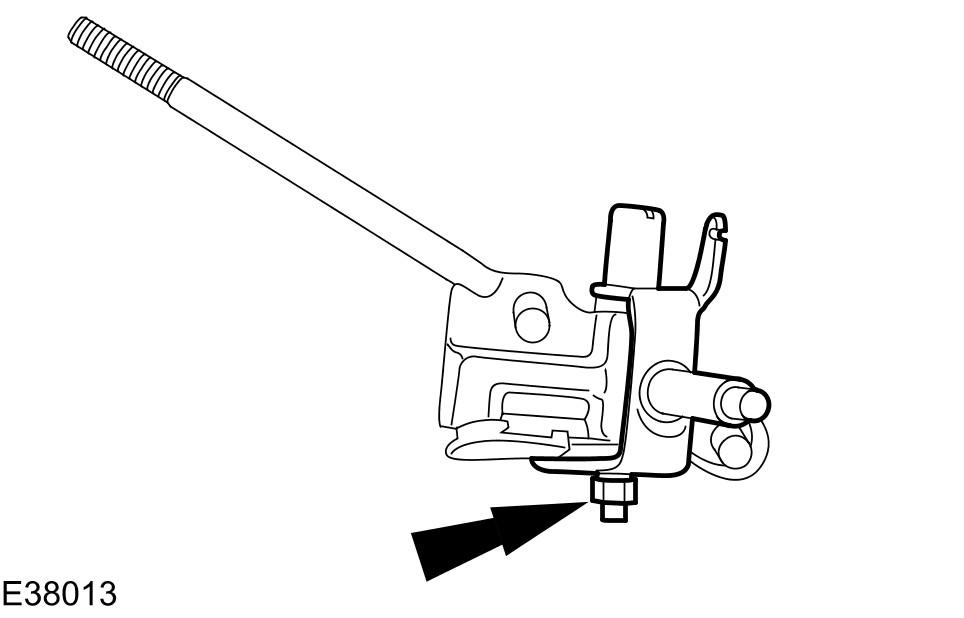

GJ0002483Courtesy of JAGUAR CARS, INC.
  1. To install, reverse the removal procedure.
    • Tighten to 10 Nm.

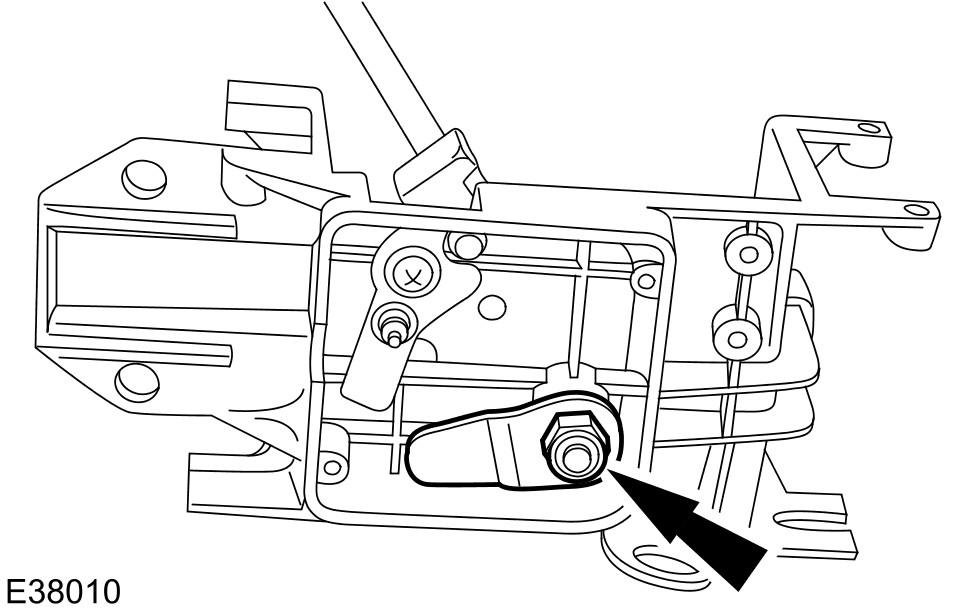

    GJ0002480Courtesy of JAGUAR CARS, INC.
  2. Tighten to 12 Nm.

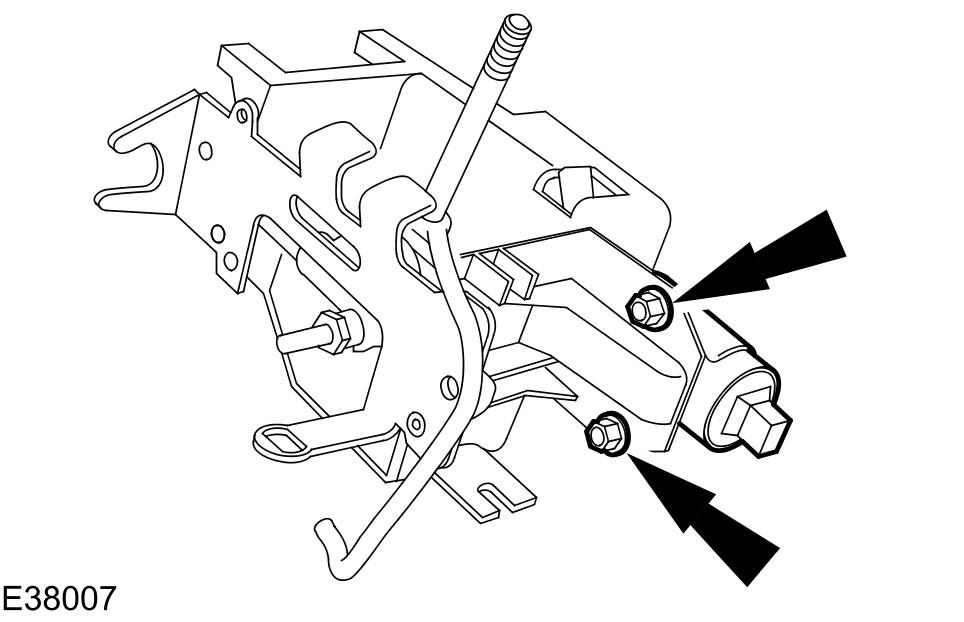

    GJ0002477Courtesy of JAGUAR CARS, INC.
  3. Tighten to 5 Nm.
