Driver Seat Module (DSM) - Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

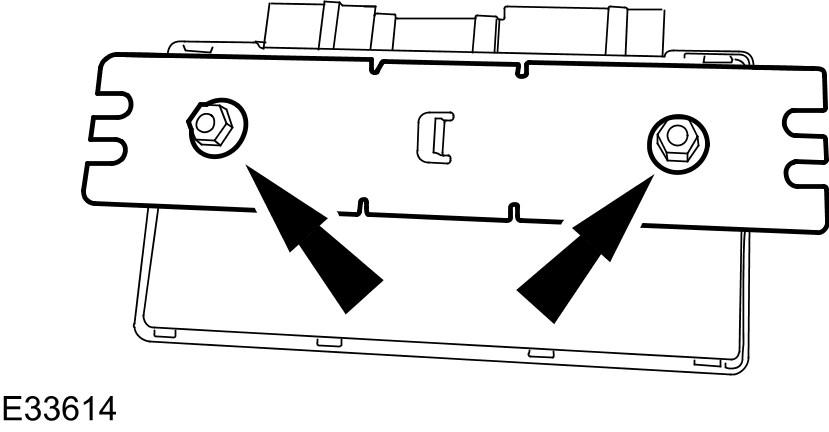

GJ0001695Courtesy of JAGUAR CARS, INC.
  1. To install, reverse the removal procedure.
    • Tighten to 7 Nm.

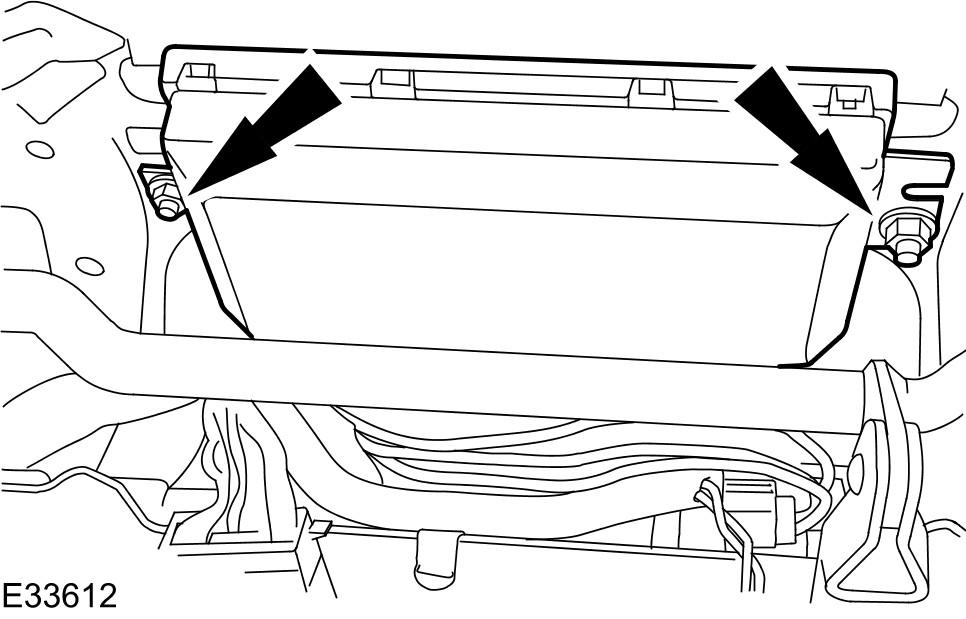

    GJ0001693Courtesy of JAGUAR CARS, INC.
  2. Tighten to 4 Nm.
  3. Carry out the battery reconnection procedure. Refer to Battery, Mounting and Cables article.
