ABS / Traction Control Module Connector End View

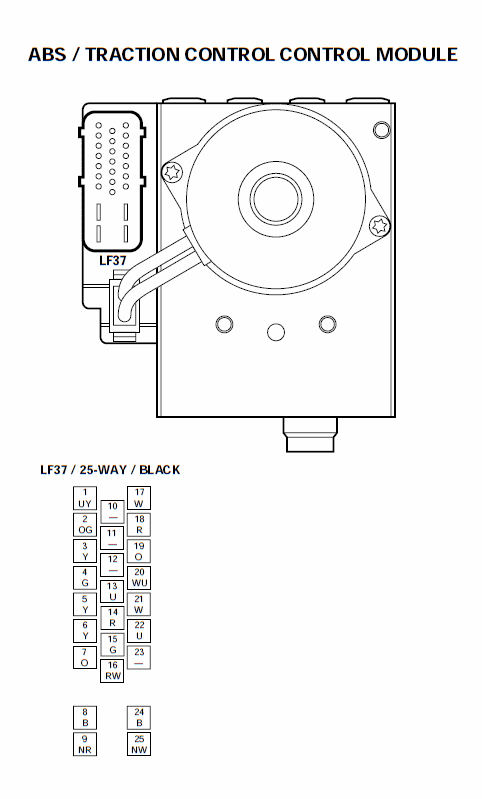

Fig 1: ABS / Traction Control Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
