Transmission Fluid Temperature Sensor

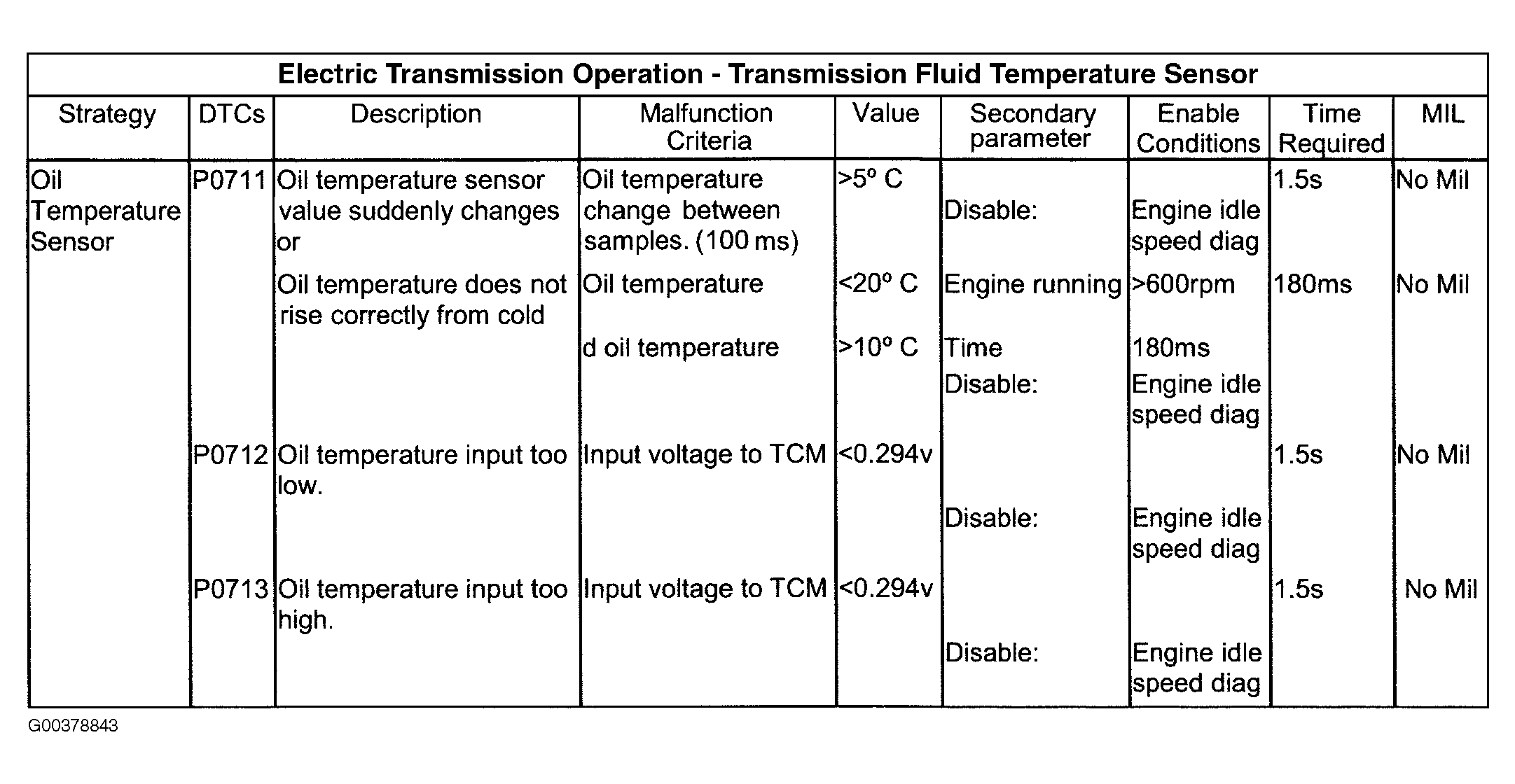

Fig 1: Transmission Fluid Temperature Sensor Table
Courtesy of JAGUAR CARS, INC.
