System Specifications

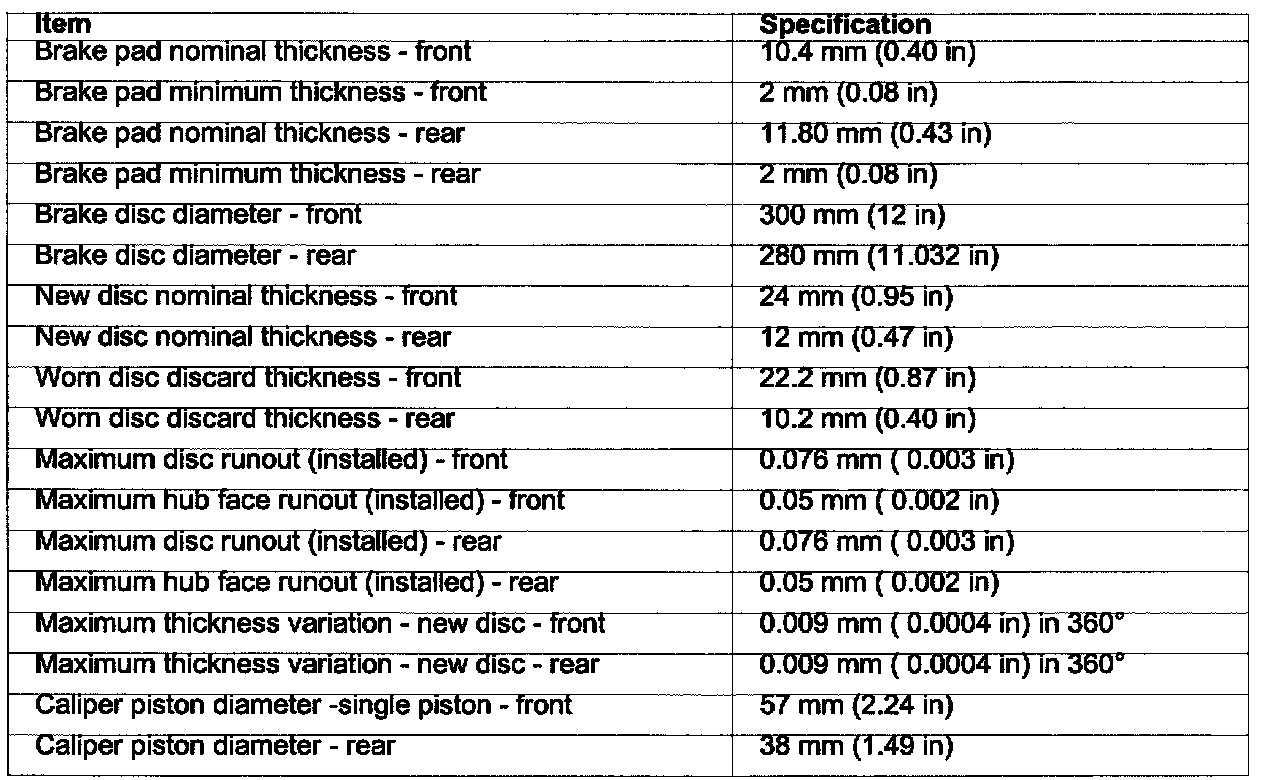

Brake Lining and Disc Specifications





Front Disc Brake Torque Specifications





Rear Disc Brake Torque Specifications





Parking Brake and Actuation Torque Specifications





Hydraulic Brake Actuation Torque Specifications





Power brake Actuation Torque Specifications





Anti-Lock Control Torque Specifications
