Ignition System
Ignition System

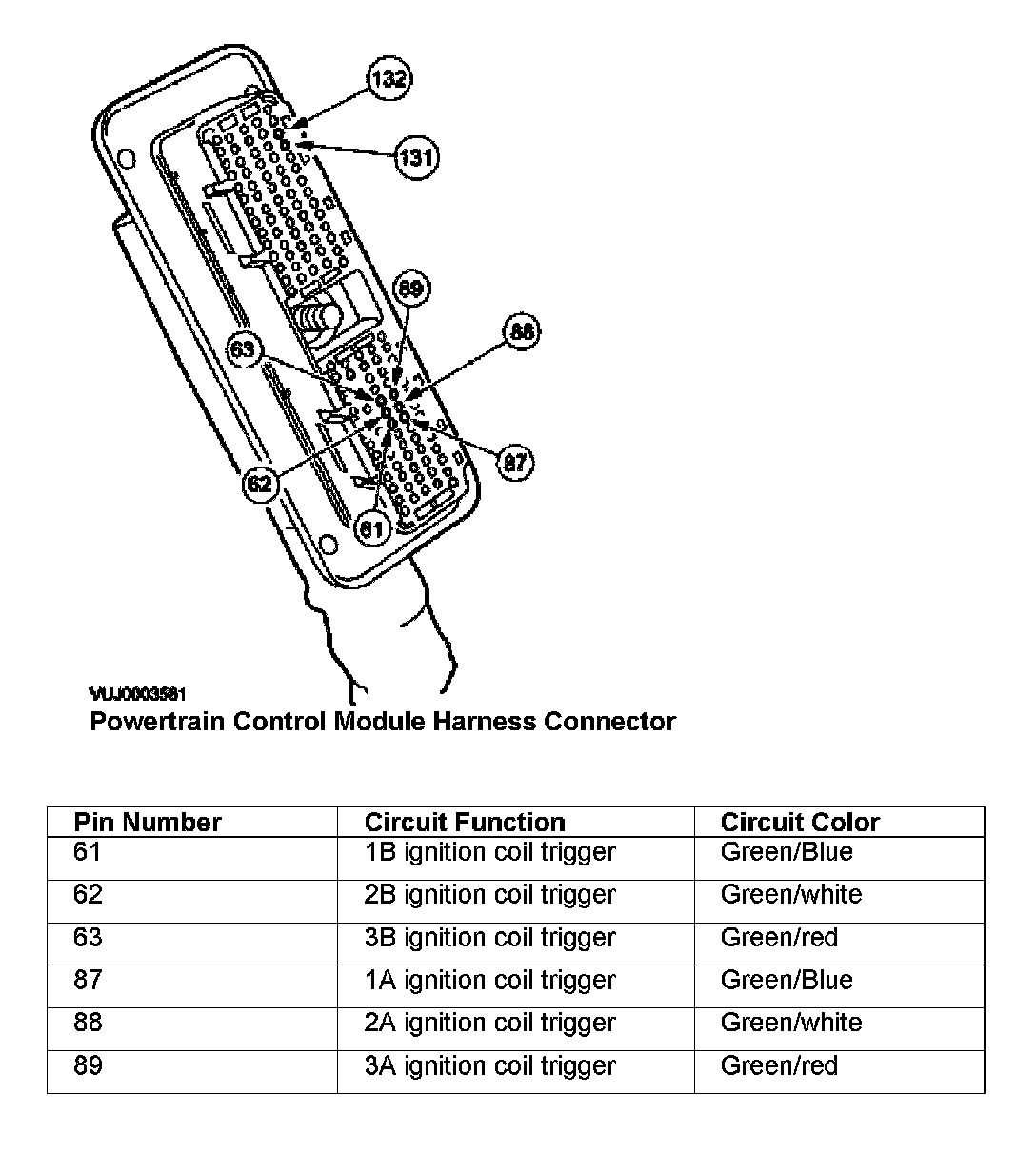

Powertrain Control Module Harness Connector:

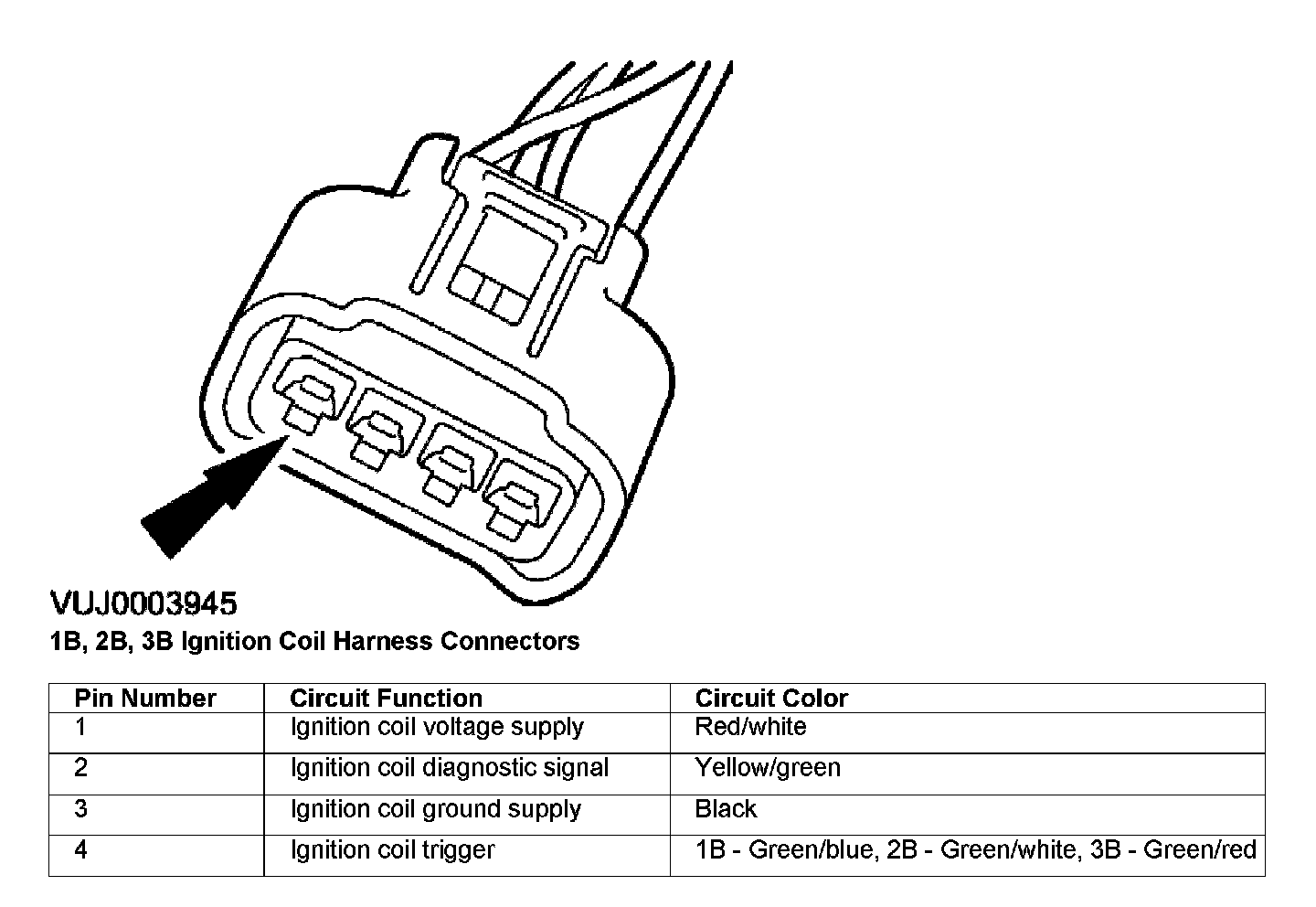

1B, 2B, 3B Ignition Coil Harness Connectors:

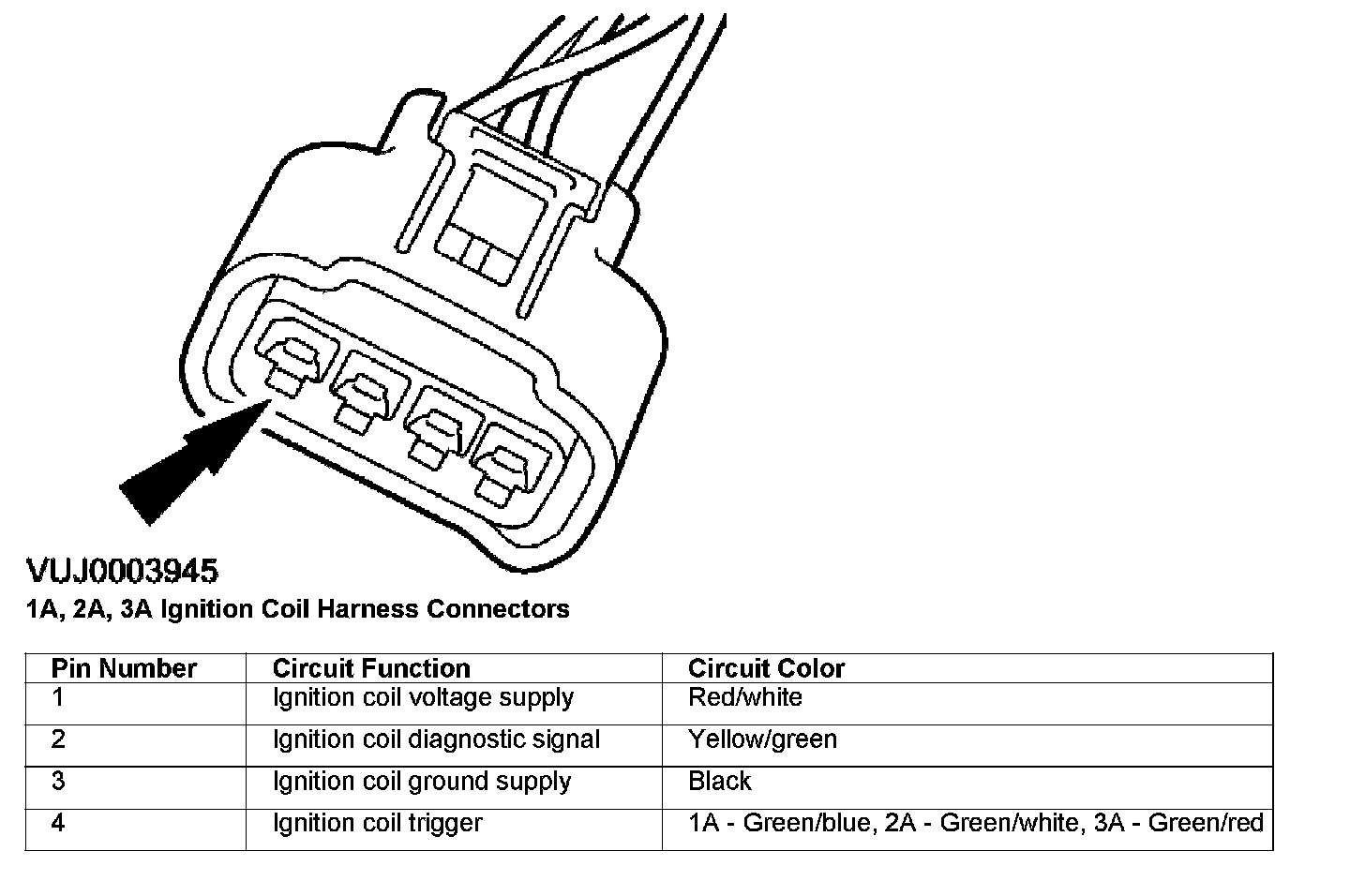

1A, 2A, 3A, 1B, 2B, 3B Ignition Coils:
