General Module: Service and Repair

Removal

CAUTION: Prior to removal of the module, it is necessary to upload module configuration information to the approved Jaguar diagnostic system. This information needs to be downloaded into the new module once installed.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

1. Disconnect the battery ground cable. Service and Repair

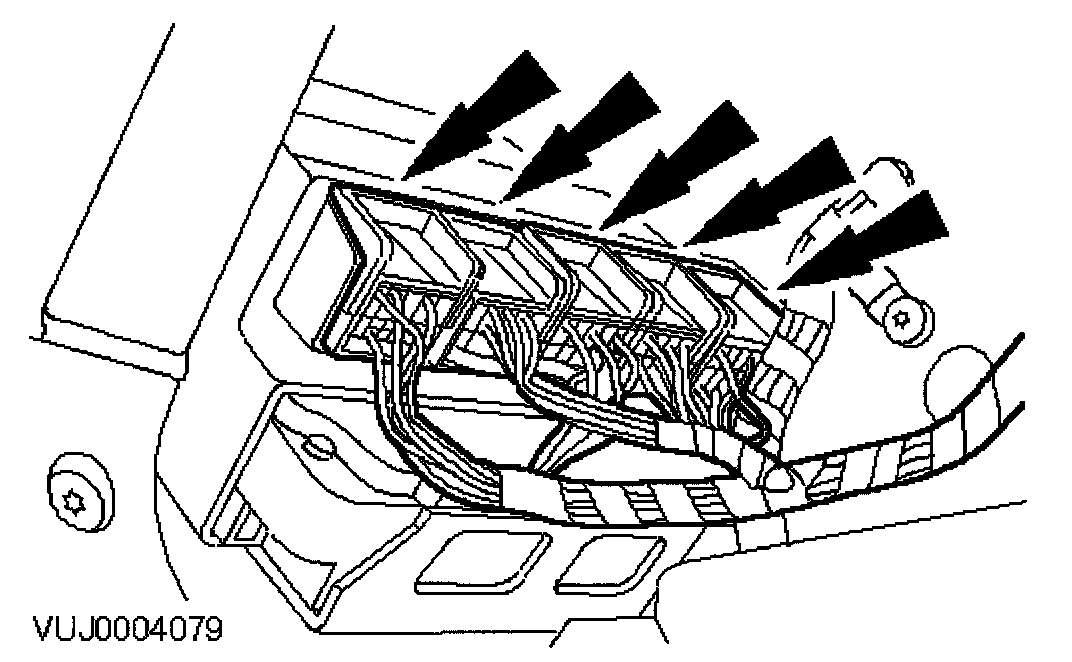

2. Disconnect the generic electronic module (GEM) electrical connectors.

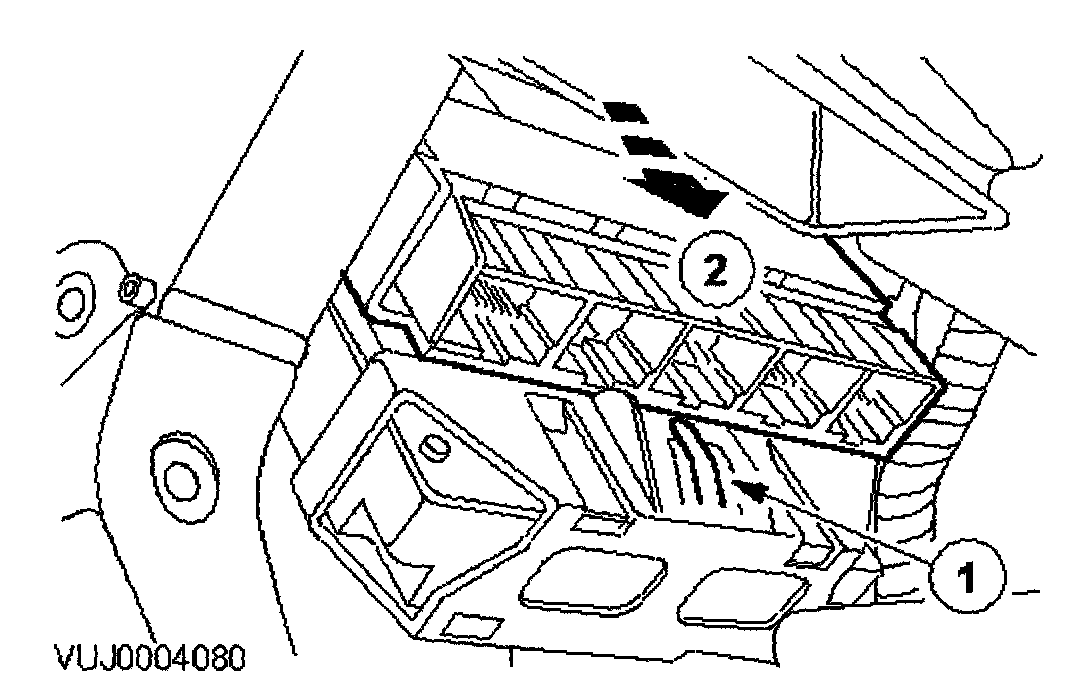

3. Remove the GEM.
1. Press the tang.
2. Remove the GEM


Installation
1. To install, reverse the removal procedure.
