Torque Specifications

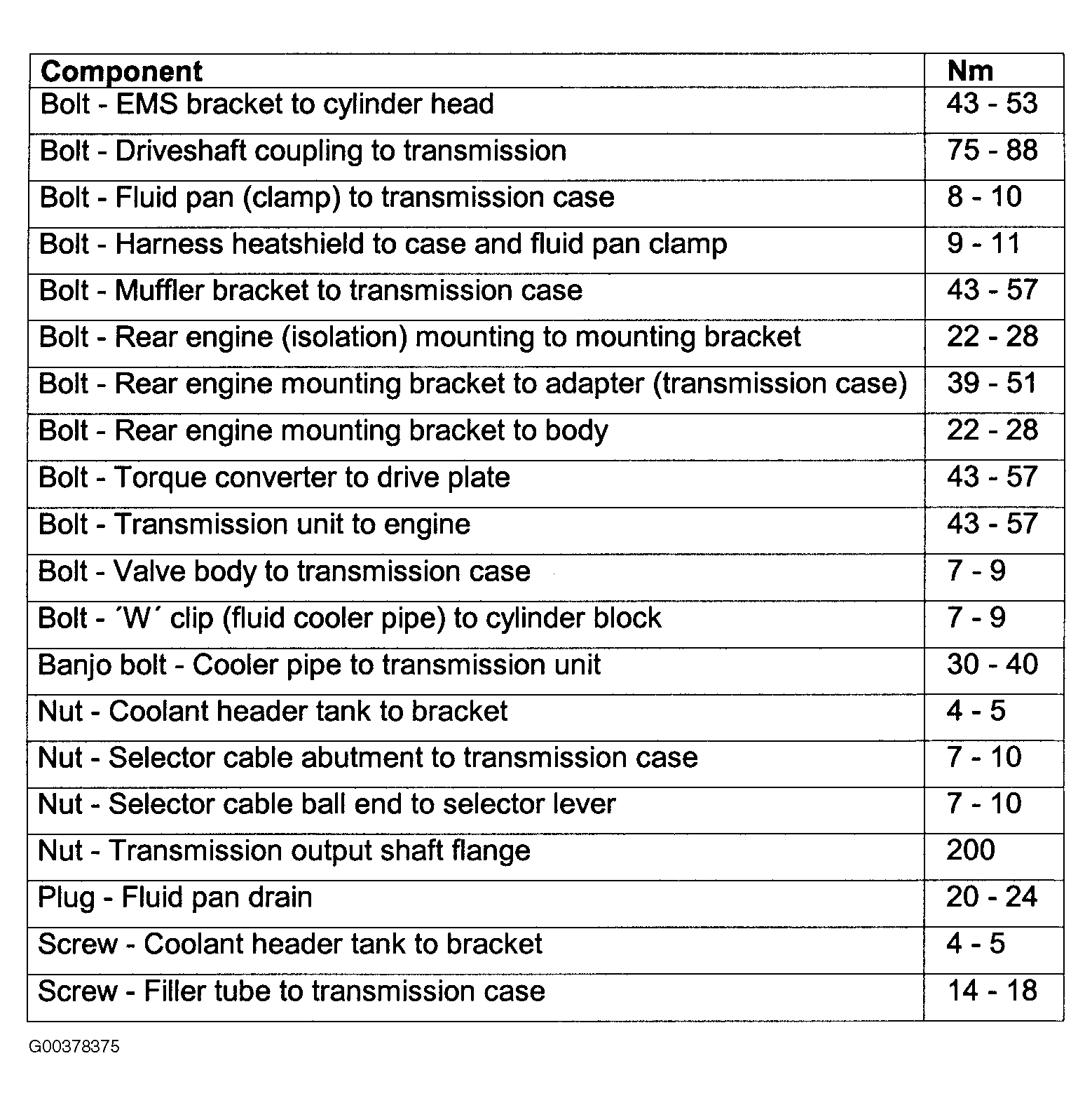

Fig 1: Torque Specification Table (Supercharged Vehicles)
Courtesy of JAGUAR CARS, INC.
