Navigation System Compact Disc (CD) Unit: Removal

  1. Remove battery cover and disconnect ground lead from battery terminal. Refer to BATTERY GROUND CABLE .
  2. Remove trunk RH side liner.
  3. Disconnect three connectors from side of amplifier unit (premium audio only).

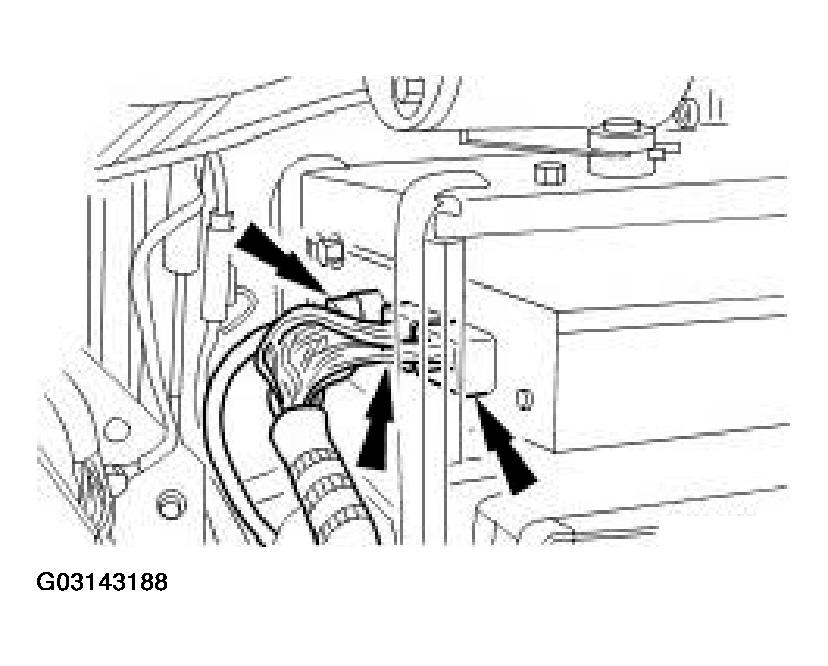

    Fig 1: Disconnecting Amplifier Connectors
    G03143188
  4. Remove four bolts securing audio/DVD reader module stack to mounting frame.

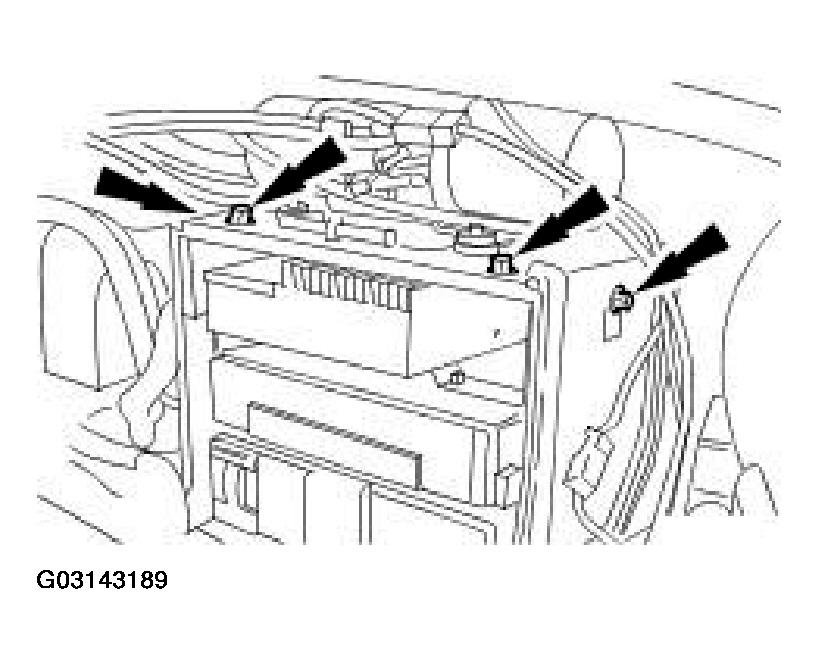

    Fig 2: Removing Audio/DVD Reader Module Stack Bolts
    G03143189
  5. Carefully withdraw audio/DVD reader module stack and disconnect four connectors from rear of DVD reader module

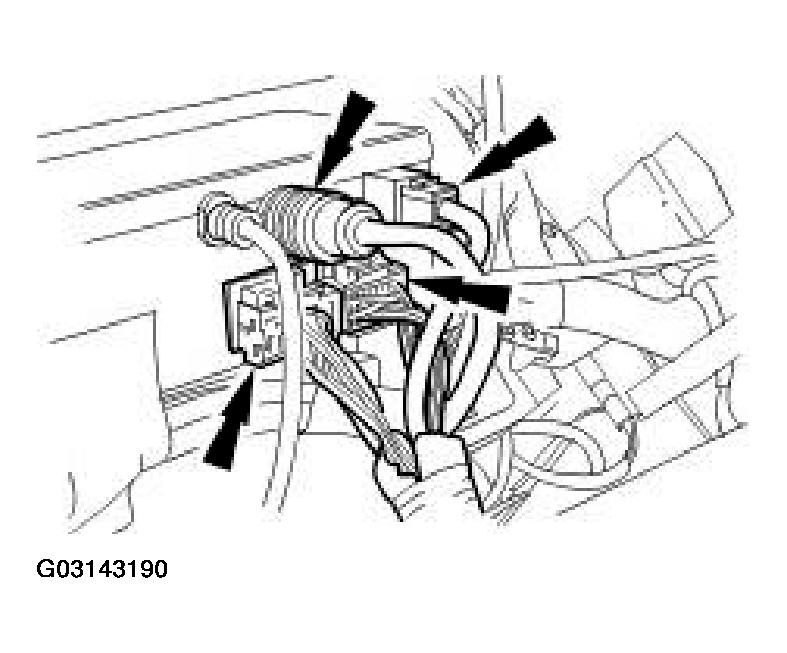

    Fig 3: Disconnecting DVD Reader Module Connectors
    G03143190
  6. Remove audio/DVD reader module stack from trunk.
  7. Remove four DVD reader module to mounting bracket screws and withdraw module from bracket.

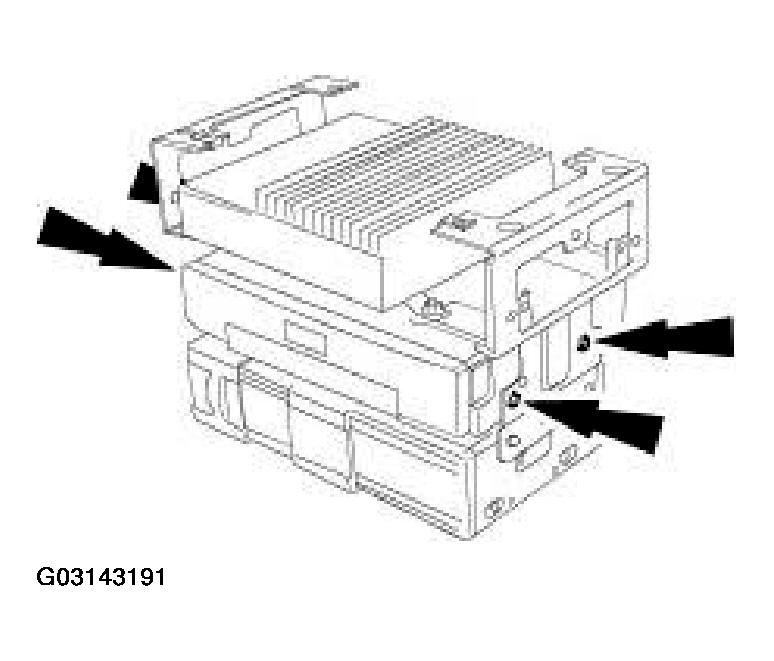

    Fig 4: Removing DVD Reader Module From Module Stack
    G03143191
