Control Module Malfunctions

The diagnostic detects malfunctions in the TCM ignition switched supply by measuring the system voltage. A fault is logged if the voltage is either too high or too low. The voltage is measured at the TCM.

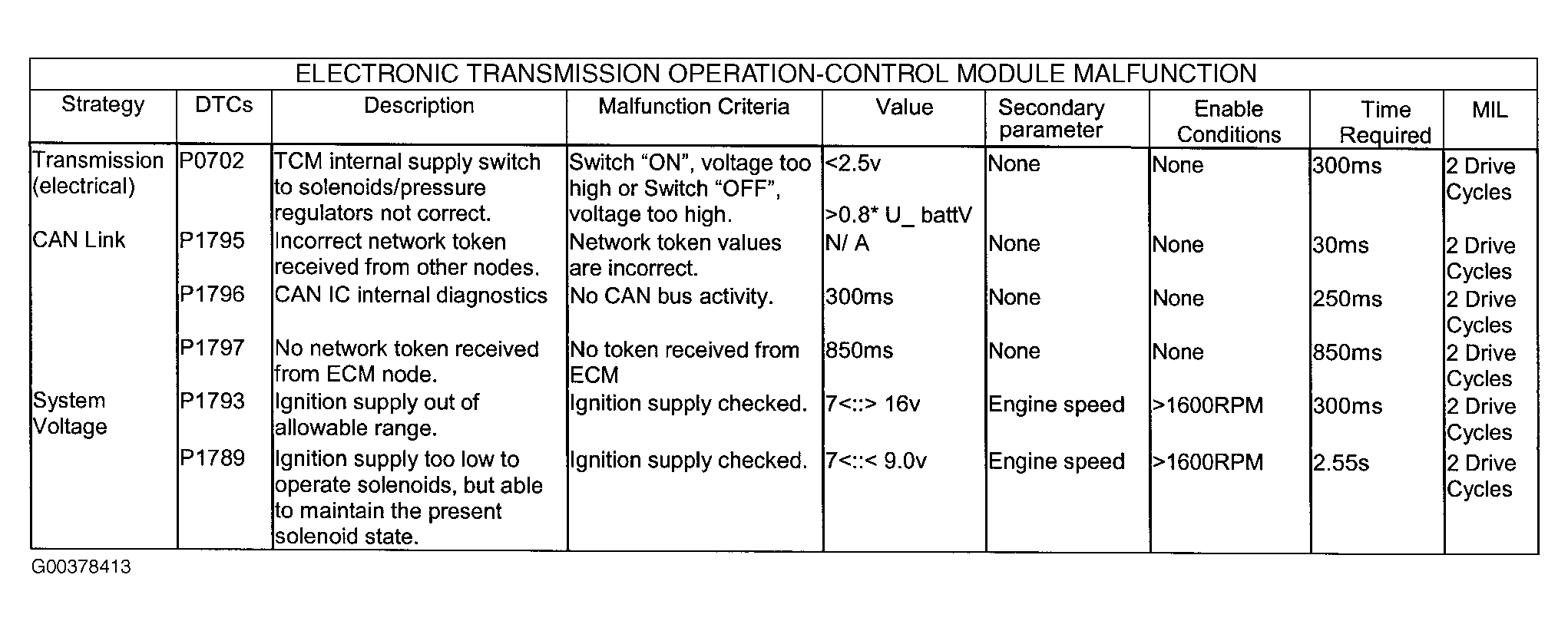

Fig 1: Control Module Malfunctions Table (1 Of 2)

Courtesy of JAGUAR CARS, INC.

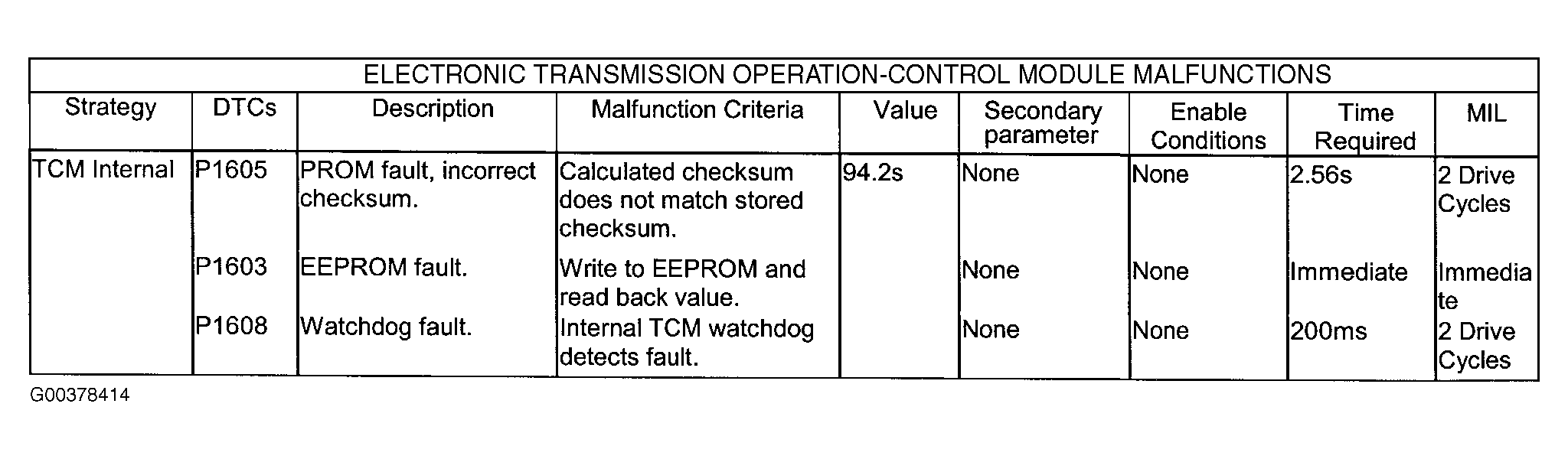

Fig 2: Control Module Malfunctions Table (2 Of 2)

Courtesy of JAGUAR CARS, INC.
