Description and operation: Notes
WARNING: This page is about a different car, the 2001 Jaguar XKR and 2001 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

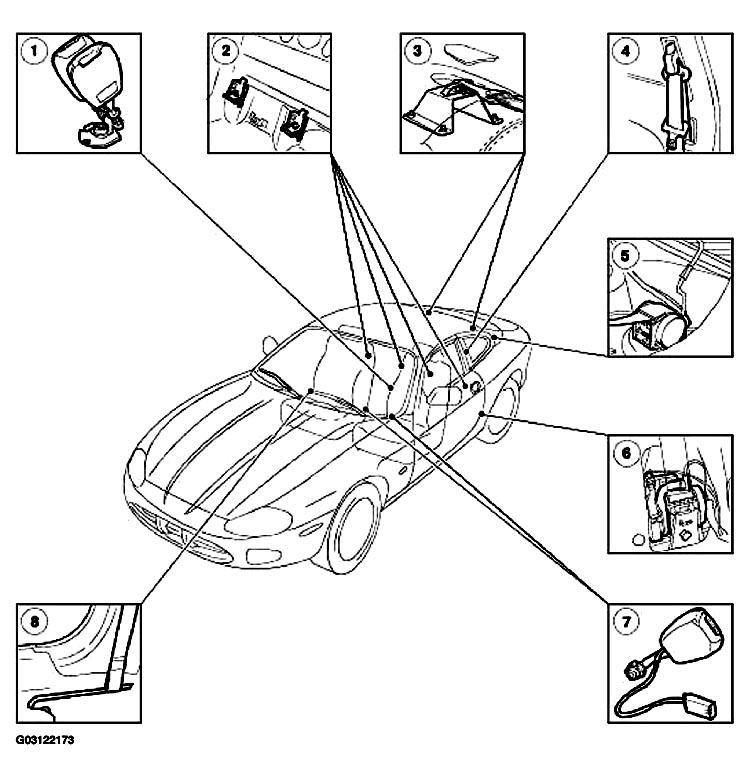

SAFETY BELT SYSTEM COMPONENTS
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Rear center seat belt buckle |
| 2 | - | Child seat lower international standards organization fix (ISOfix) anchors |
| 3 | - | Child seat upper anchor |
| 4 | - | Front seat belt upper anchor (coupe only) |
| 5 | - | Rear seat belt retractor |
| 6 | - | Front seat belt retractor and pretensioner |
| 7 | - | Front seat belt buckle |
| 8 | - | Front seat belt lower anchor |
