Steering Wheel Audio Controls - Removal and Installation: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver airbag module. Refer to Supplemental Restraint System .

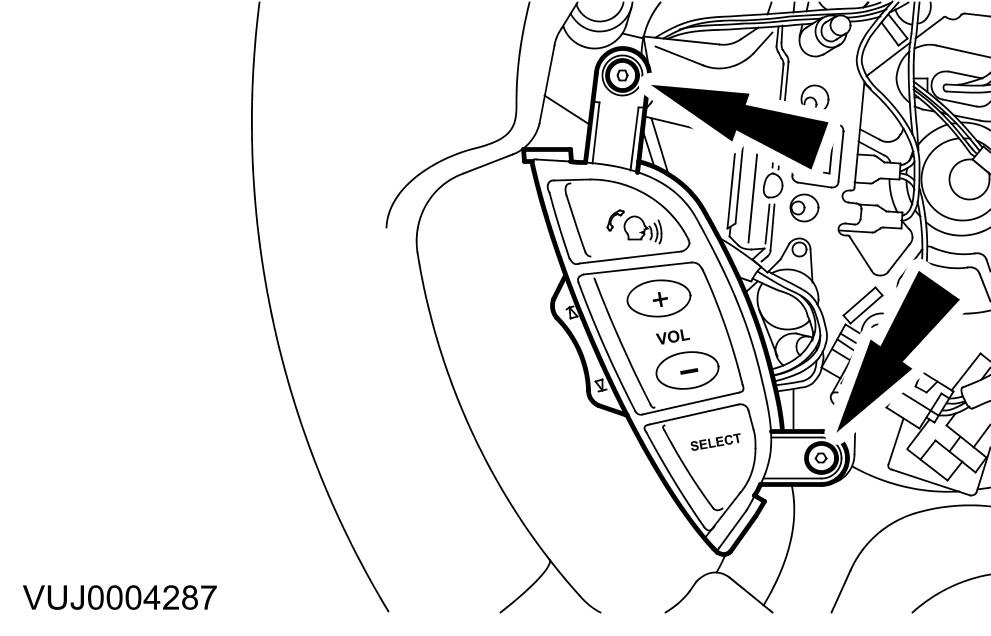

    GJ0005821Courtesy of JAGUAR CARS, INC.
  2. Detach the steering wheel audio controls.

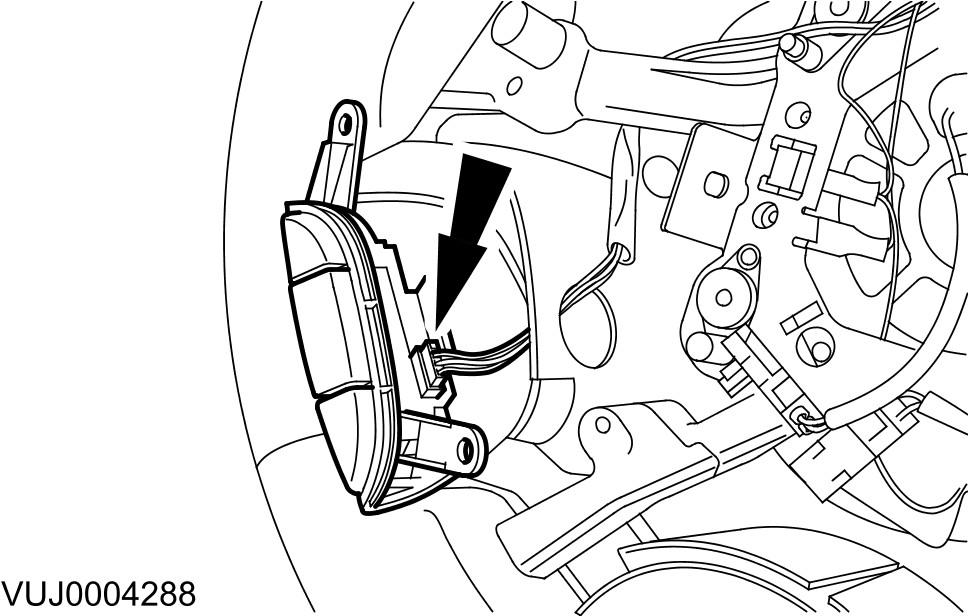

    GJ0005822Courtesy of JAGUAR CARS, INC.
  3. Remove the steering wheel audio controls.
