Catalytic Converter: Service and Repair

Removal
1. Raise and support the vehicle. Service and Repair

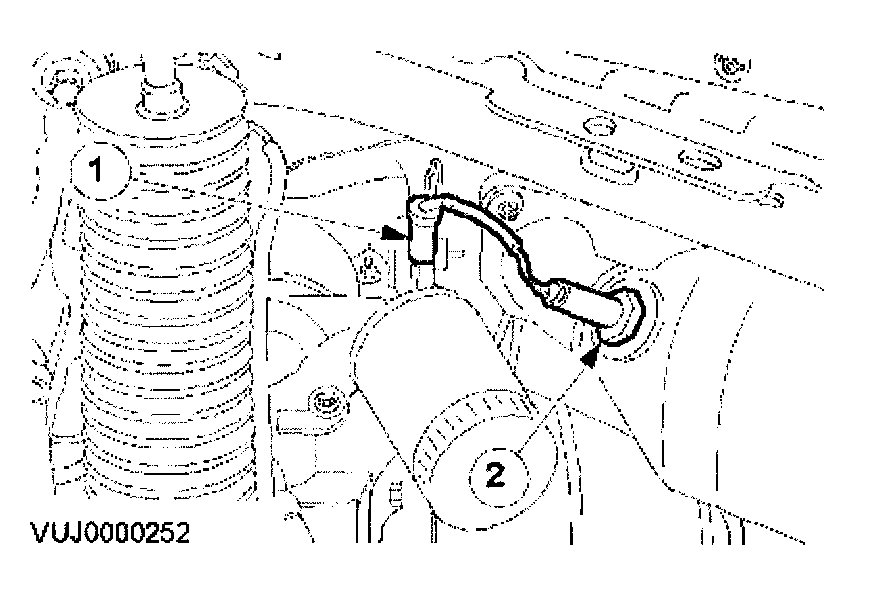

2. Remove the pre-catalytic converter oxygen sensor.
1. Disconnect the oxygen sensor electrical connector.
2. Remove the oxygen sensor.

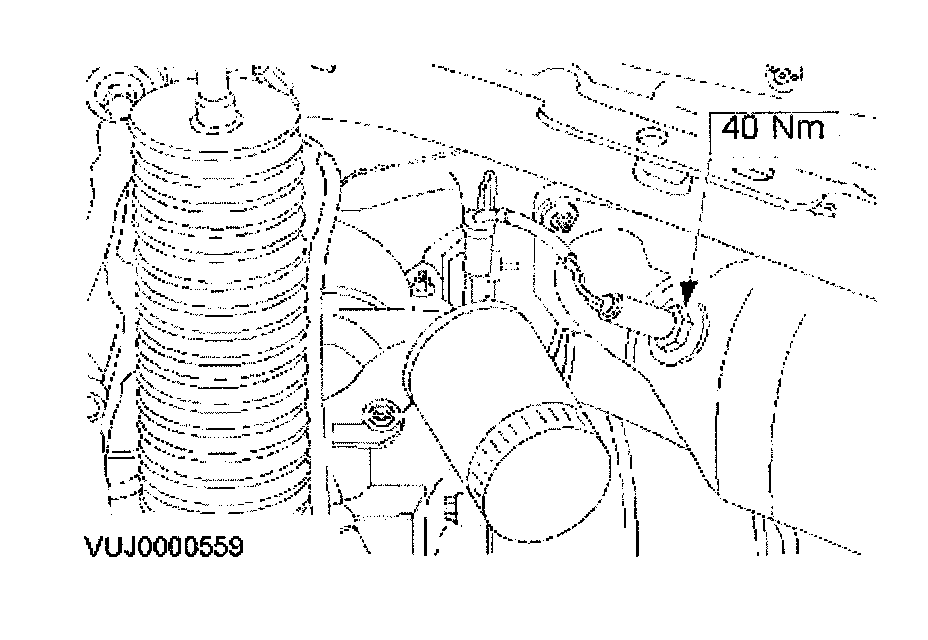

3. Remove the post-catalytic converter oxygen sensor.
1. Disconnect the oxygen sensor electrical connector.
2. Remove the oxygen sensor.

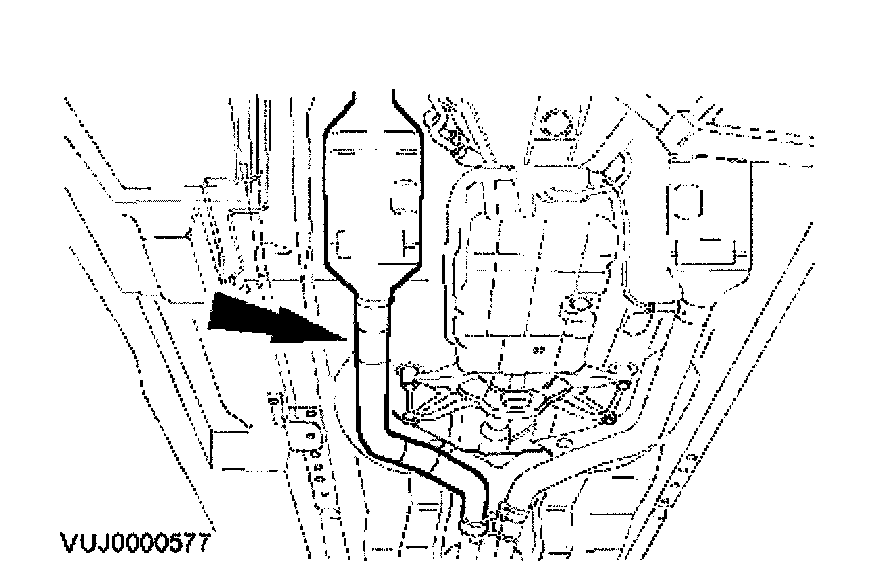

4. Loosen the three way catalytic converter downpipe exhaust clamp.





5. Detach the three way catalytic converter from the exhaust manifold.





6. Remove the three way catalytic converter.


Installation

Exhaust System:

1. To install reverse, the removal procedure.

CAUTION: Never use jointing compound forward of the catalytic converter.
