D3: Check For O2 Sensor Failure
- Run the engine for a period to warm the sensor and then maintain a steady speed of approximately 2500 rpm.

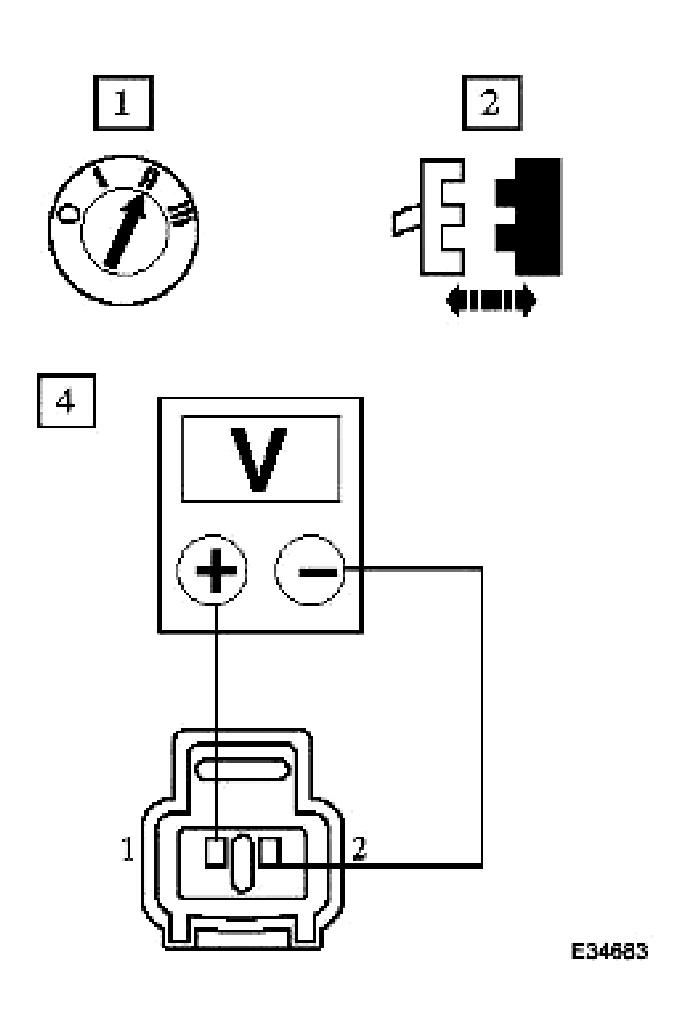

- Measure the voltage between EM022/001 and EM022/002
Courtesy of JAGUAR CARS, INC.
- Is the voltage between 600mV and 1.0 Volt?
Yes
: GO to D4
No
: Renew O2 sensor; reconnect plug(s)
GO to D7
