Fuse Block: Application and ID



Fuse Identification and Location

Panel Location:

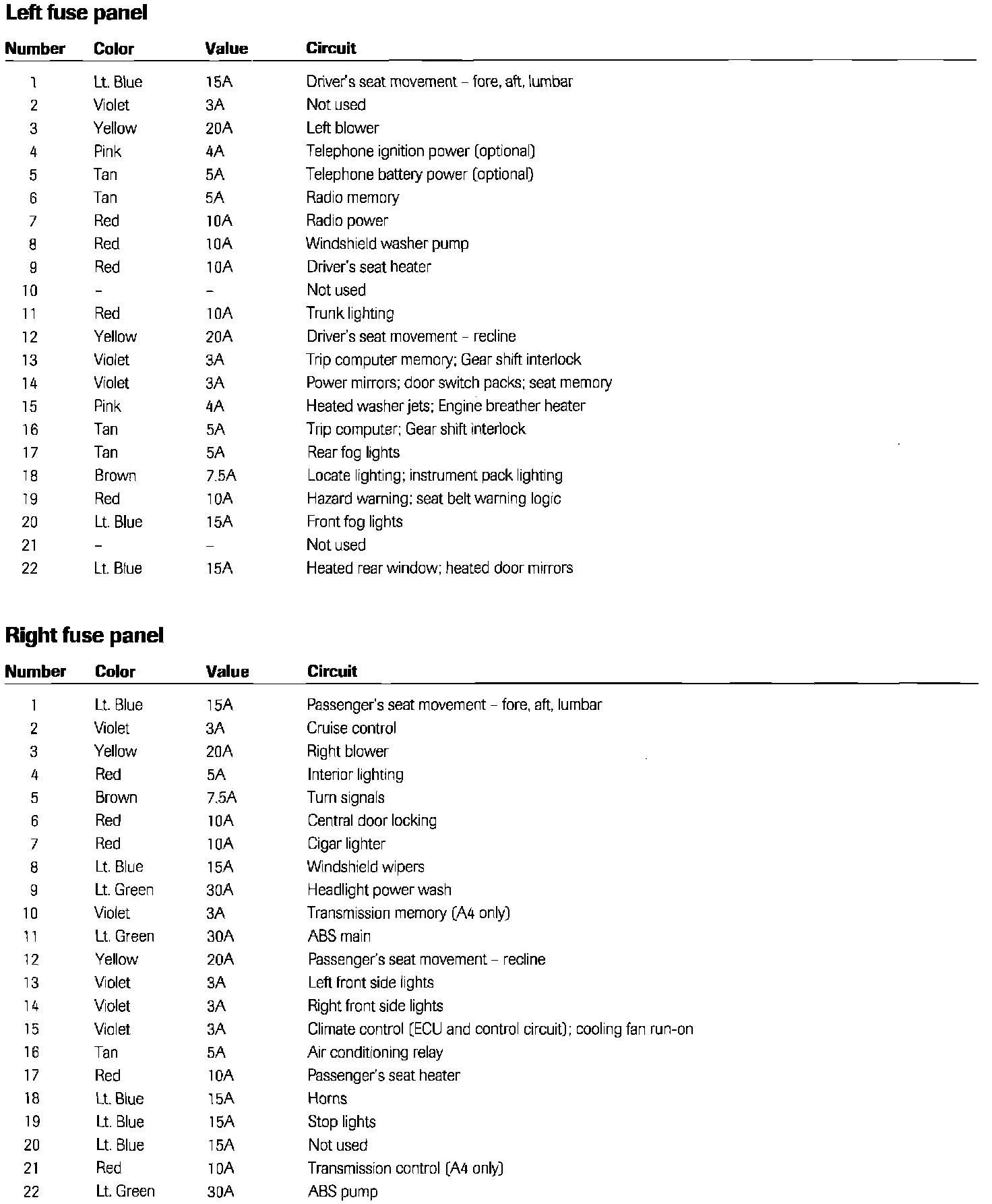

Fuse ID & Location:

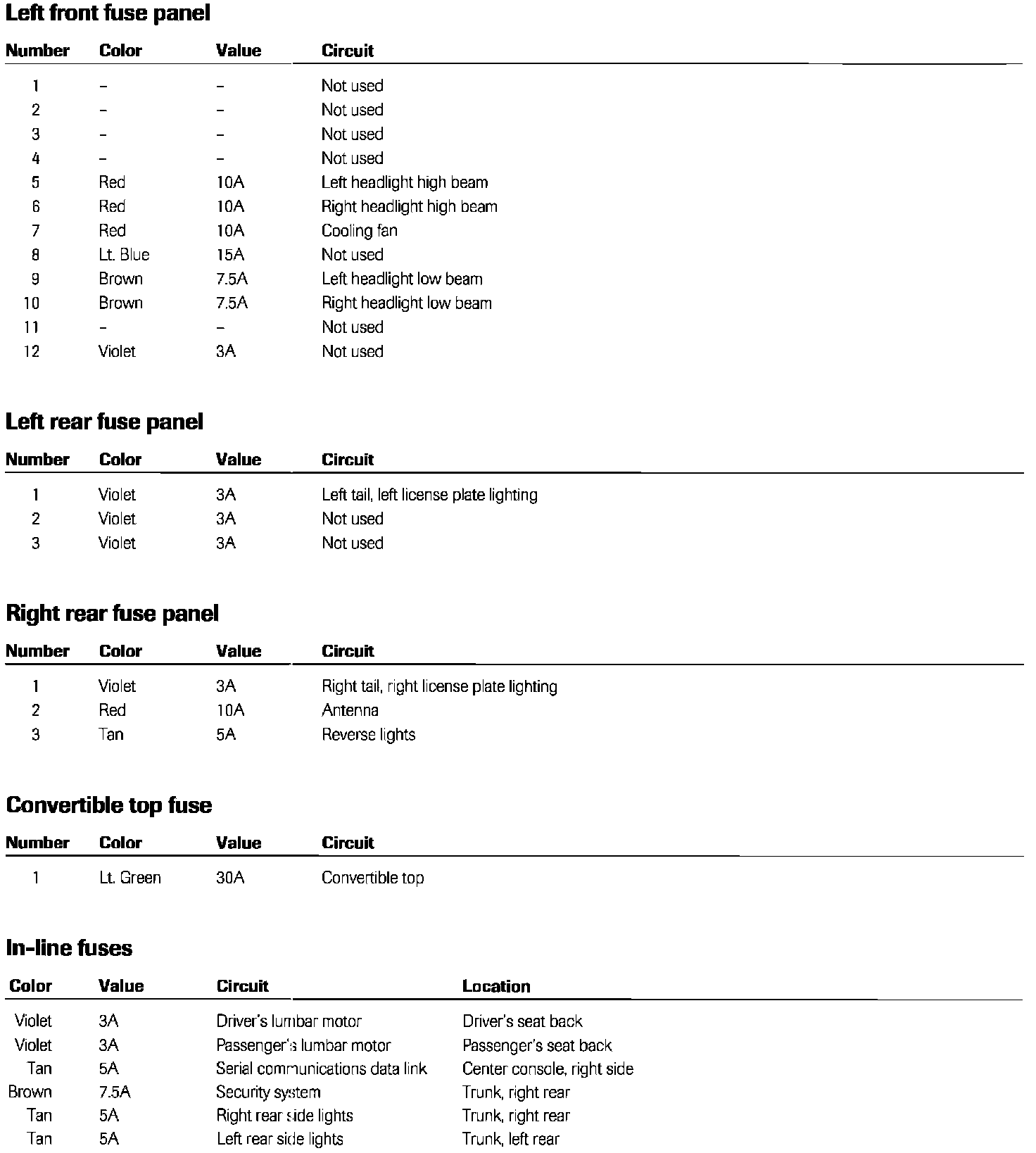

Fuse ID & Location:
