Computers and Control Systems

Ignition ECM Pin Out:





Ignition ECM

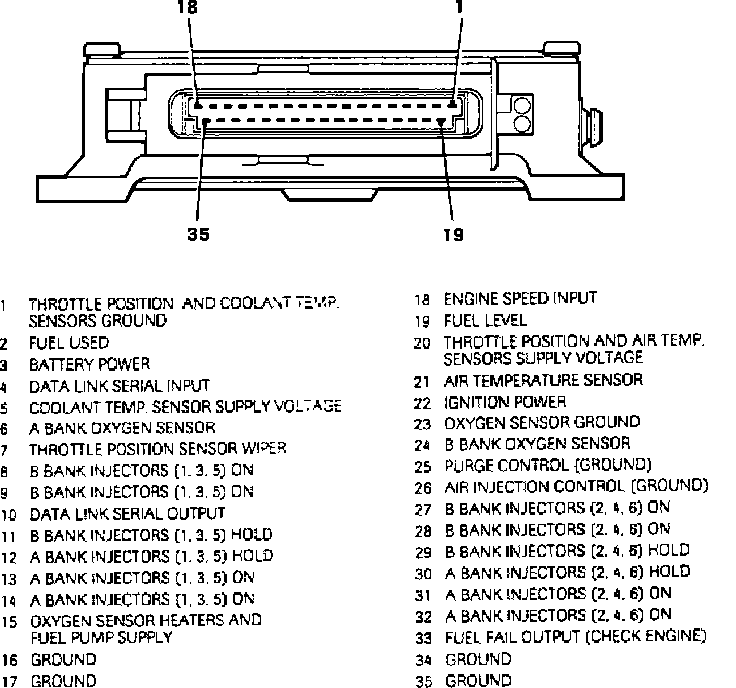

Fuel Injection ECM Pin Out:





Fuel Injection ECM
