Electrical Circuit: Notes

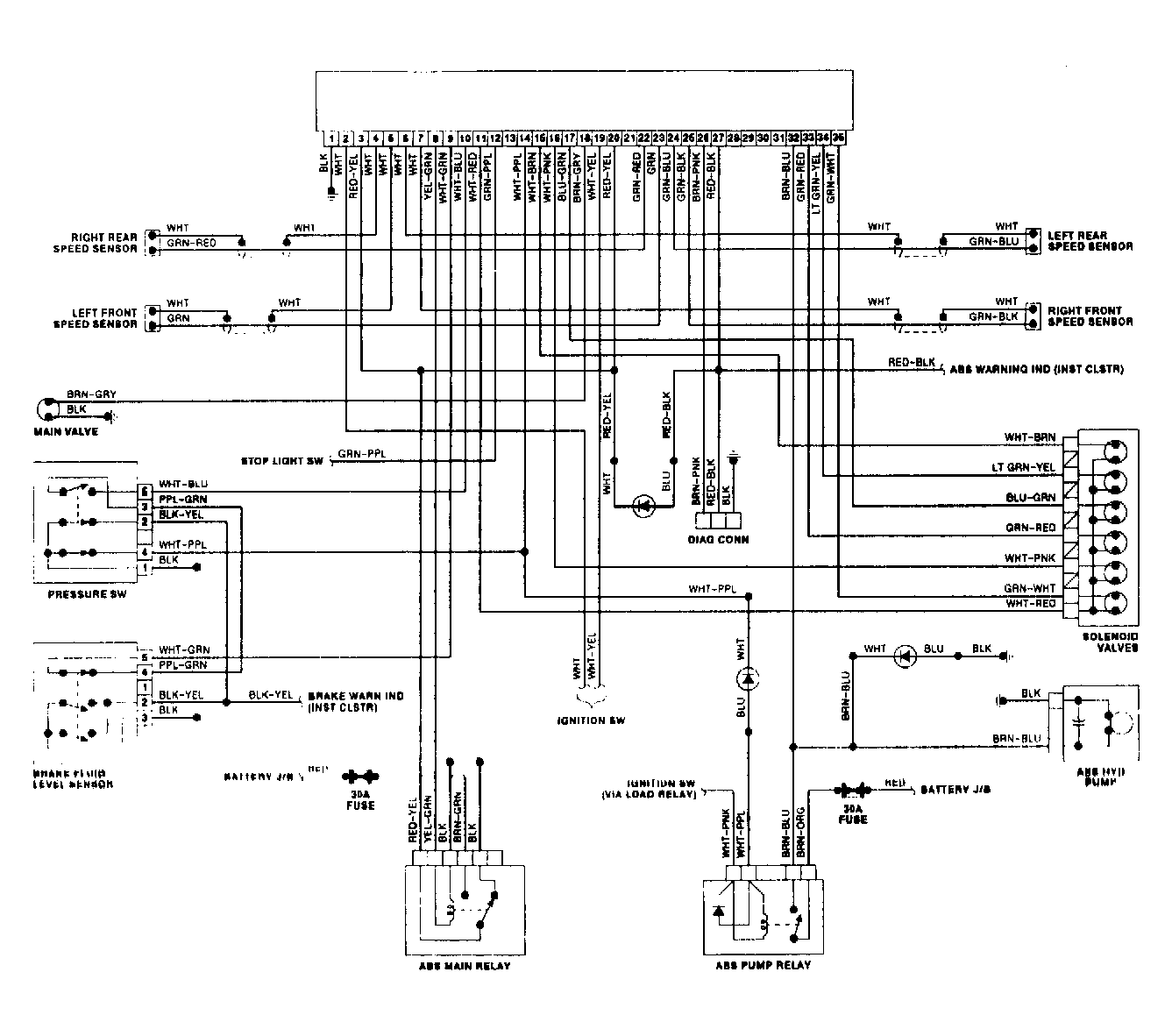

NOTE: The ABS electrical circuit is protected by two, 30-amp fuses which receive direct battery voltage. The system is switched on by the ignition switch via the ECU. See Figure under WIRING DIAGRAM in this article.
