"Static-Dynamic" verses "Dynamic-Dynamic"

During ABS operation, bot the front and rear hydraulic brake circuits are dynamic as the front brakes are also operated directly by boost pressure.

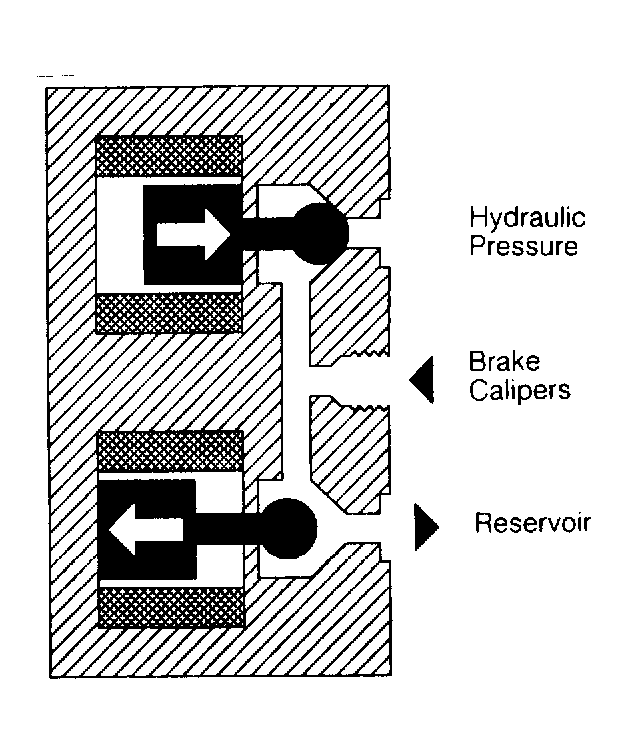

Fig 1: Solenoid Valve During Normal Operation

Courtesy of JAGUAR CARS, INC.

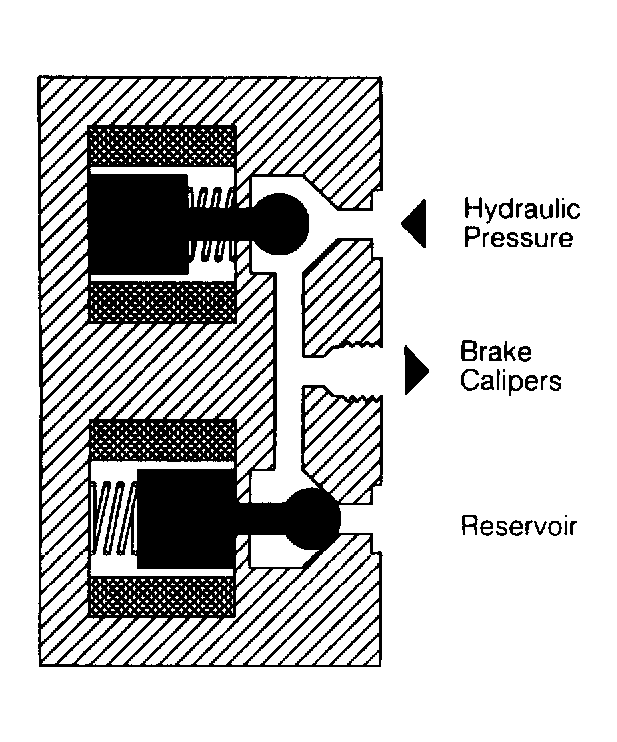

Fig 2: Phase 1 Solenoid Valve Action (Pressure Holds)

Courtesy of JAGUAR CARS, INC.

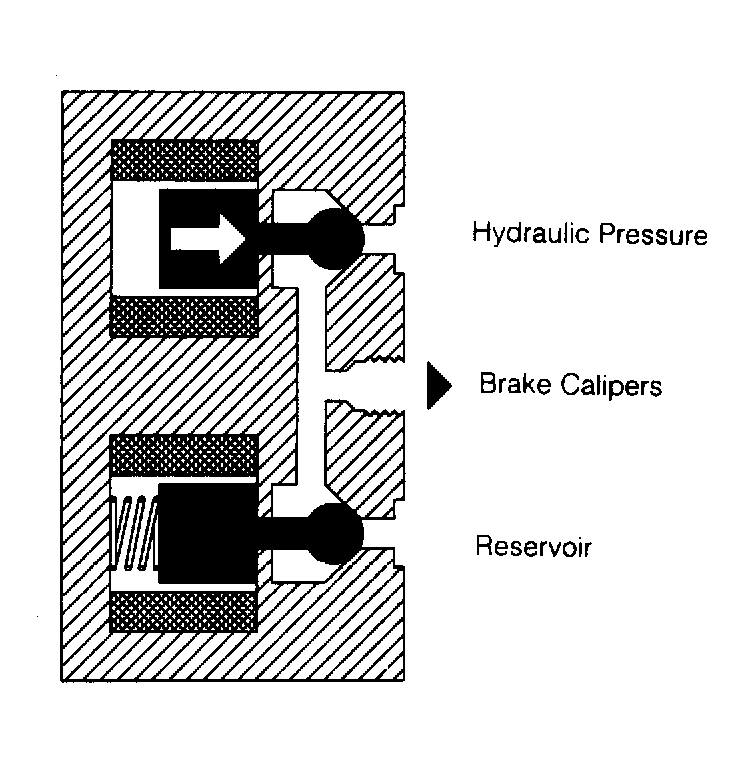

Fig 3: Phase 2 Solenoid Valve Action (Pressure Decreases)

Courtesy of JAGUAR CARS, INC.

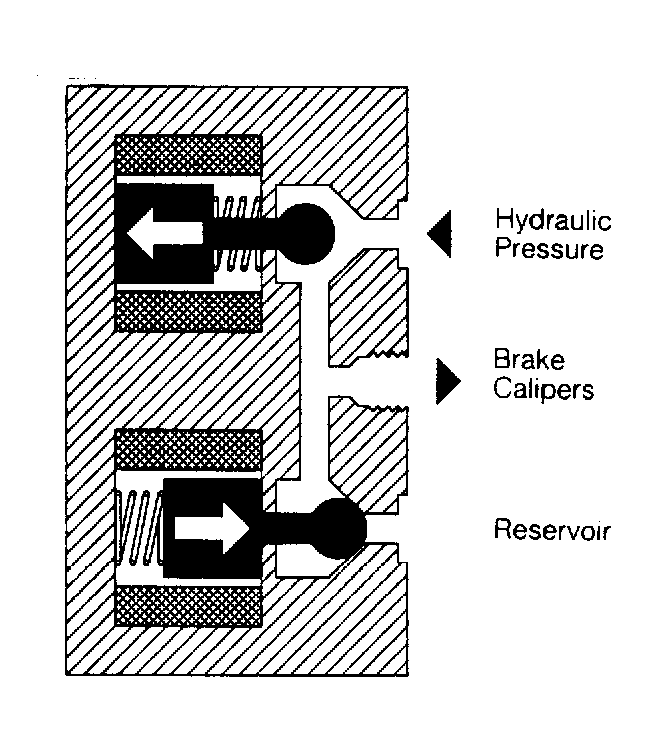

Fig 4: Phase 3 Solenoid Valve Action (Pressure Increases)

Courtesy of JAGUAR CARS, INC.
