Clearance and Design Specifications

Transmission Specifications

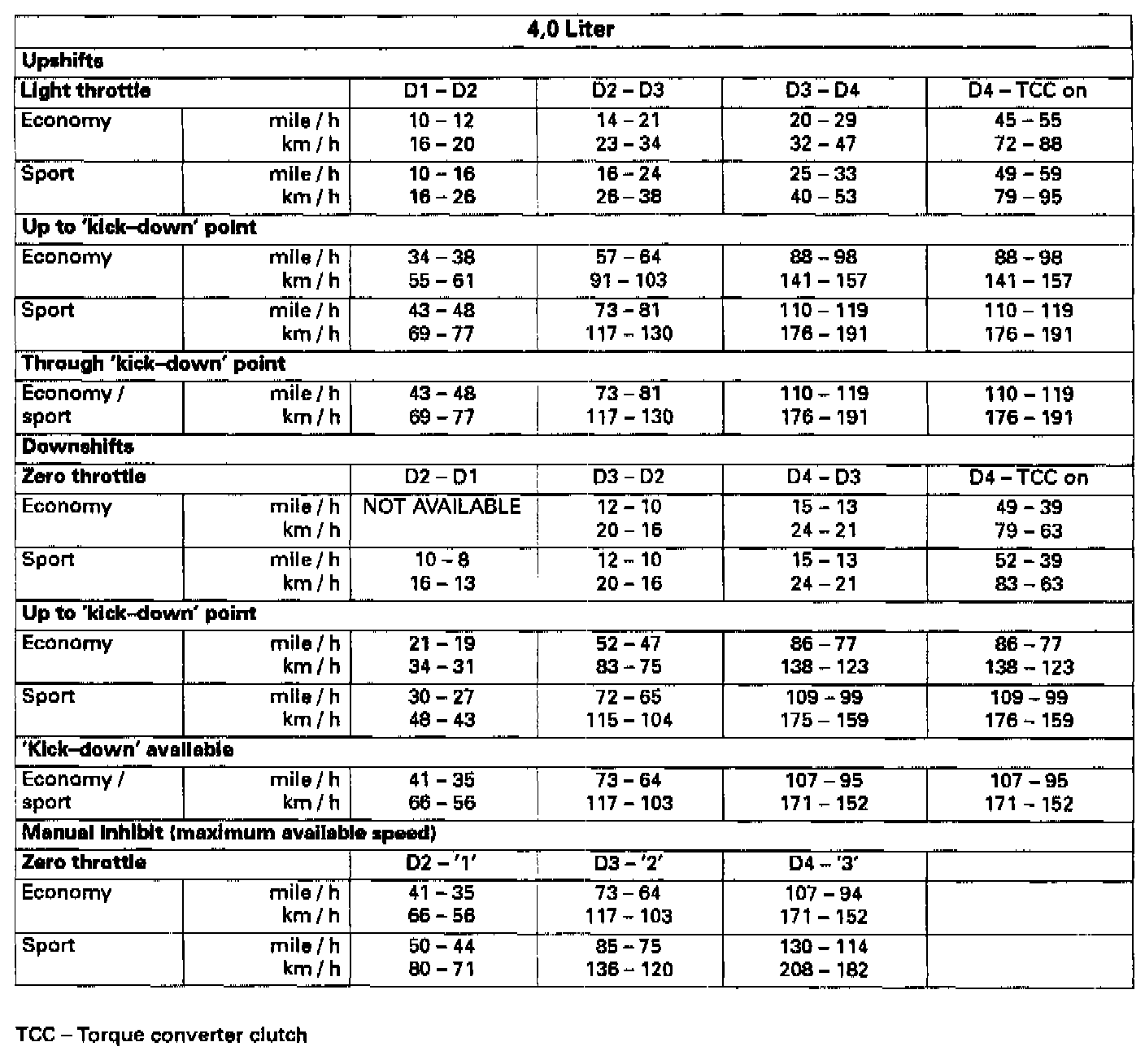

Shift Points for 1994-1997 vehicles with AJ16 4,0L Engine

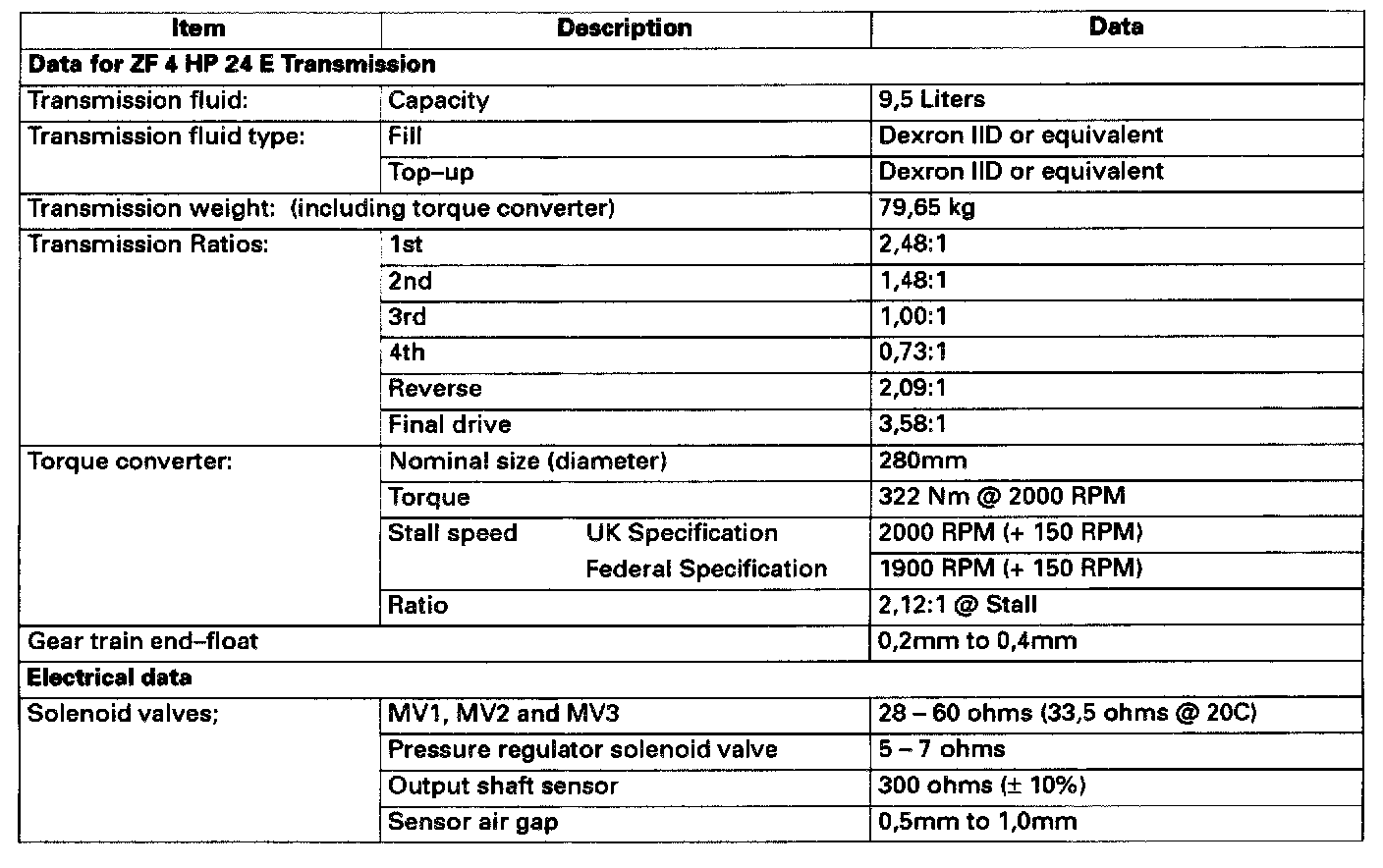

Transmission Specifications 4.0:





Transmission Description:

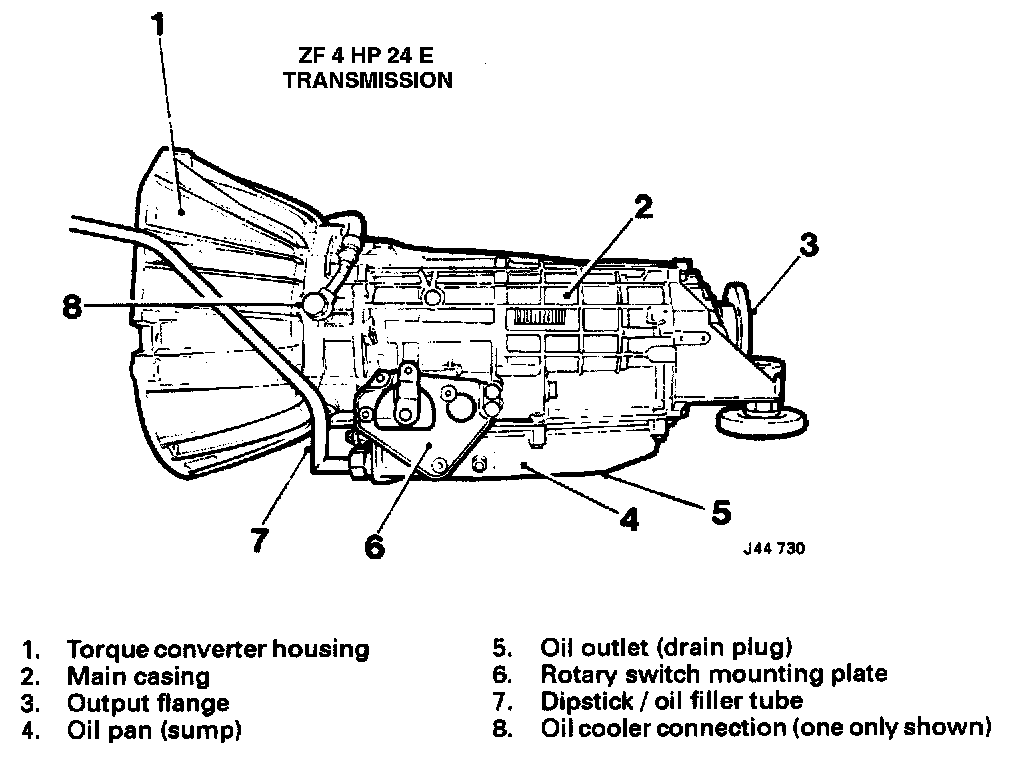

Transmission Overview:
