Vacuum Advance Control Solenoid: Service and Repair

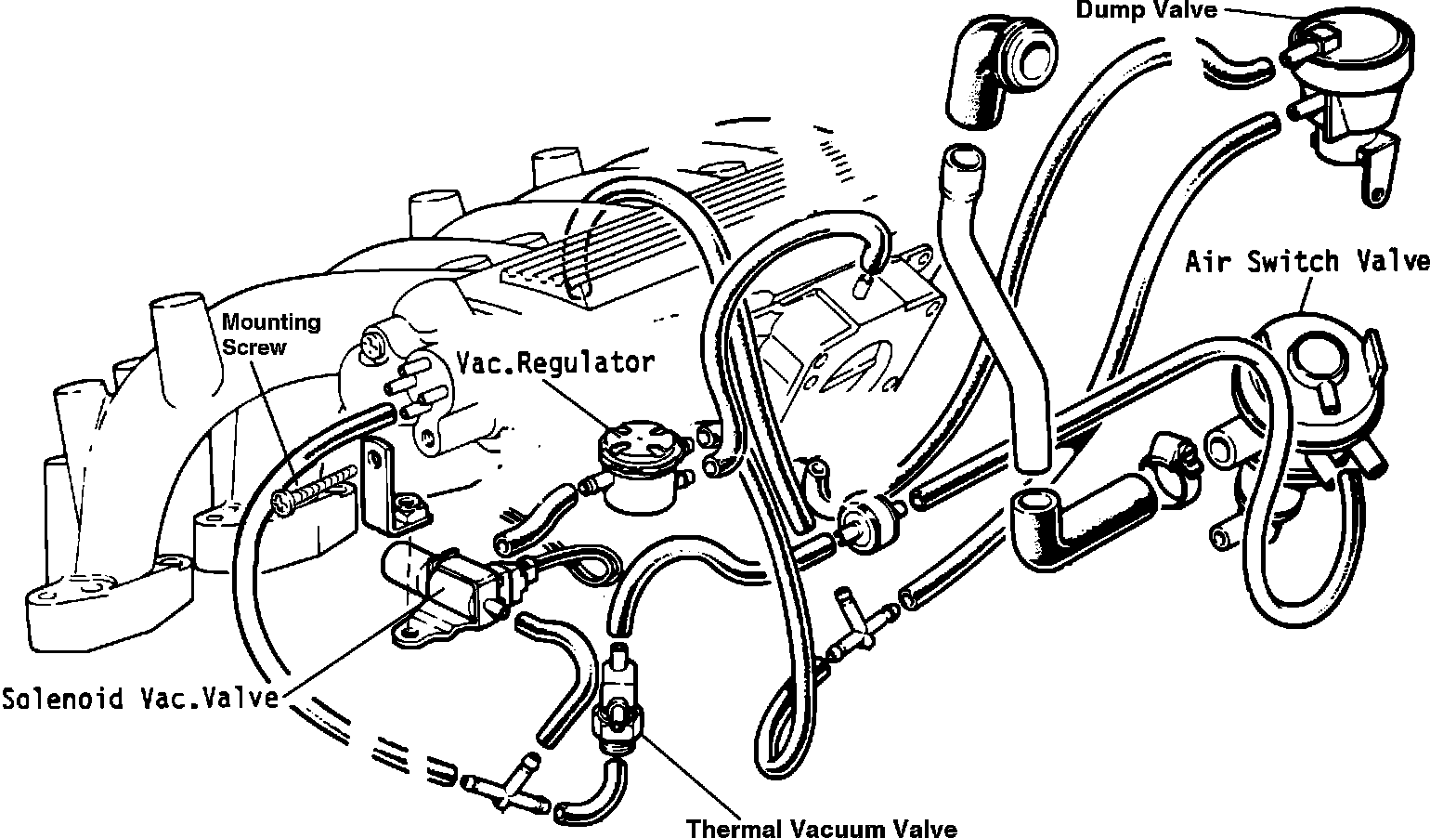

Vacuum Lines:
1. Disconnect wiring and vacuum hoses from valve.
2. Remove Torx head screw securing valve to manifold.
3. Remove valve.
1. Disconnect wiring and vacuum hoses from valve.
2. Remove Torx head screw securing valve to manifold.
3. Remove valve.
