Cooling System
COOLING SYSTEM
TORQUE FIGURES

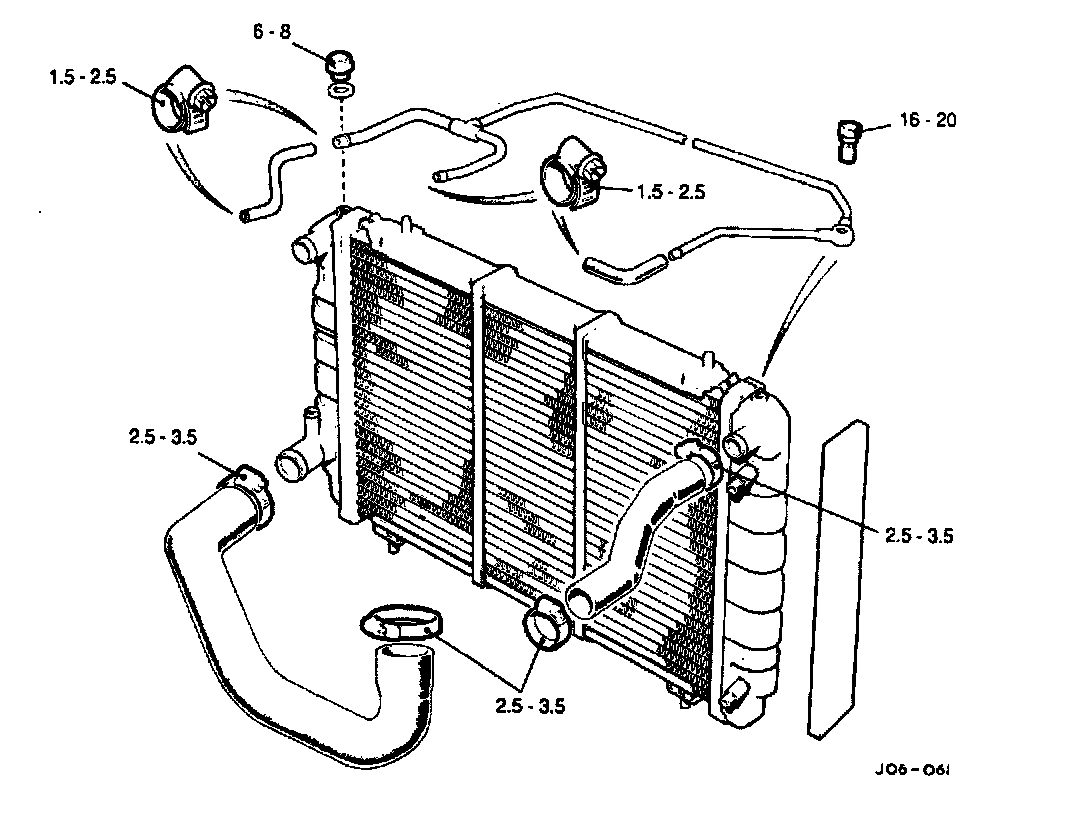

Radiator Torque Figures:

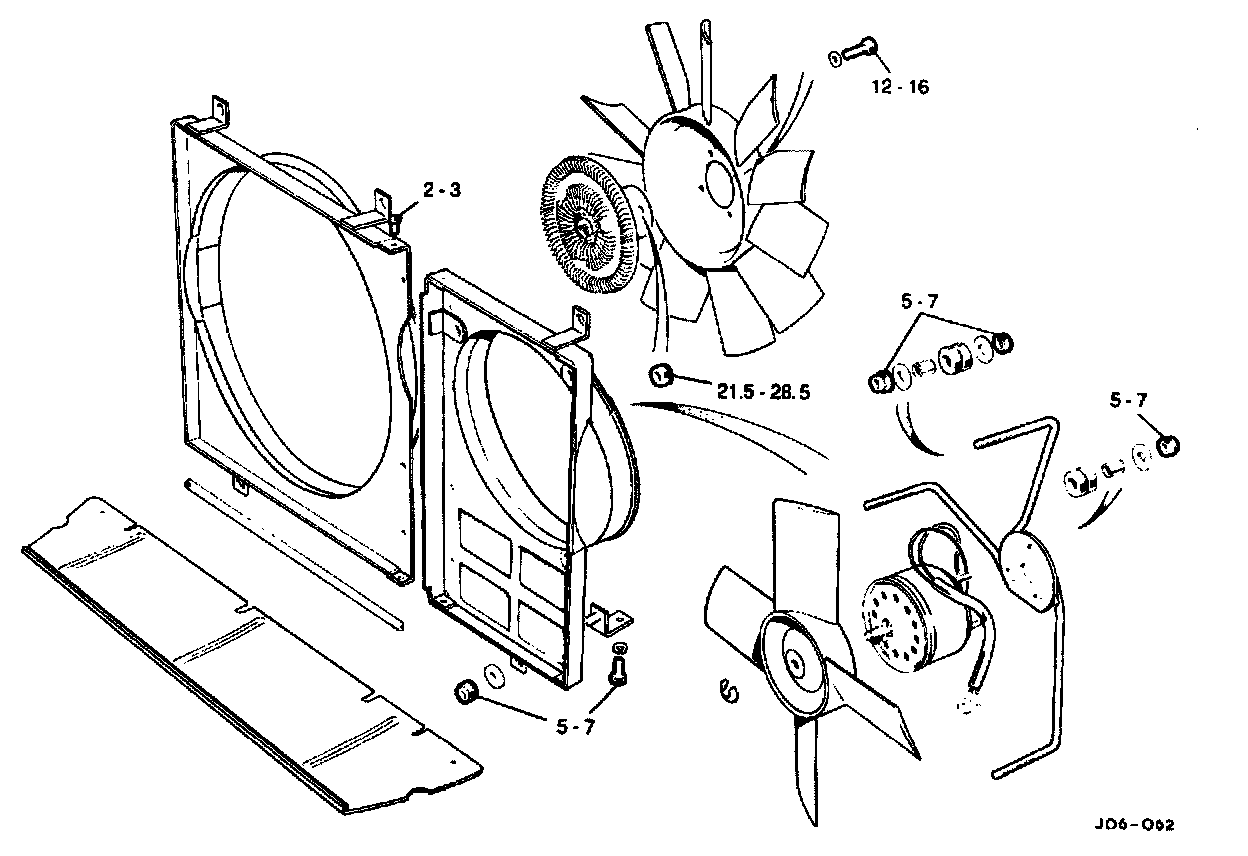

Cooling Fans Torque Figures:

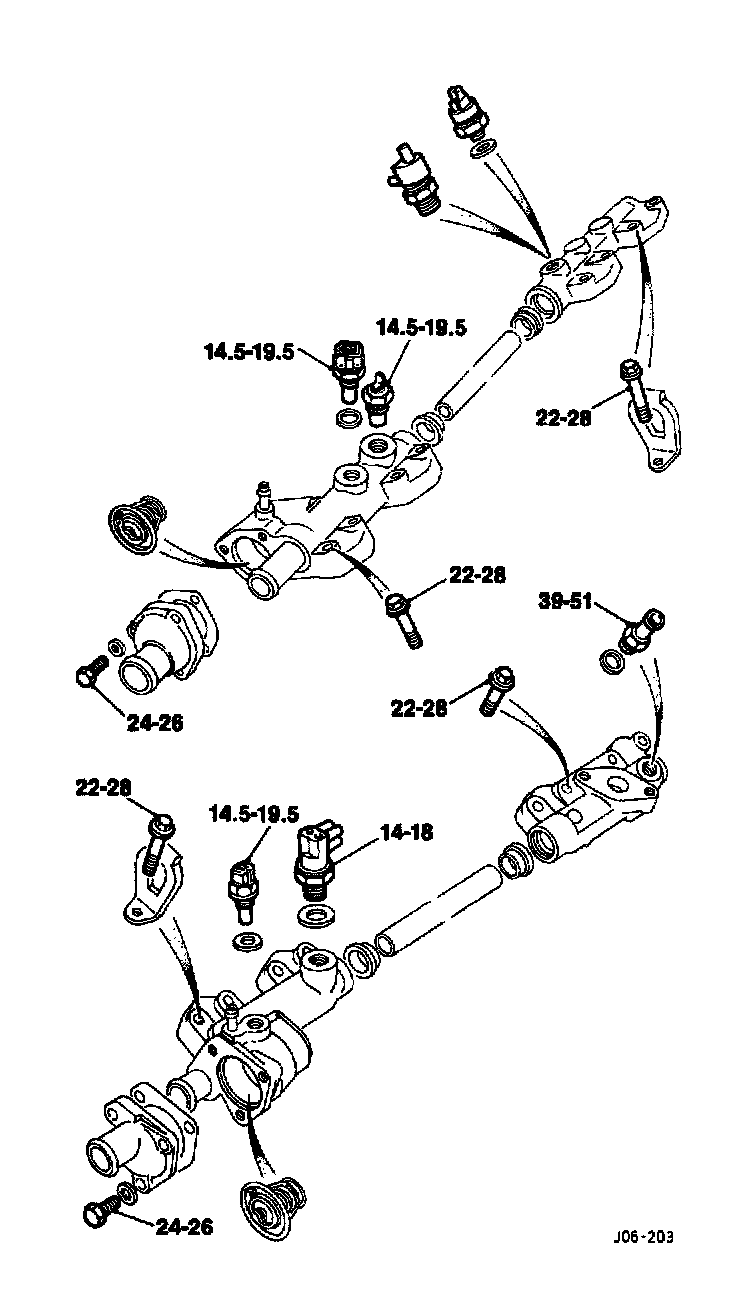

Thermostat Housing, Water Rails And Temperature Sensors:
Water Pump And Inlet Spout:

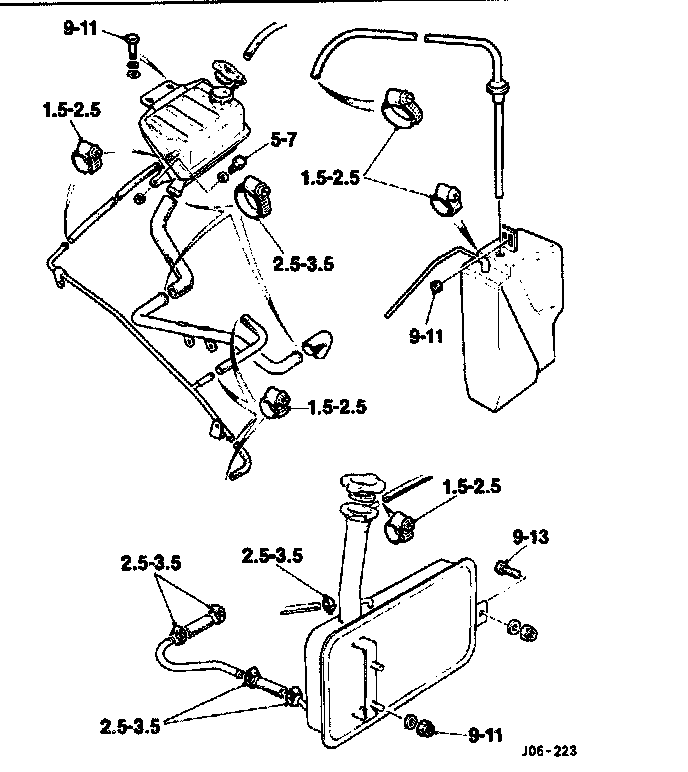

Expansion And Overflow Tanks:
Thermostat And Water Pipes:
