Windows and Glass



Component Connector End Views

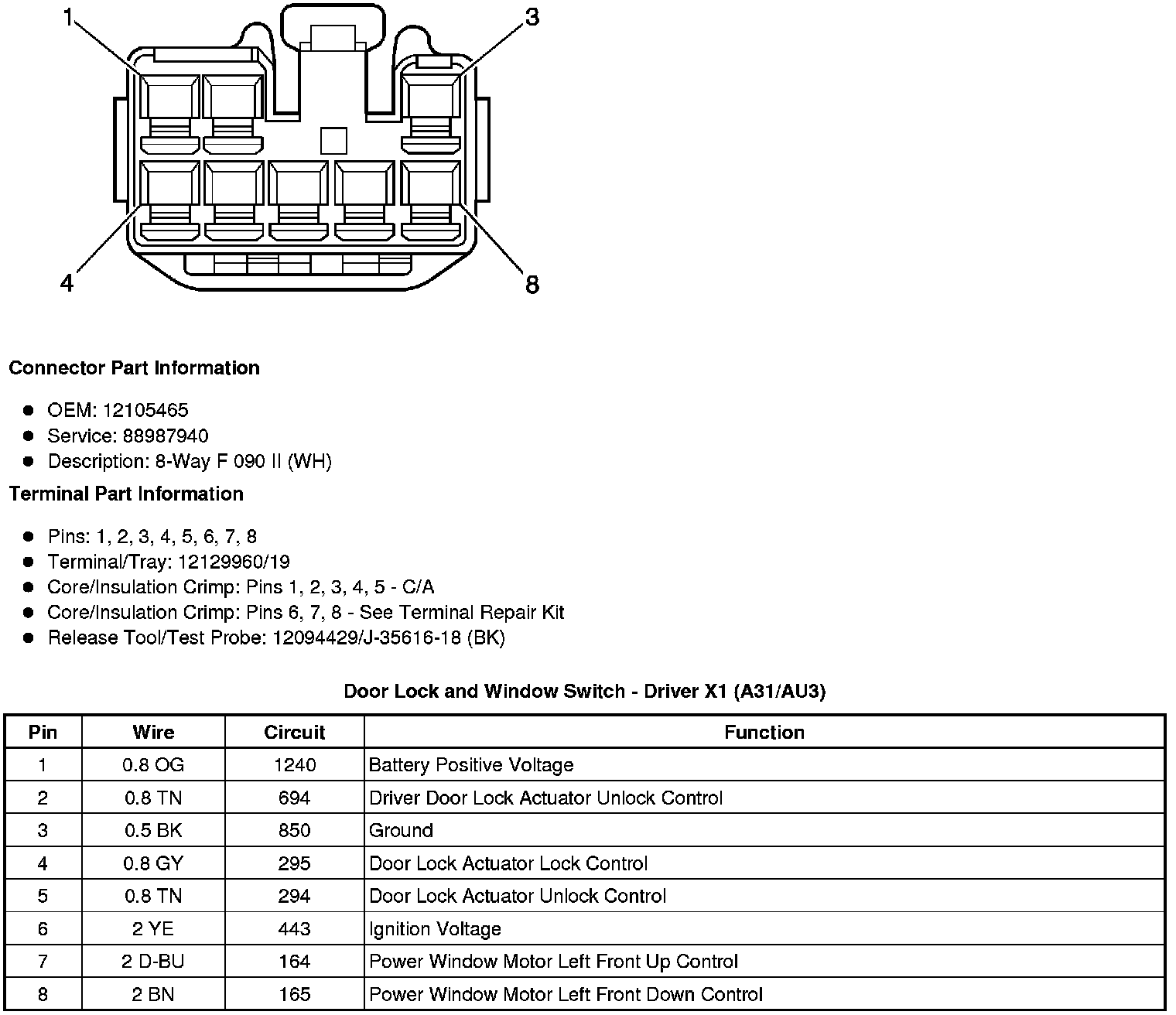

Door Lock and Window Switch - Driver X1 (A31/AU3)

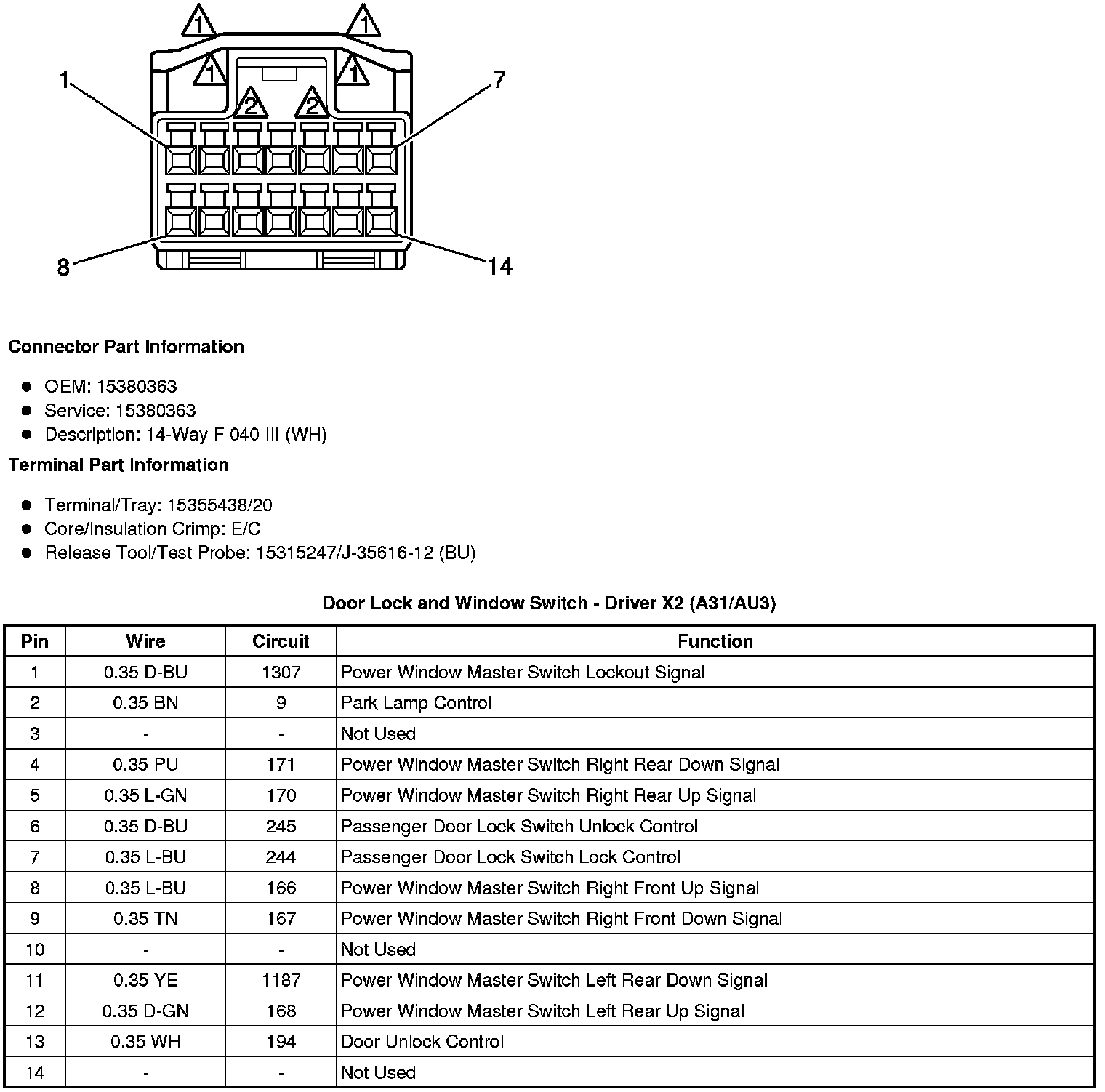

Door Lock and Window Switch - Driver X2 (A31/AU3)

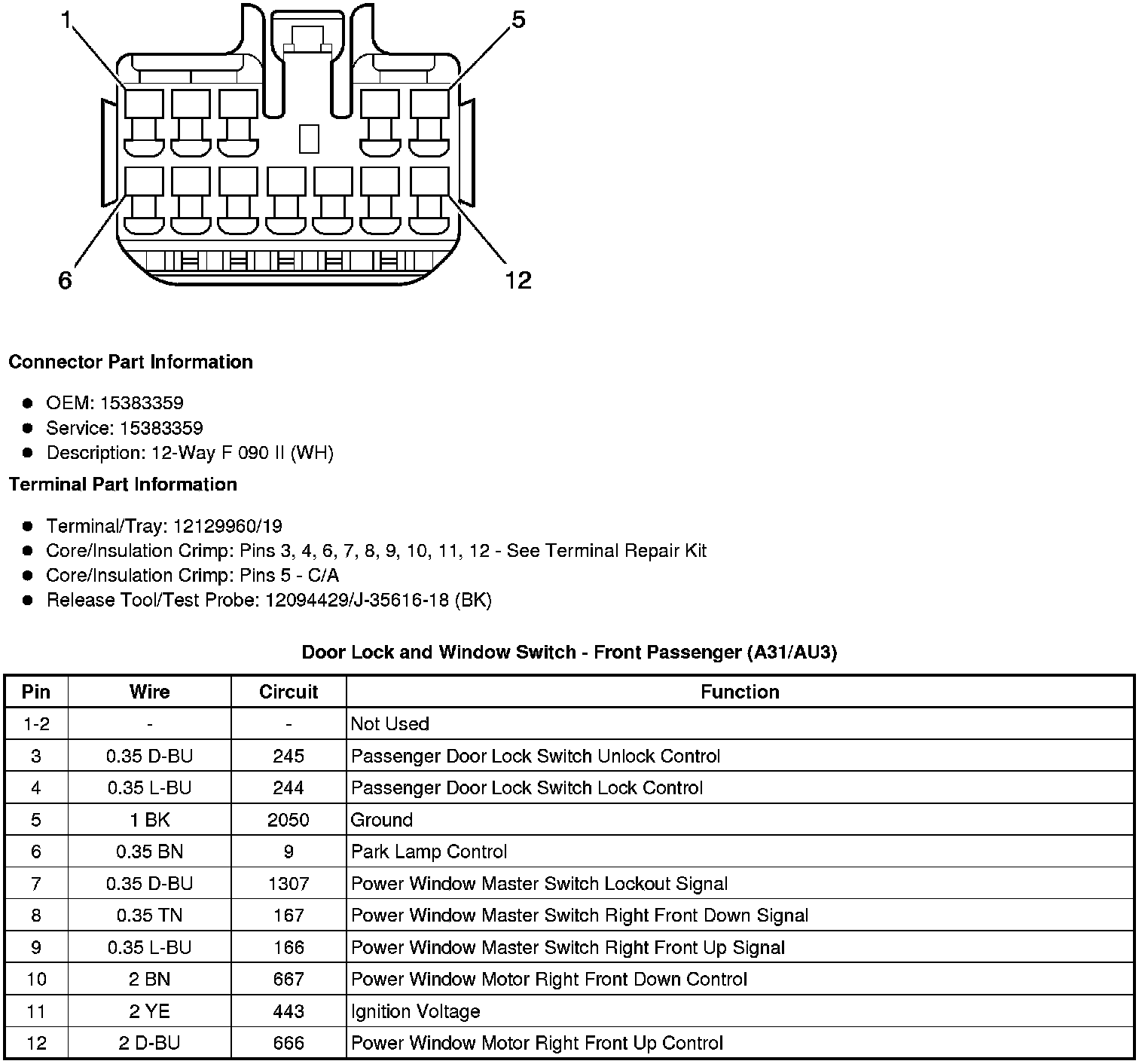

Door Lock and Window Switch - Front Passenger (A31/AU3)





Window Motor - Driver (A31)





Window Motor - Front Passenger (A31)





Window Motor - Left Rear (Crew Cab +A31)

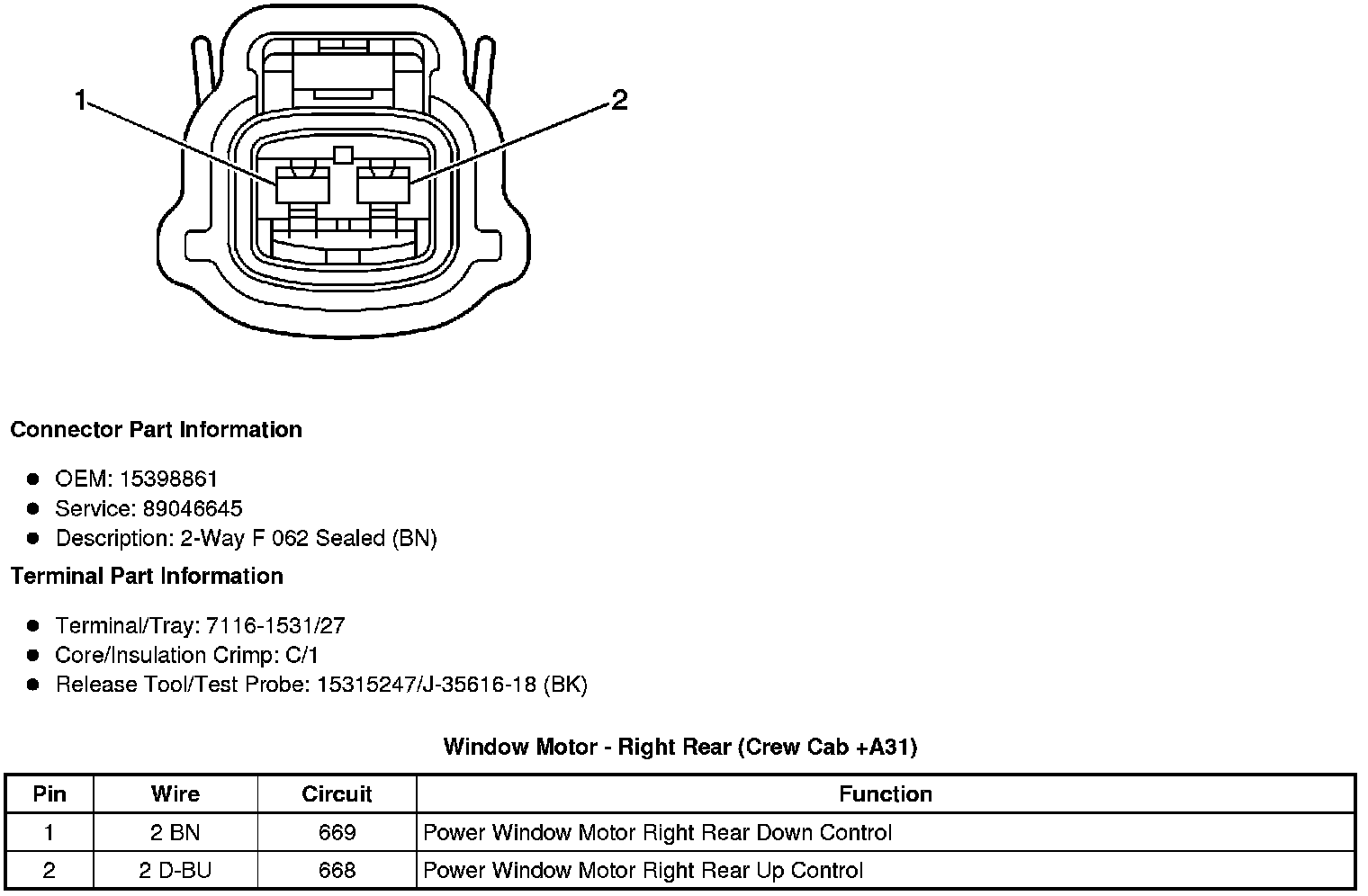

Window Motor - Right Rear (Crew Cab +A31)

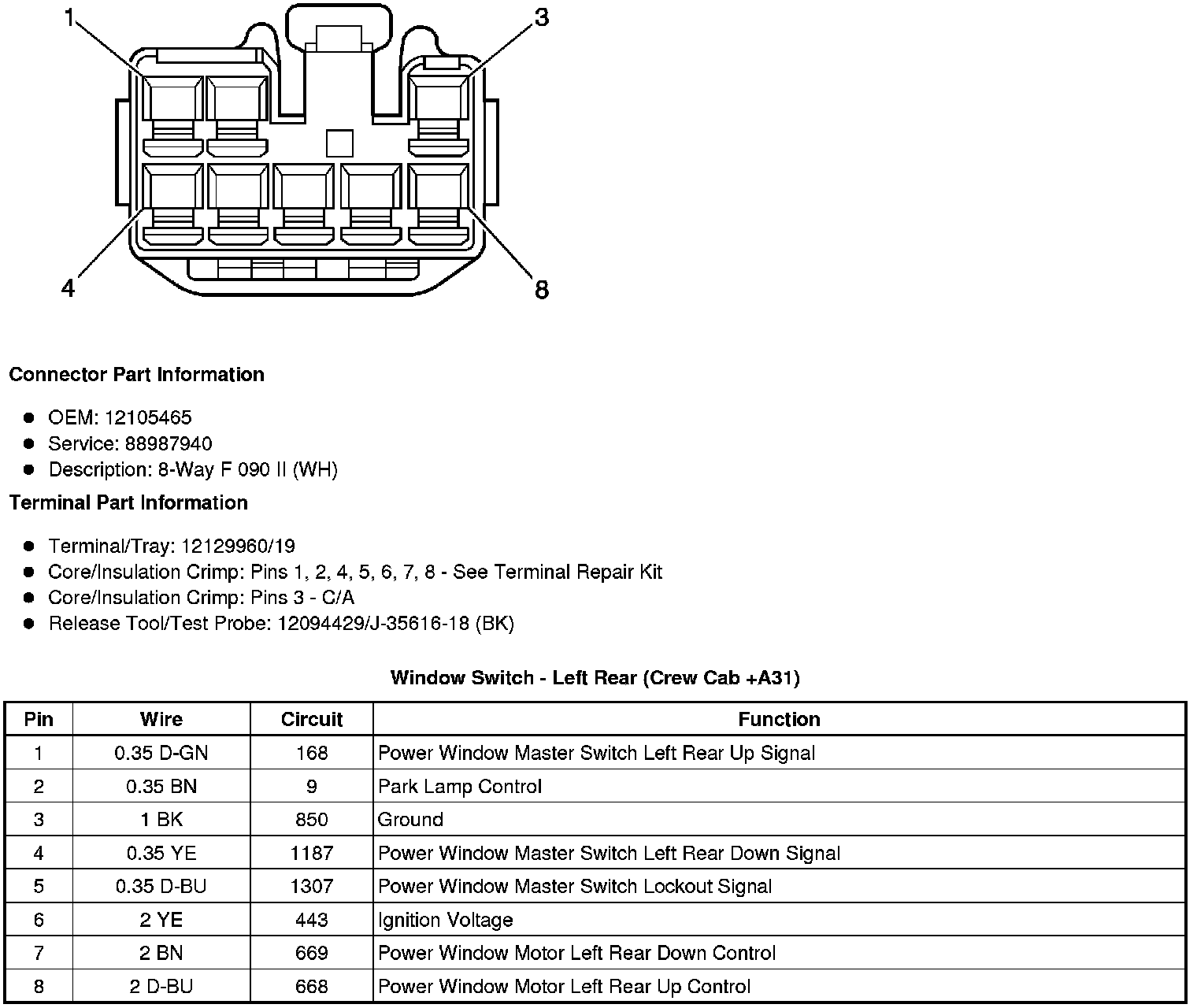

Window Switch - Left Rear (Crew Cab +A31)





Window Switch - Right Rear (Crew Cab +A31)
