Data Communication Schematics

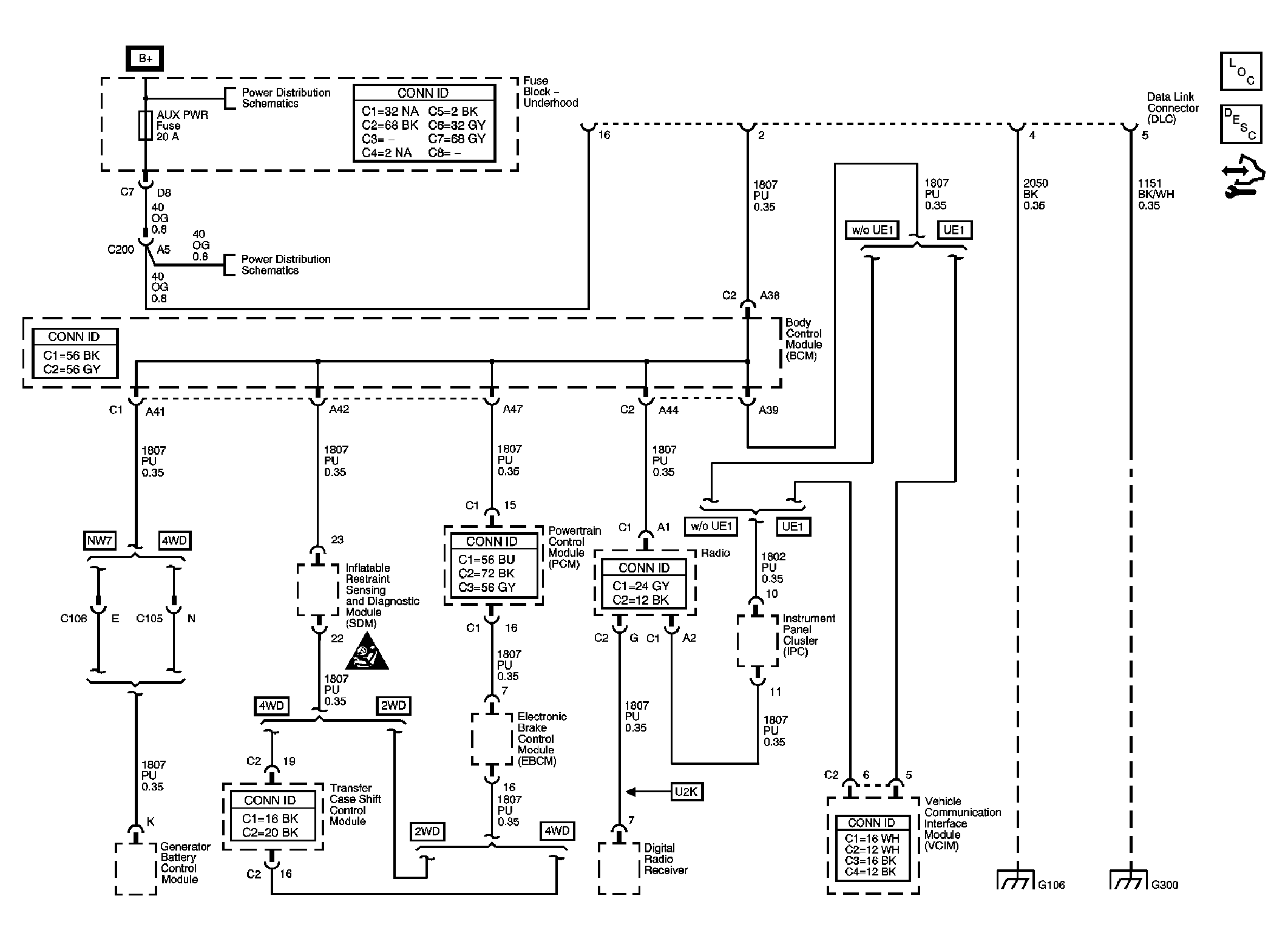

Fig 1: Data Communication Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
