Electrical Symbols



ELECTRICAL SYMBOLS

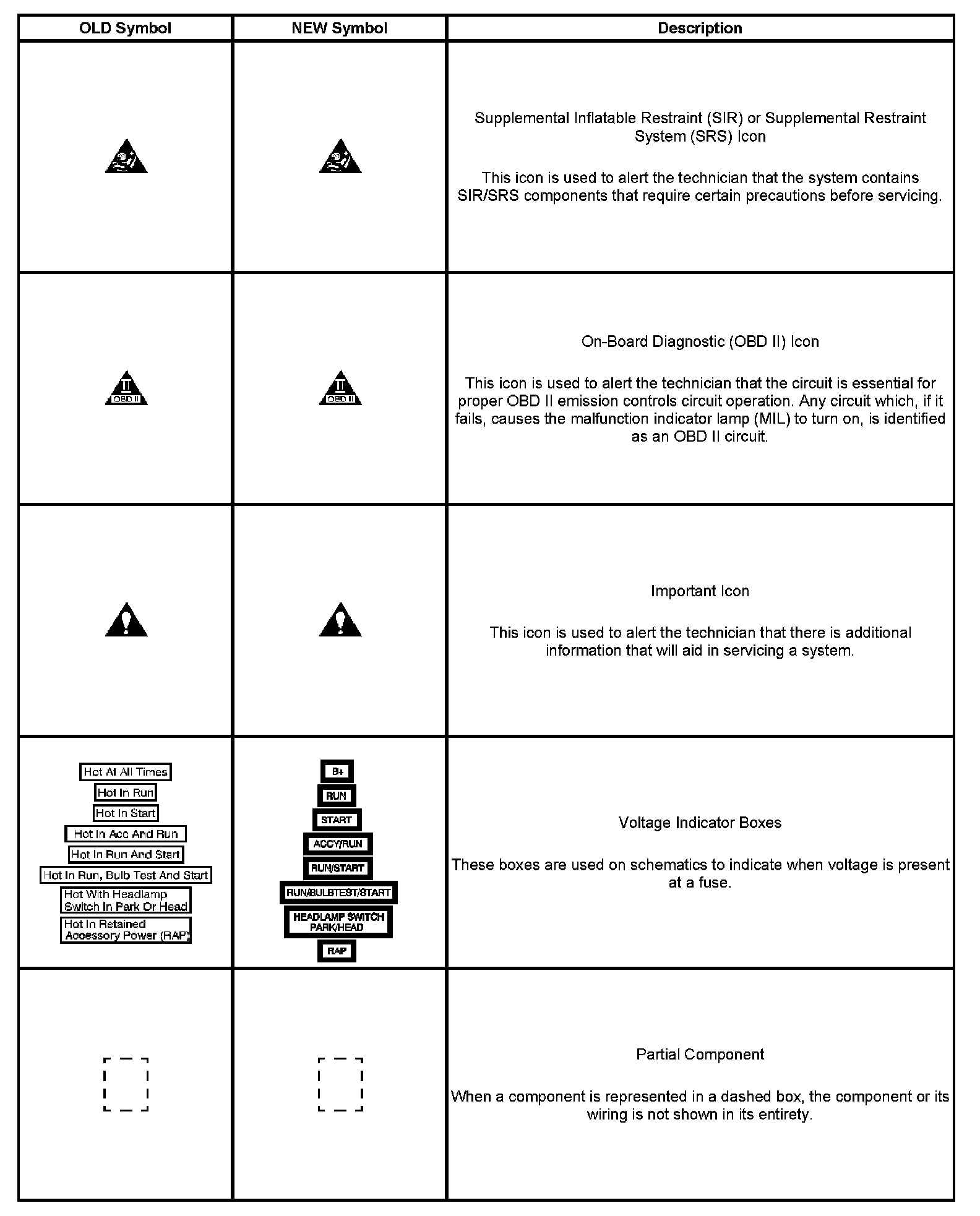

Electrical Symbols (Part 1):




Electrical Symbols (Part 2):




Electrical Symbols (Part 3):




Electrical Symbols (Part 4):




Electrical Symbols (Part 5):




Electrical Symbols (Part 6):




Electrical Symbols (Part 7):




Electrical Symbols (Part 8):
