HVAC Module Assembly Subsystem Views

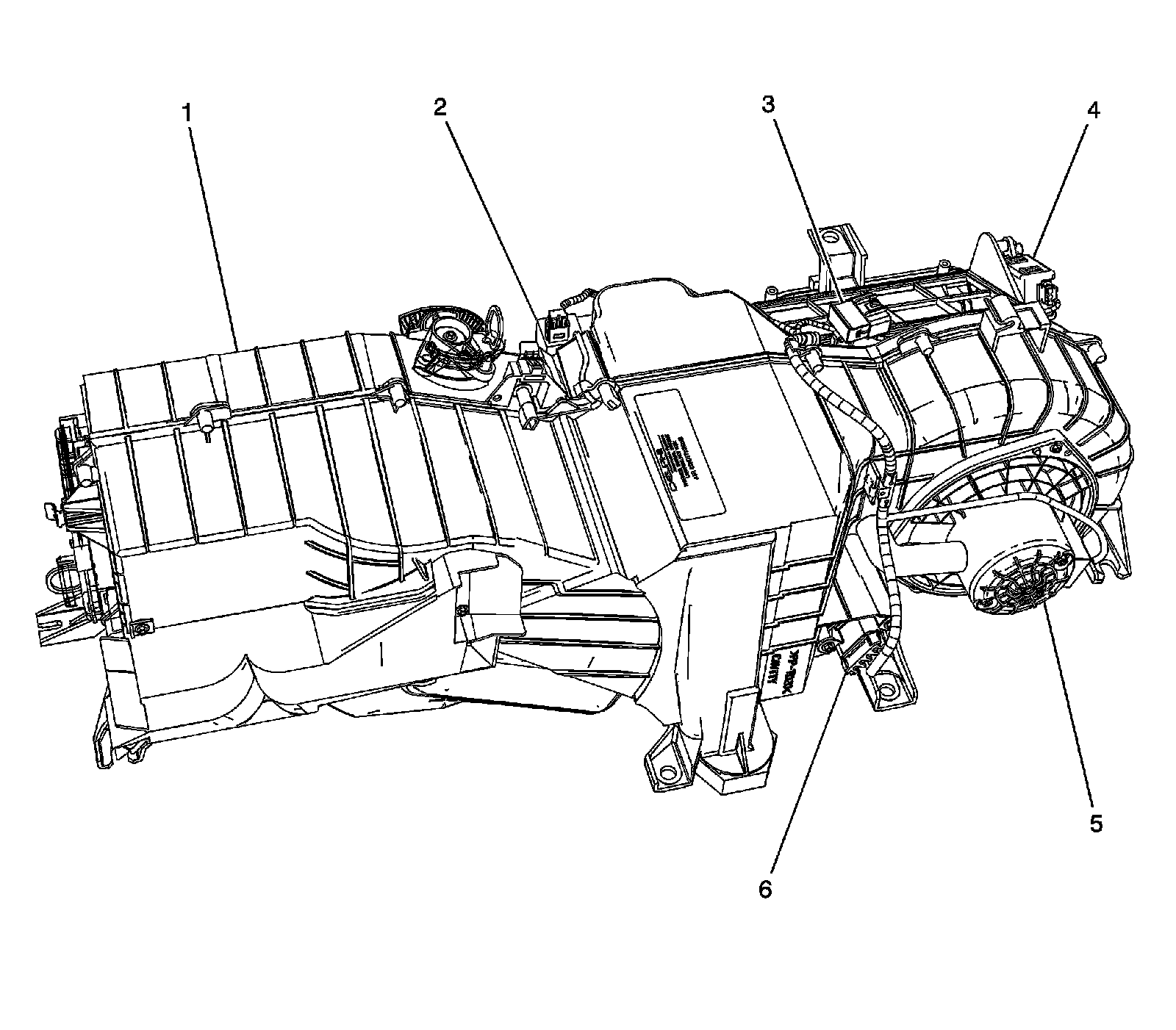

HVAC Component Views

HVAC Module Assembly Subsystem Views




1 - HVAC Module Assembly
2 - Evaporative Temperature Sensor
3 - C203
4 - Recirculation Actuator
5 - Blower Motor
6 - Blower Motor Resistor Assembly
