Antilock Brake System Schematics

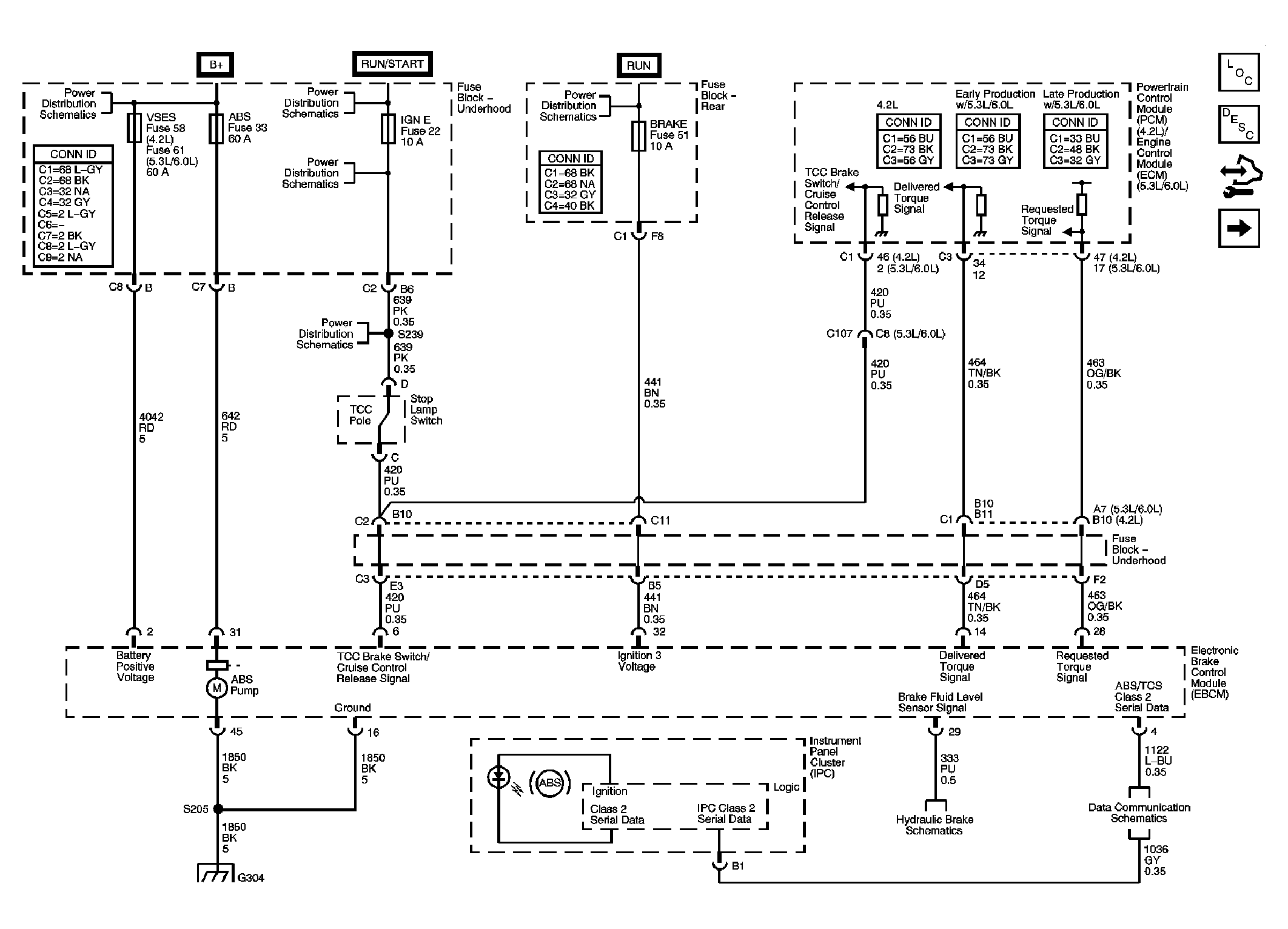

Fig 1: EBCM Power Ground, Serial Data, Indicator & Signal Circuits Schematic
GM1747705Courtesy of GENERAL MOTORS CORP.

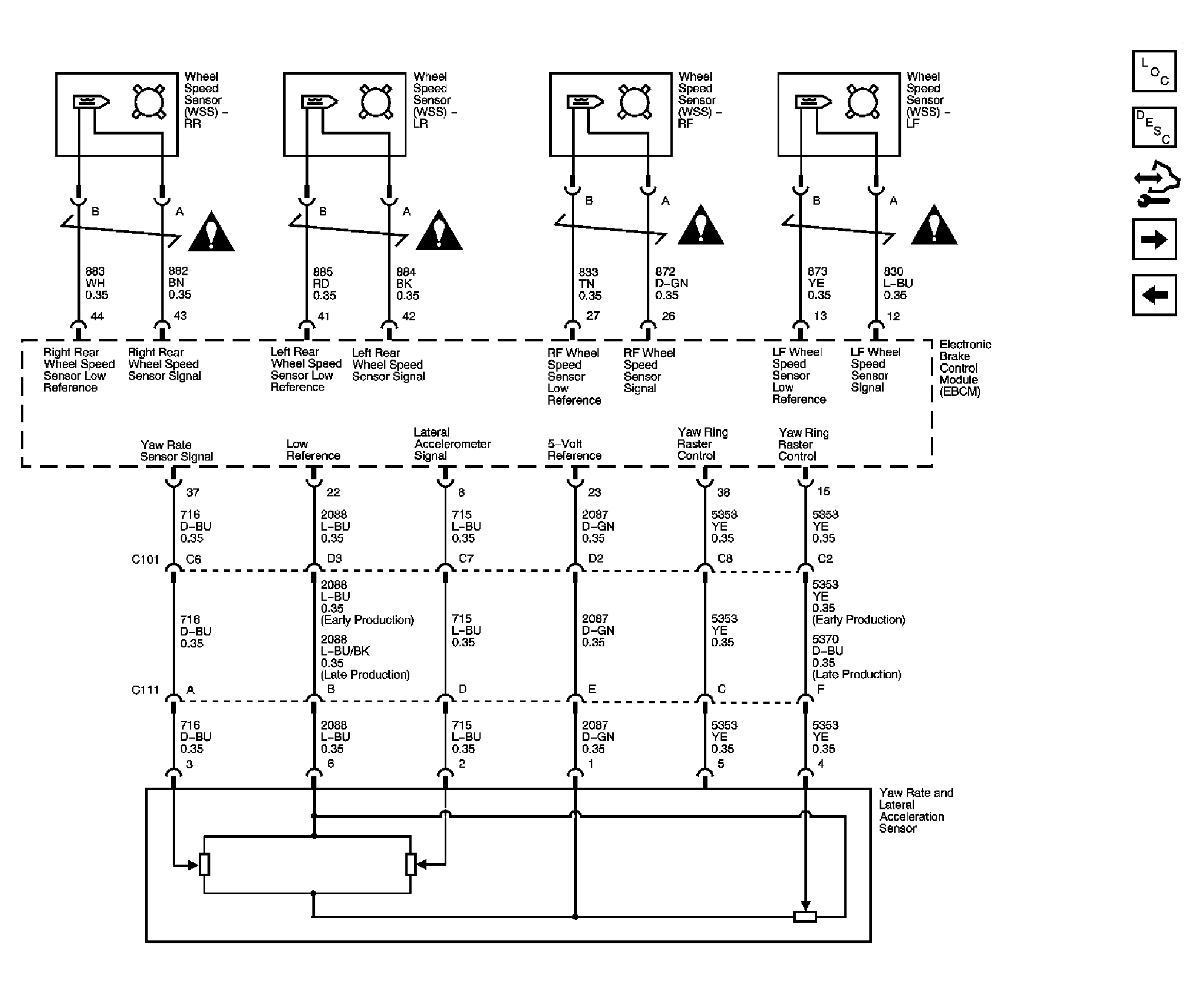

Fig 2: Wheel Speed Sensors & Yaw Rate/Lateral Acceleration Sensor Schematic
GM1747706Courtesy of GENERAL MOTORS CORP.
Fig 3: Steering Wheel Speed/Position Sensor & Traction Control Switch Schematic
GM1747707Courtesy of GENERAL MOTORS CORP.
