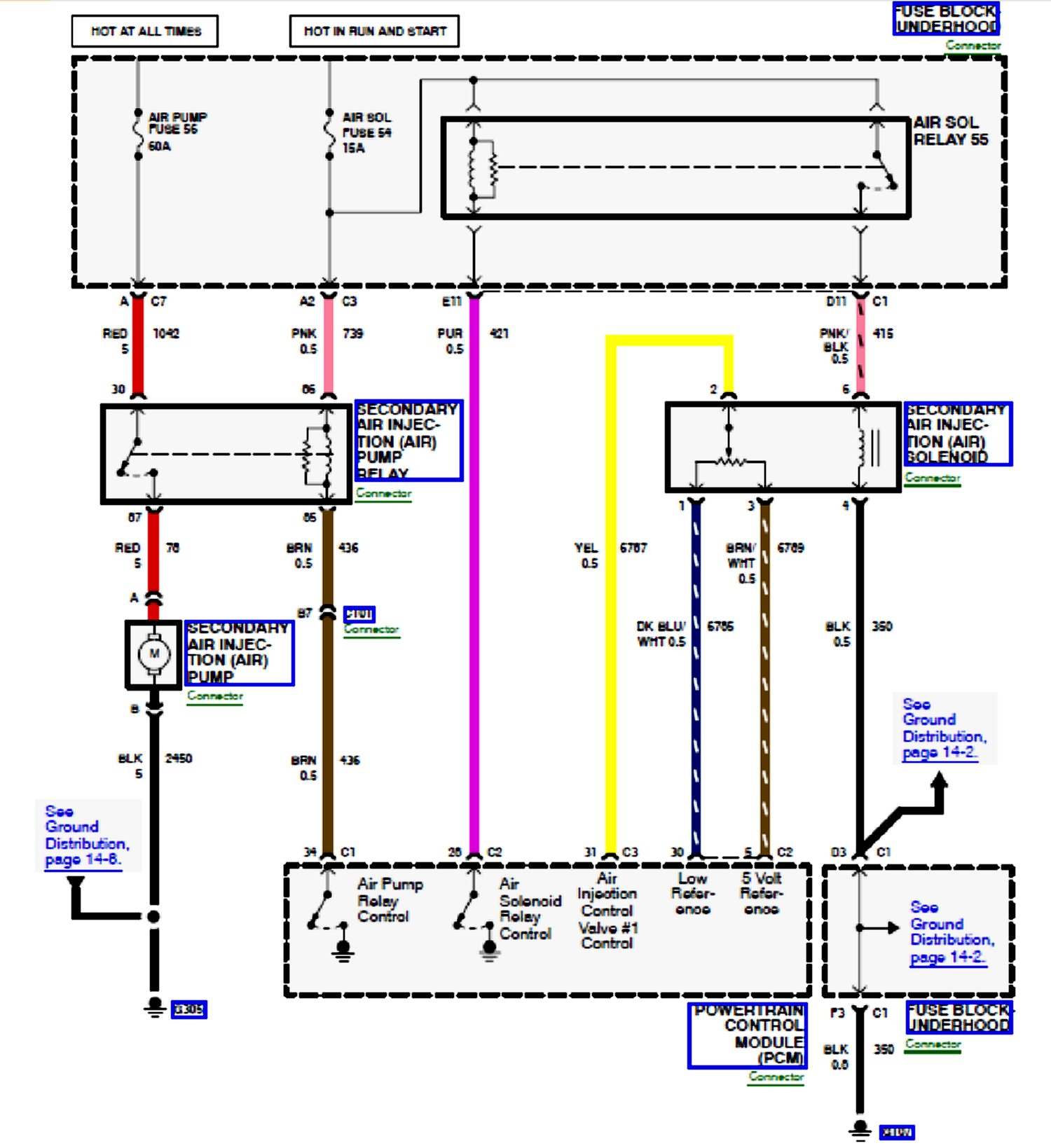

Engine Controls Diagram 15









Previous Diagram: Engine Controls Diagram 14

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Connector Locations
