Vehicle Access Component Views

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Hazard Switch
3	Sunload Twilight System
4	Speaker - Front Center (U57)
5	I/P Compartment Switch/Lamp
6	Valet Switch
7	Radio/Navigation Unit (U3Q)
8	Auxilary Power Outlet (AV8-DT4), Cigar Lighter (AV8+DT4)
9	Ashtray Lamp
10	HVAC Control Module
11	Data Link Connector (DLC)
12	Air Temperature Sensor - Inside
13	Rear Compartment Lid Release Switch
14	Driver Information Center (DIC) Switch
15	Headlamp Switch

Fig 2: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Heated and Cooled Seat Switch - Driver (KB6)
4	Memory/Personalization Function Switch (A45)
5	Mirror Switch
6	Speaker - LF Door
7	Window Switch - Driver Door
8	Window Motor - Driver
9	Courtesy Lamp - Left Front Door
10	Door Lock Switch Assembly
11	Door Latch Assembly - Driver
12	Door Lock Key Cylinder Switch - Driver

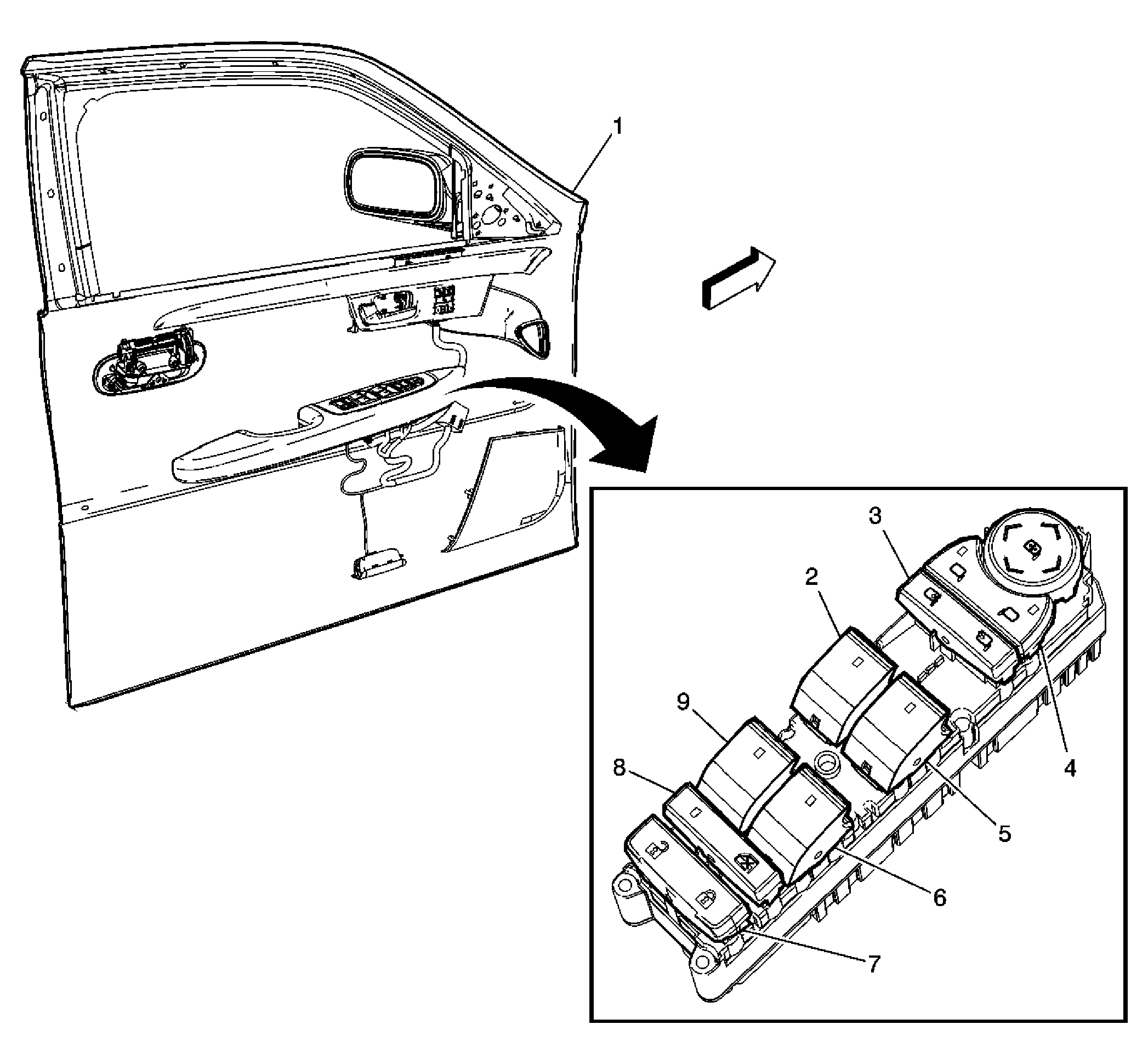

Fig 3: Driver Door Module - Window/Lock Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door
2	Driver Door Module (DDM)-Window/Lock Switch

Fig 4: Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Door Frame
3	Door Latch Assembly - Front Passenger
4	Courtesy Lamp - Right Front Door
5	Window Motor - Front Passenger
6	Speaker - RF Door
7	Power Lock Switch - Front Passenger
8	Window Switch - Front Passenger
9	Heated Cooled Seat Switch (KB6) - Front Passenger

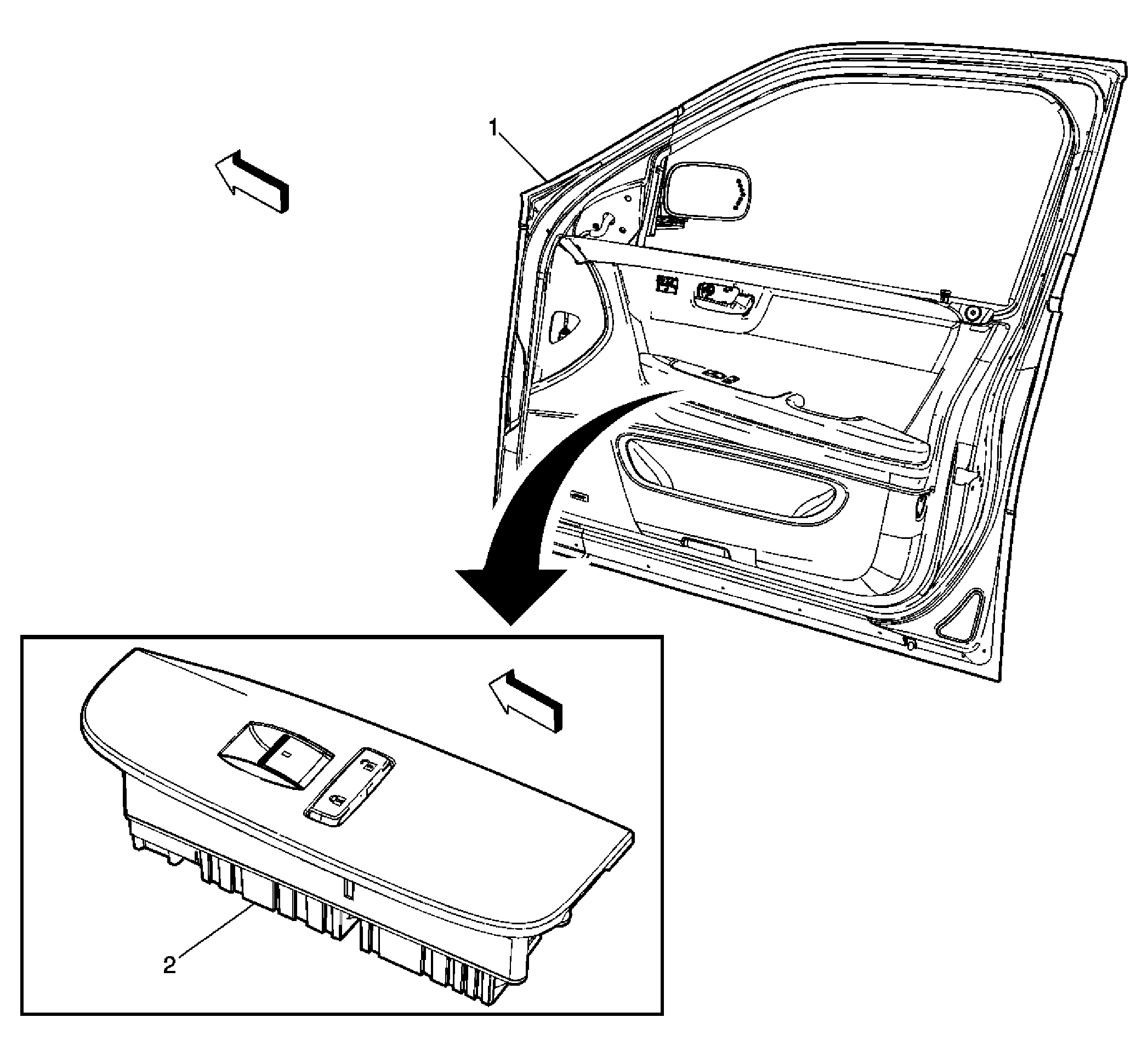

Fig 5: Passenger Door Module - Window/Lock Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door
2	Passenger Door Module (PDM)-Window/Lock Switch

Fig 6: LR Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Heated Seat Switch - LR
3	Seat Lumbar Switch - LR (ARC)
4	Window Motor - LR
5	Speaker - LR Door
6	Courtesy Lamp - Left Rear Door
7	Window Switch - Left Rear
8	Door Latch Assembly - Left Rear

Fig 7: RR Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch Assembly - Right Rear
3	Courtesy Lamp - Right Rear Door
4	Speaker - RR Door
5	Window Motor - RR
6	Window Switch - Right Rear
7	Seat Lumbar Switch - RR (ARC)
8	Heated Seat Switch - RR

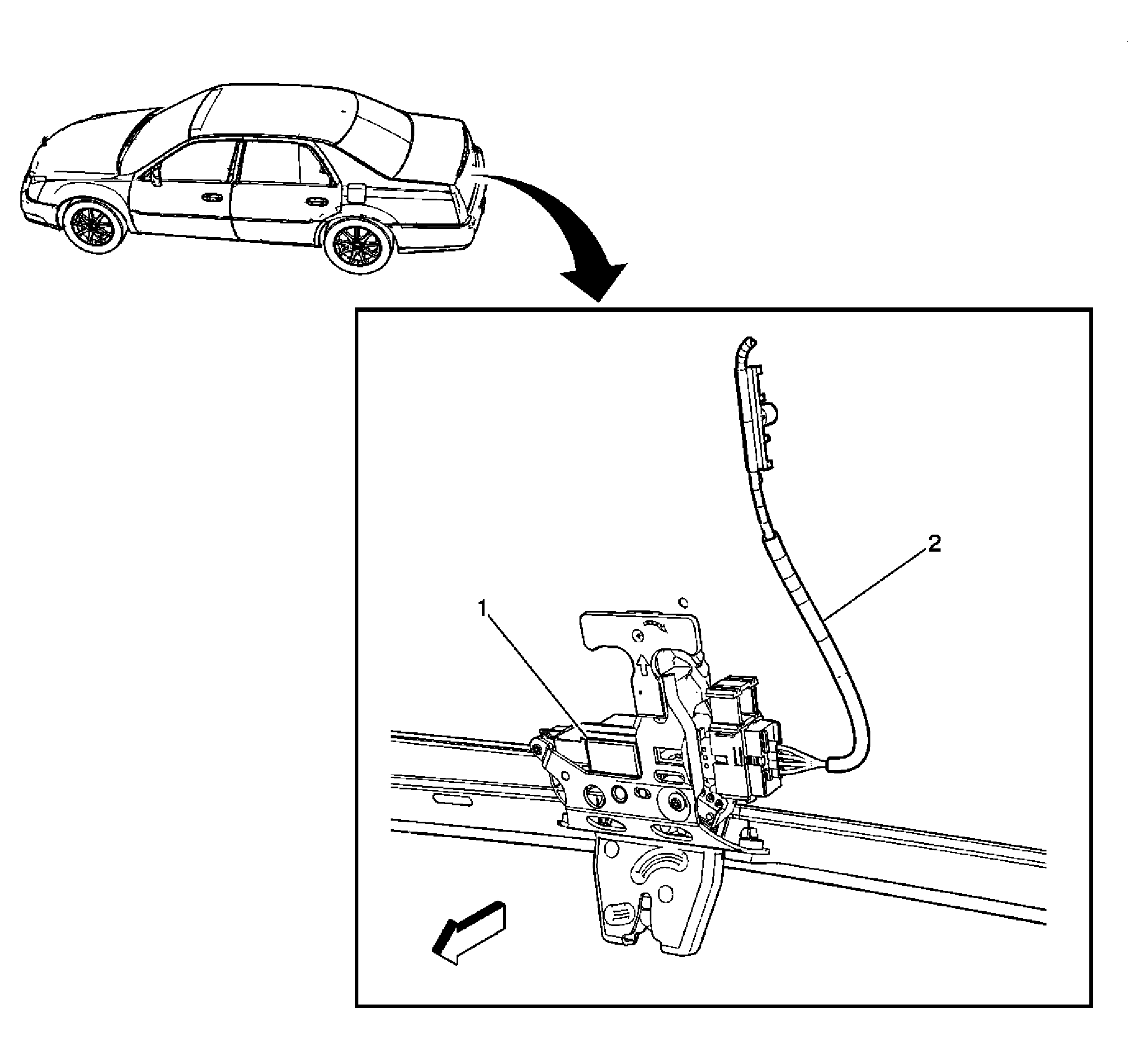

Fig 8: Rear Compartment Lid Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch
2	Deck Lid Harness

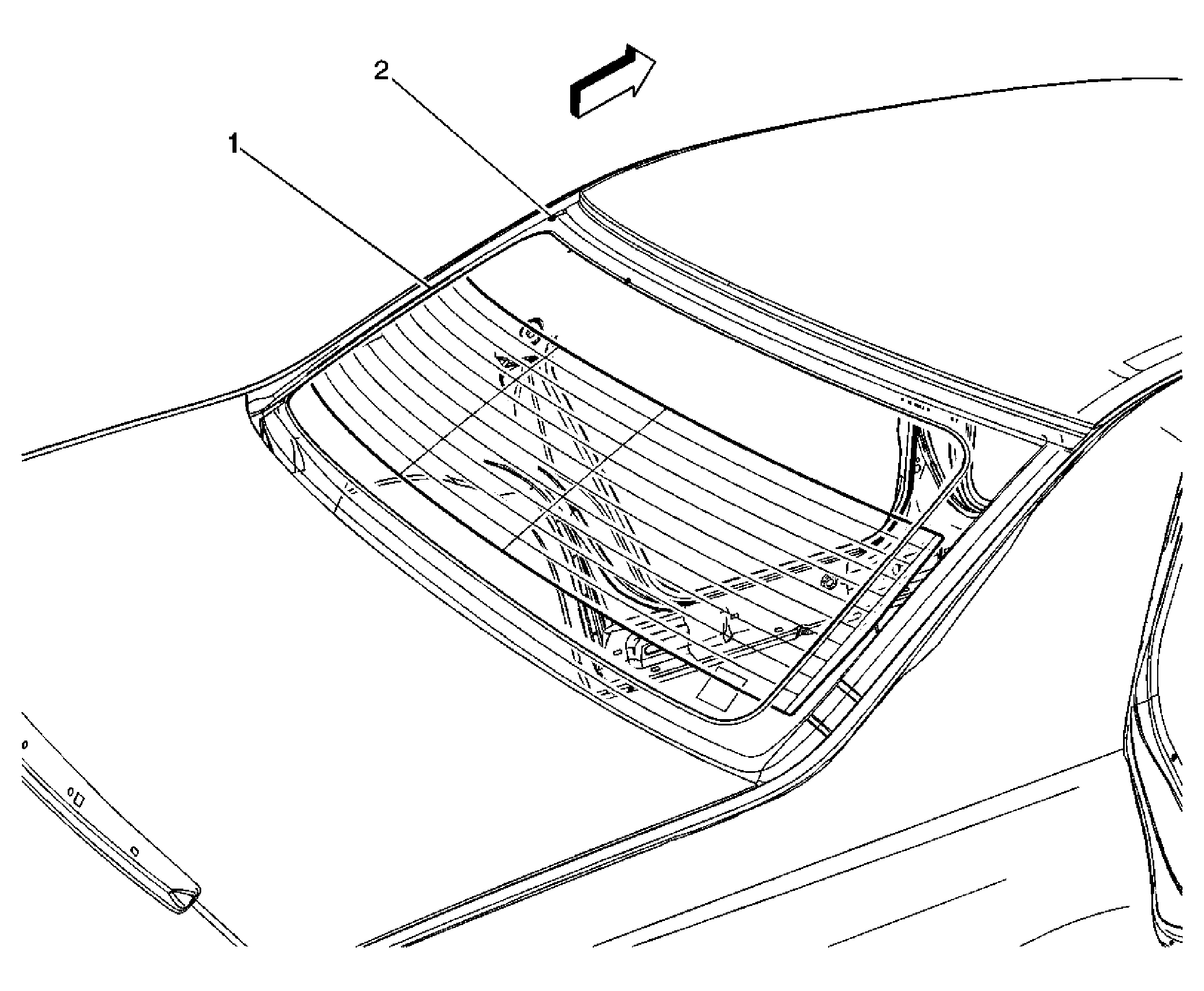

Fig 9: Top of Rear Window Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Remote Start Antenna
