Body Control Module (BCM) C1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Body Control Module (BCM) C1

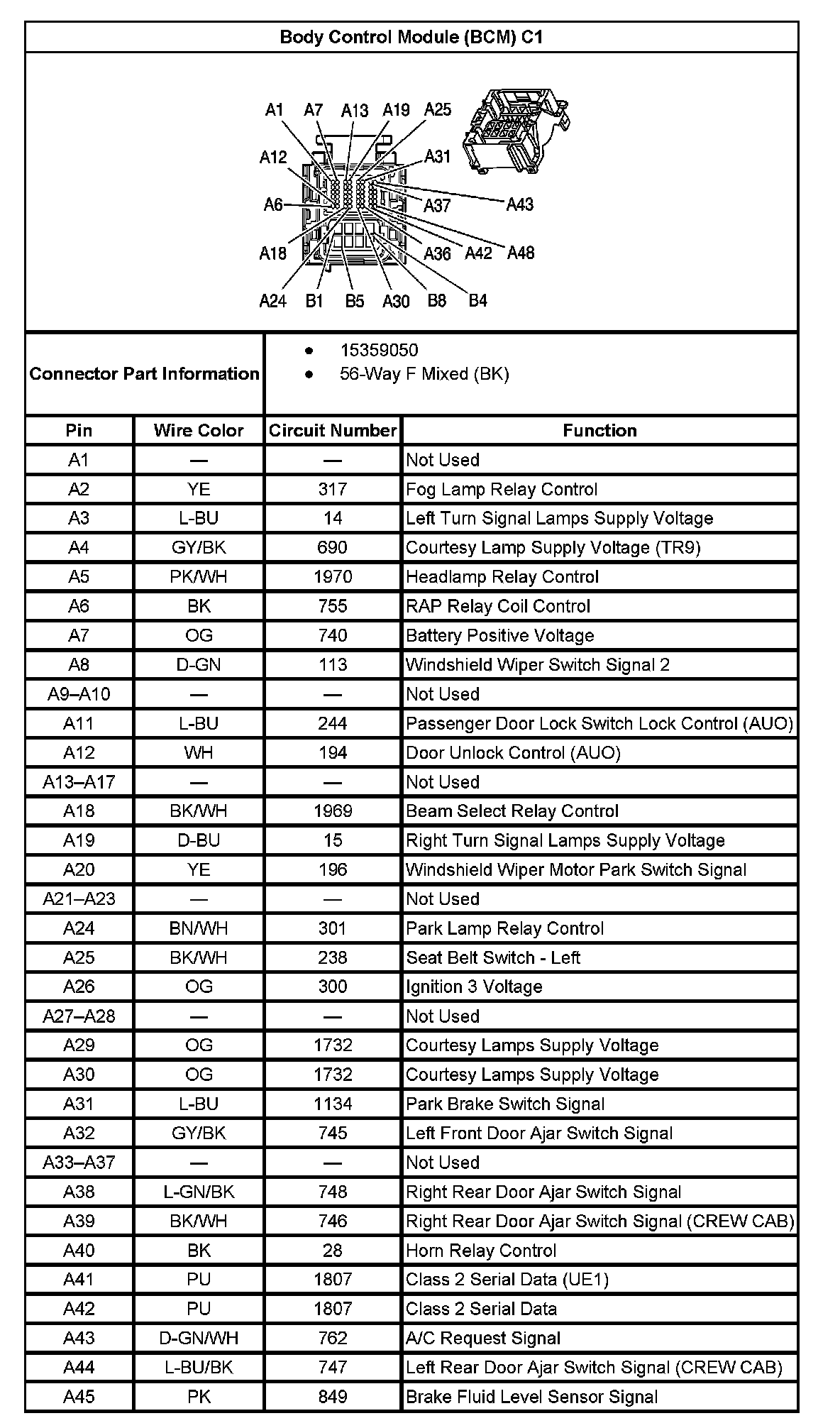

Body Control Module (BCM) C1 (Part 1):

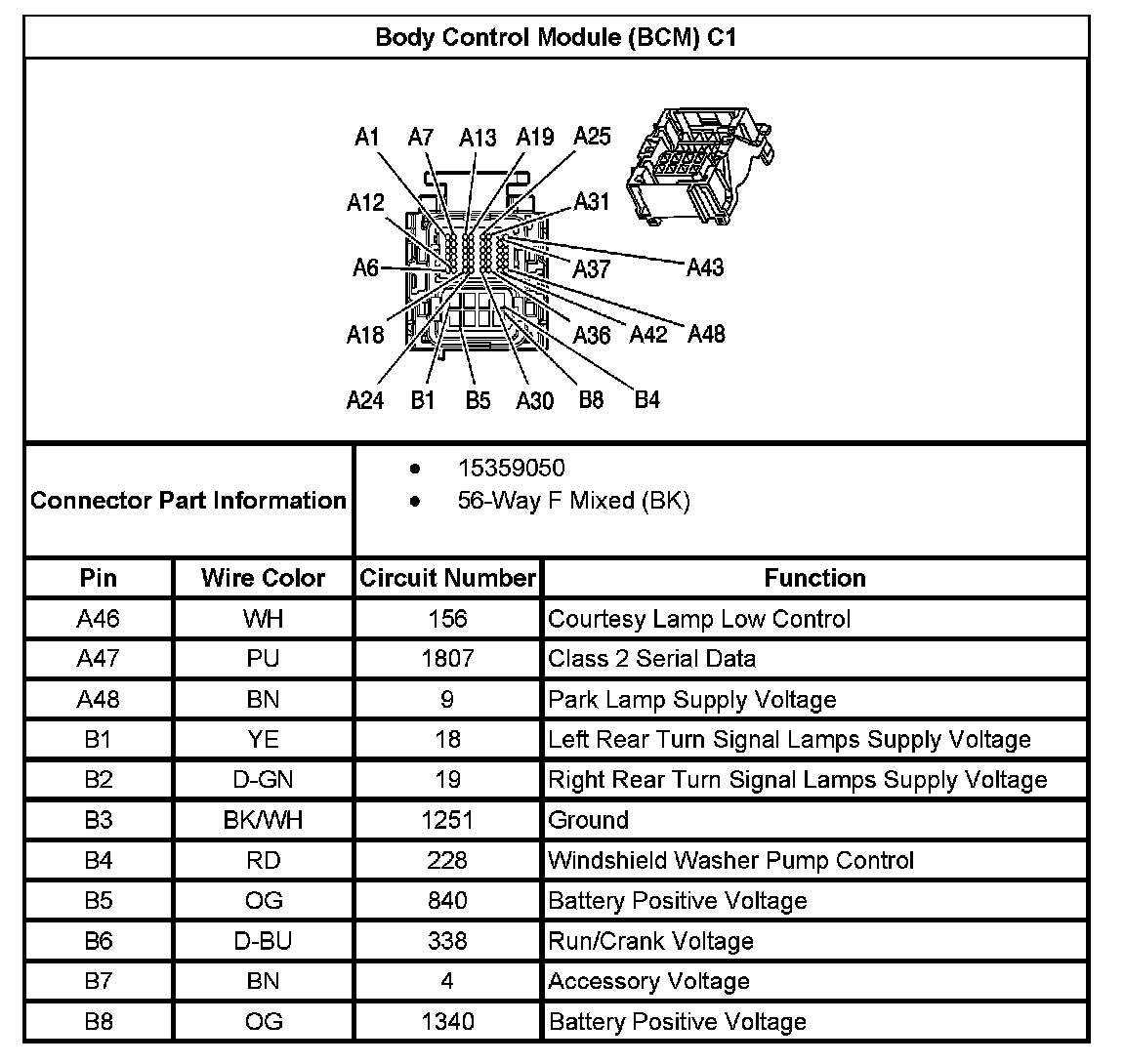

Body Control Module (BCM) C1 (Part 2):
