Scan Tool Data List



SCAN TOOL DATA LIST

BCM:

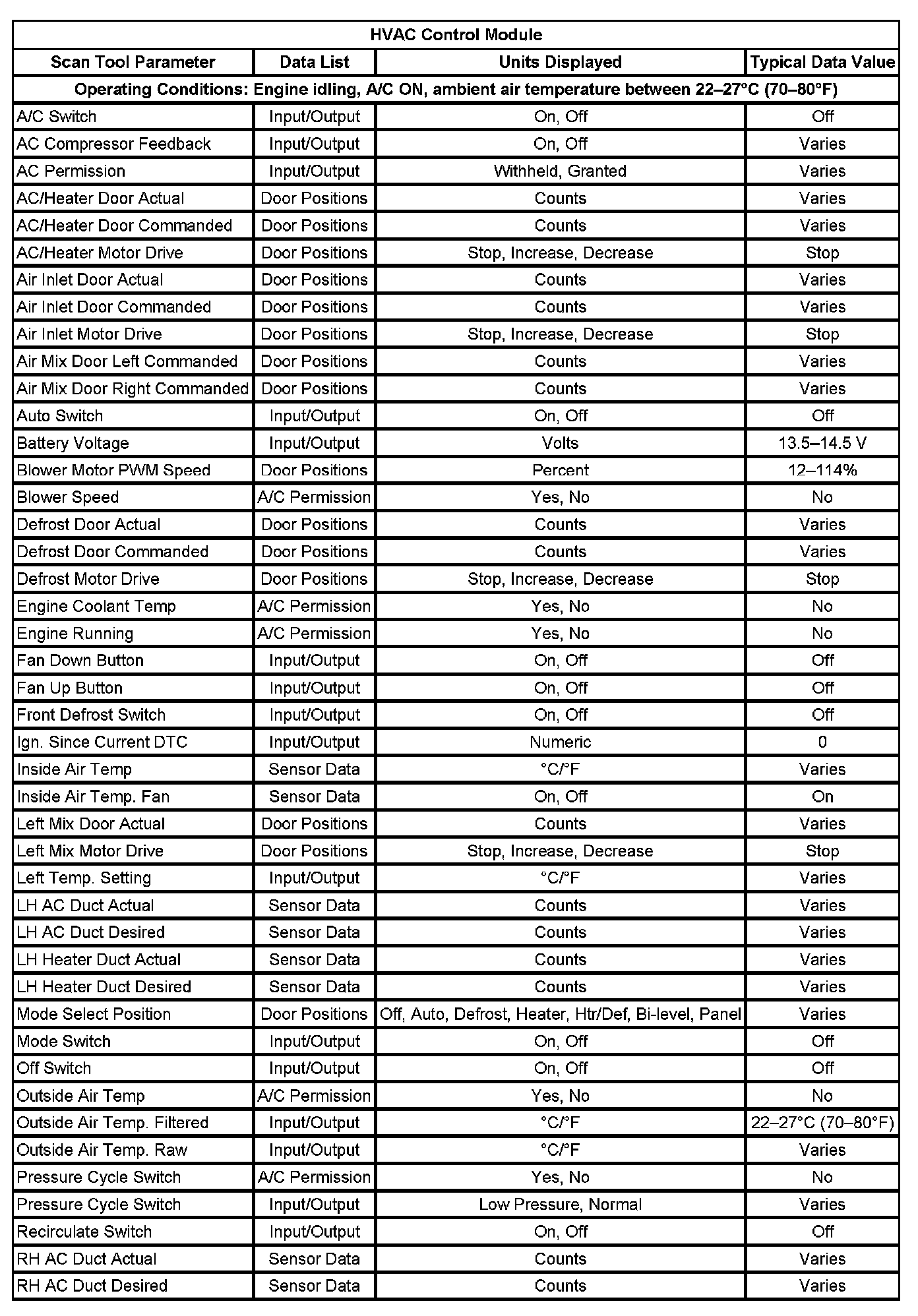

HVAC Control Module (Part 1):




HVAC Control Module (Part 2):




Rear HVAC/RSA (VIN 3):

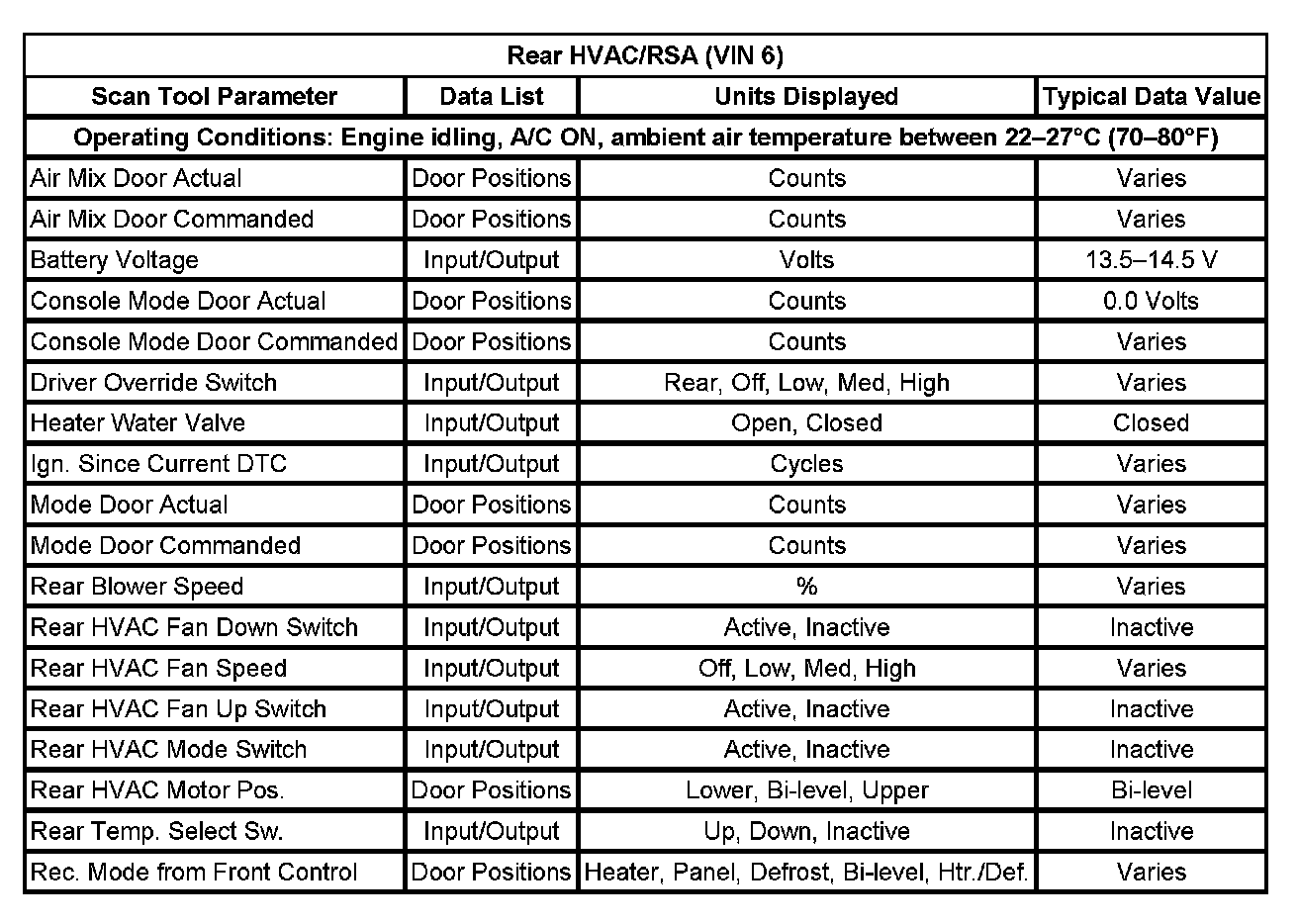

Rear HVAC/RSA (VIN 6):




PCM:
