Engine Front Cover Removal



Engine Front Cover Removal

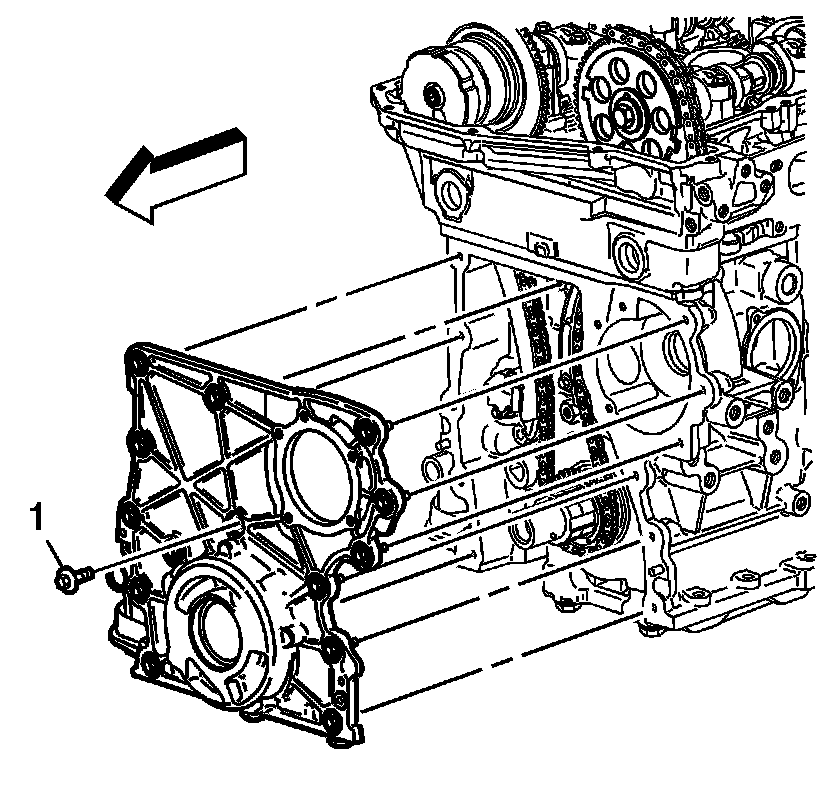

1. Remove the 7 mm center bolt (1) first.
2. Loosen the engine front cover bolts.
3. Remove the engine front cover and bolts.




4. Remove the spacer bolt.

Important: The friction washer may have come off with the crankshaft balancer.

5. Remove the crankshaft balancer friction washer from the crankshaft snout.
