Door Control Module Schematics

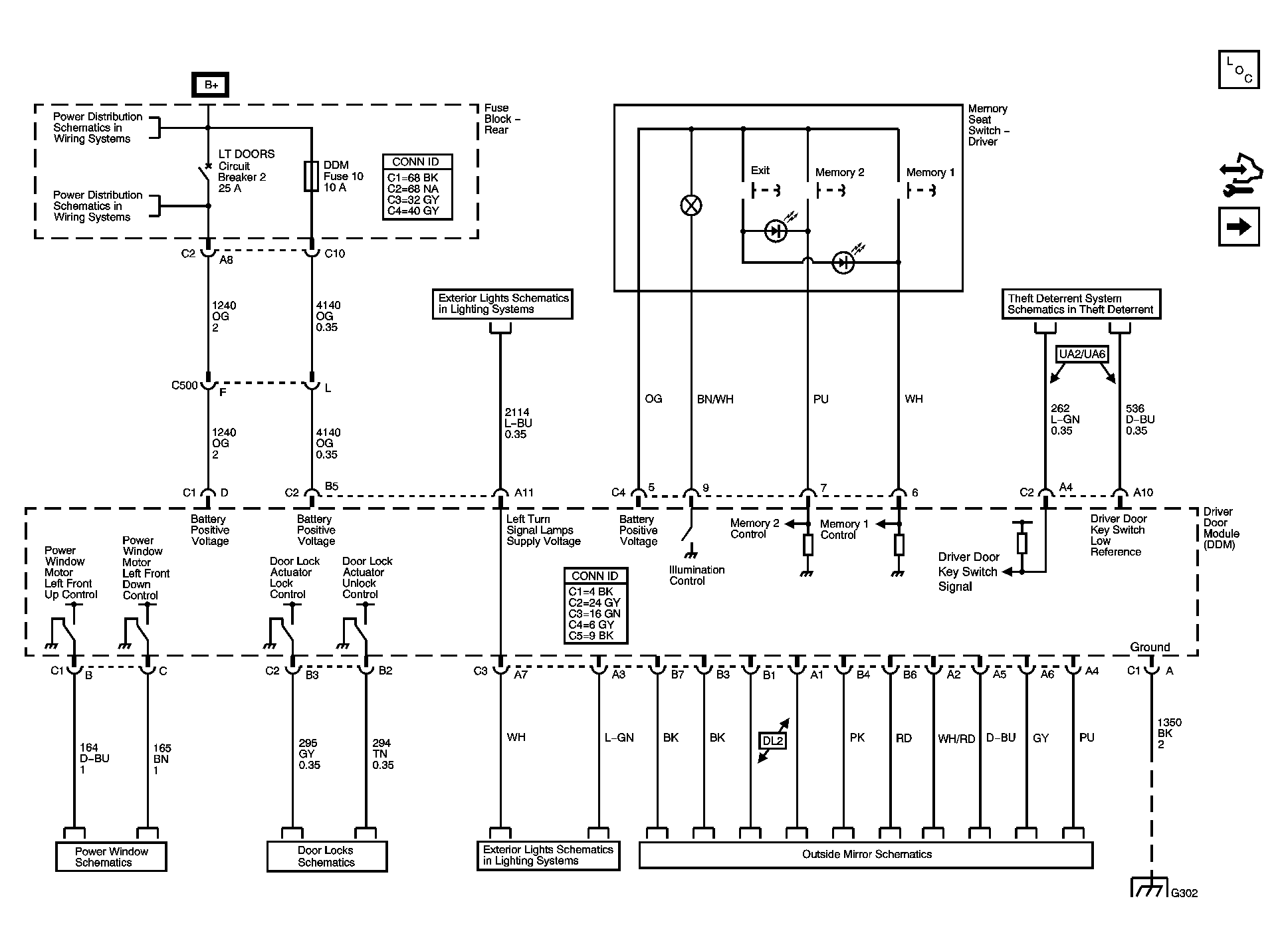

Fig 1: Power, Ground, and Subsystem References Schematics
GM1430282Courtesy of GENERAL MOTORS CORP.
Fig 2: Serial Data and Subsystem References Schematics
GM1430283Courtesy of GENERAL MOTORS CORP.

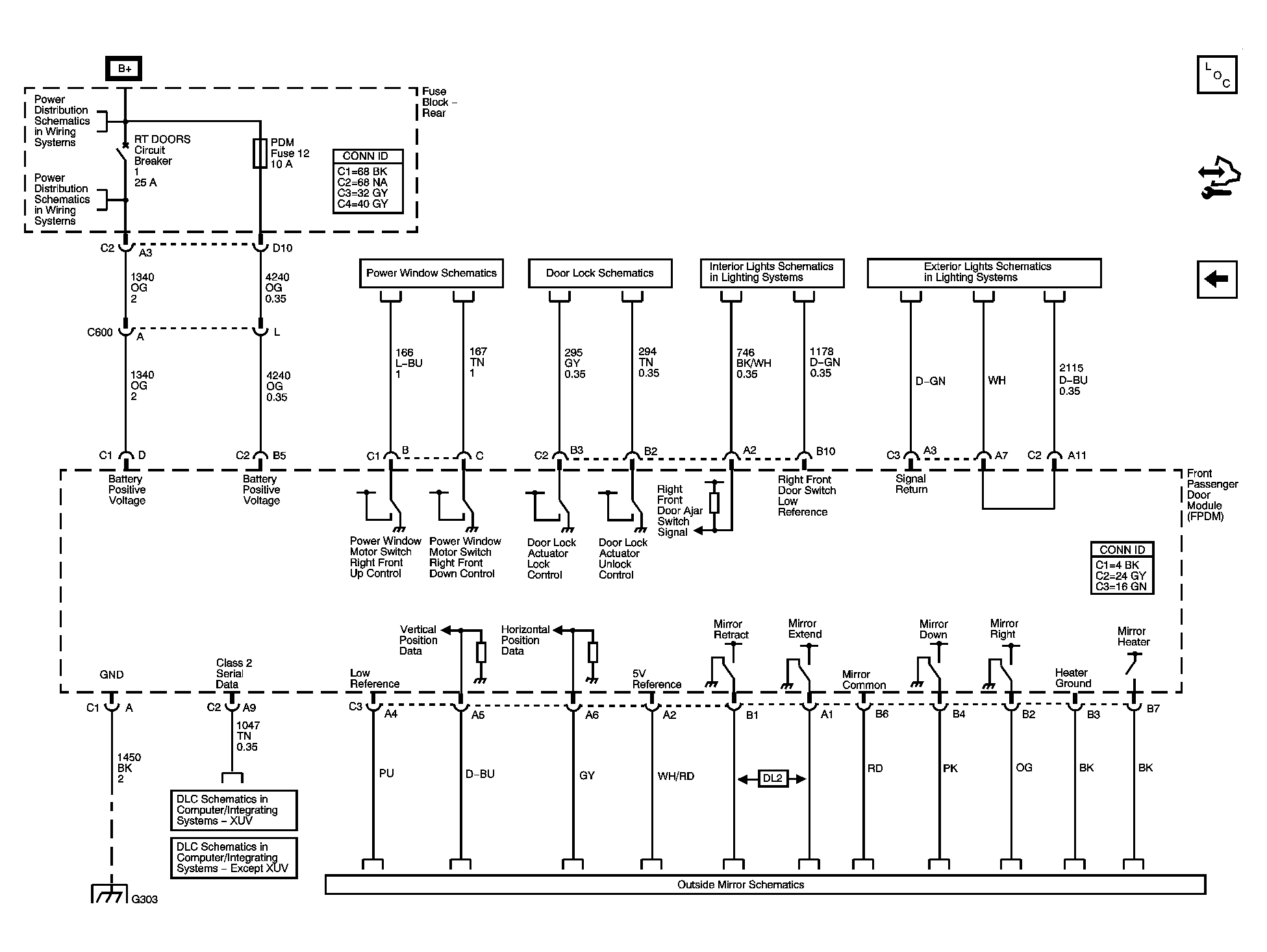

Fig 3: Front Passenger Schematics
GM1430284Courtesy of GENERAL MOTORS CORP.
