Chart TC-1 Sensor Output Inspection Procedure

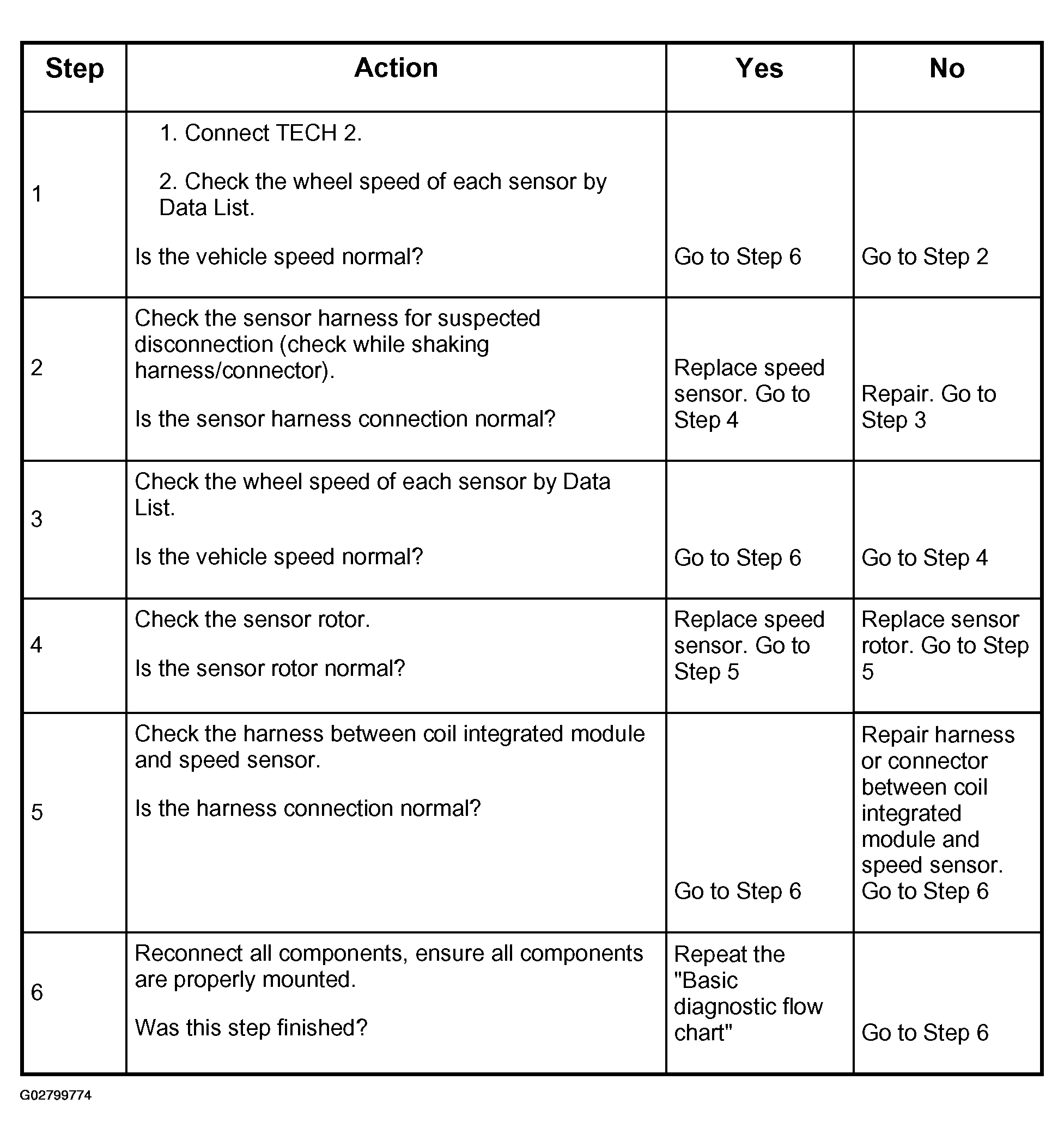

Fig 1: Chart TC-1 Sensor Output Inspection Procedure
G02799774Courtesy of ISUZU MOTOR CO.
