Chart C-1-2 FR Sensor Output Inspection Procedure

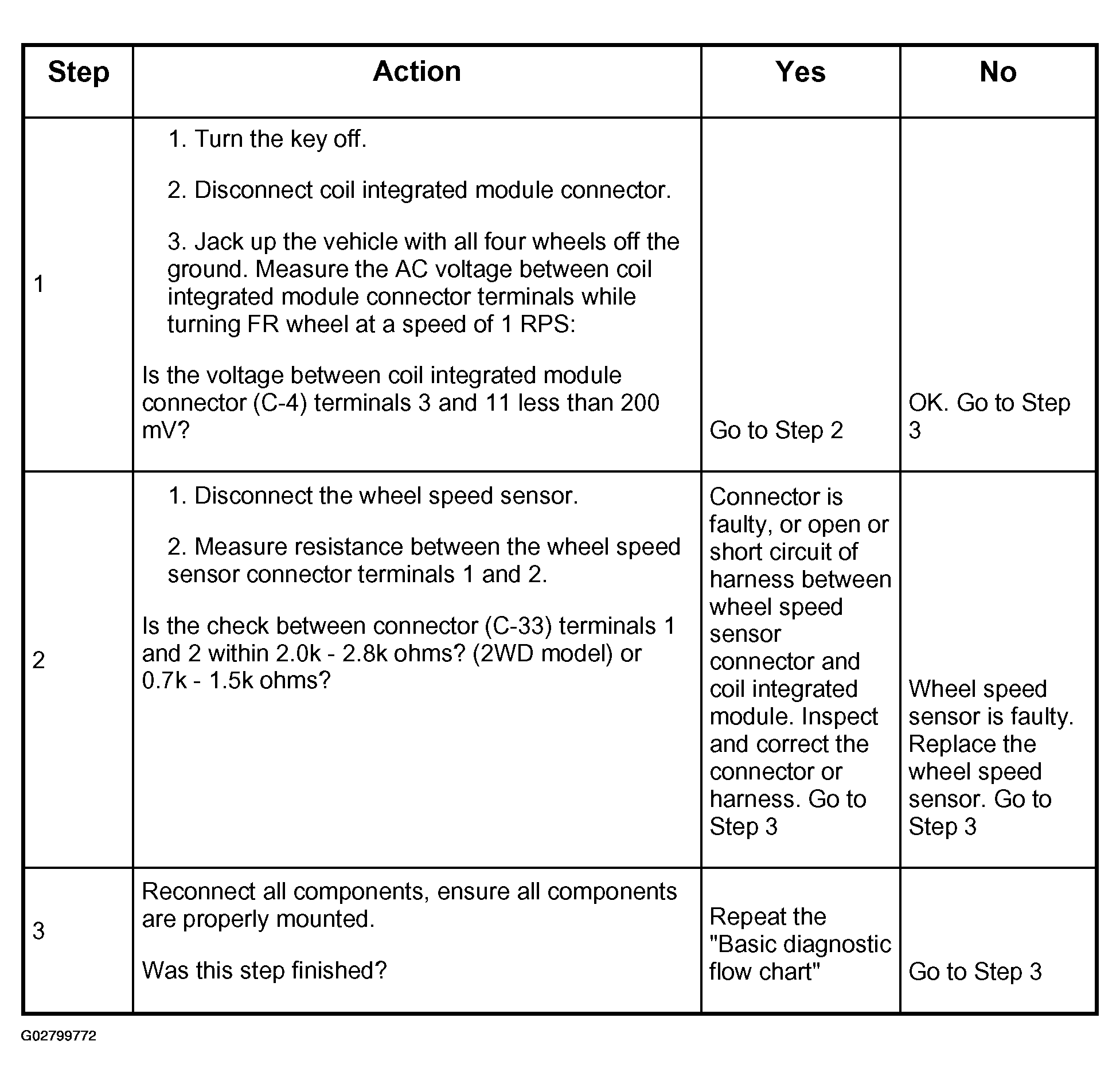

Fig 1: Chart C-1-2 FR Sensor Output Inspection Procedure Chart
G02799772Courtesy of ISUZU MOTOR CO.
