Operating Procedure

The power up screen is displayed when you power up the tester with the Isuzu systems PCMCIA card. Follow the operating procedure below.

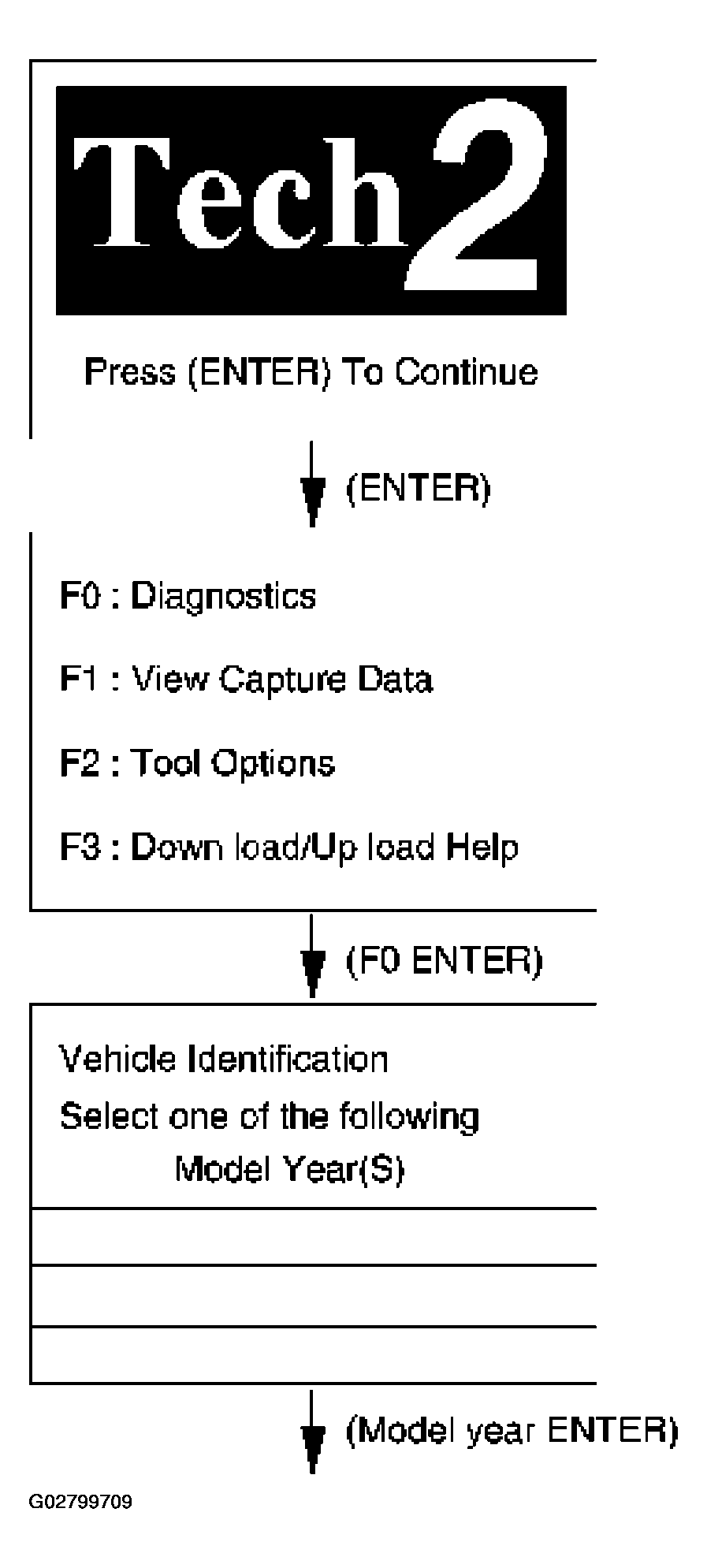

Fig 1: Identifying Power Up Screen Display Operating Procedure (1 Of 2)
G02799709Courtesy of ISUZU MOTOR CO.

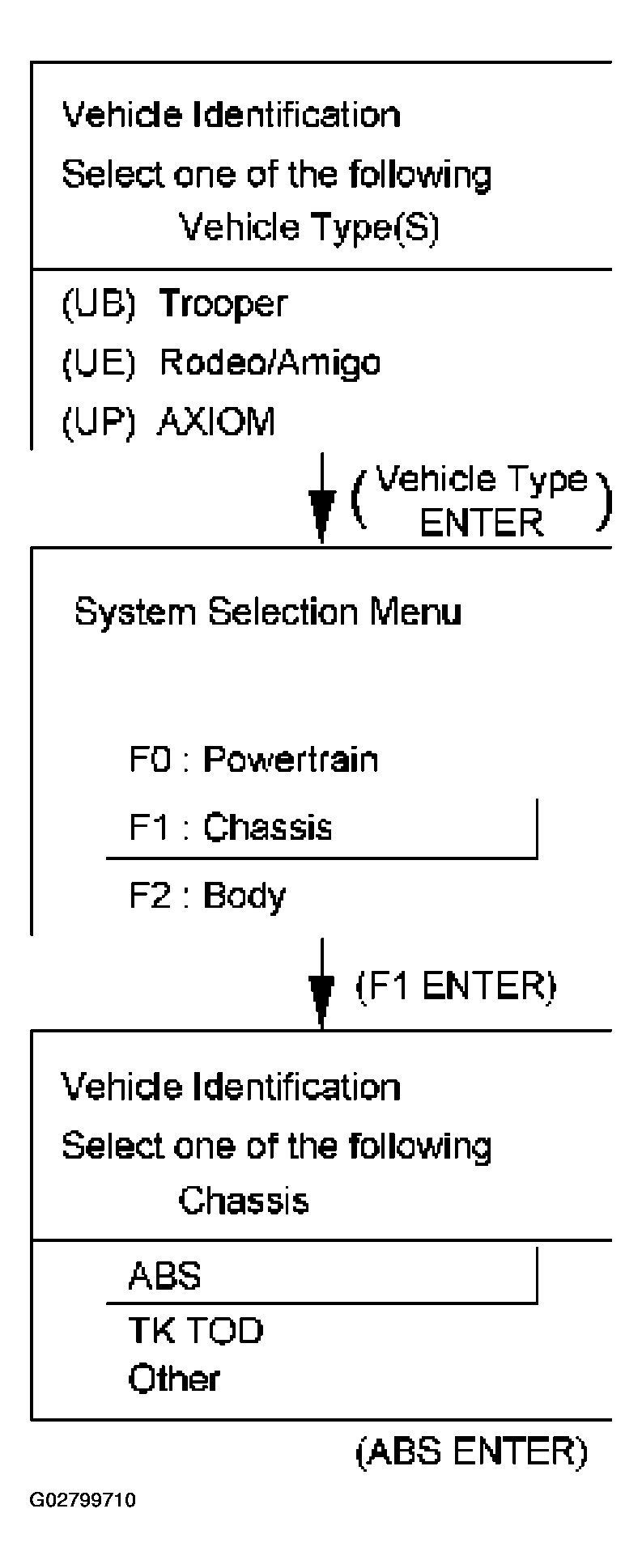

Fig 2: Identifying Power Up Screen Display Operating Procedure (2 Of 2)
G02799710Courtesy of ISUZU MOTOR CO.
