Diagnostic Trouble Codes

Choose and trace an appropriate flowchart by the numbers listed below to find fault and repair.

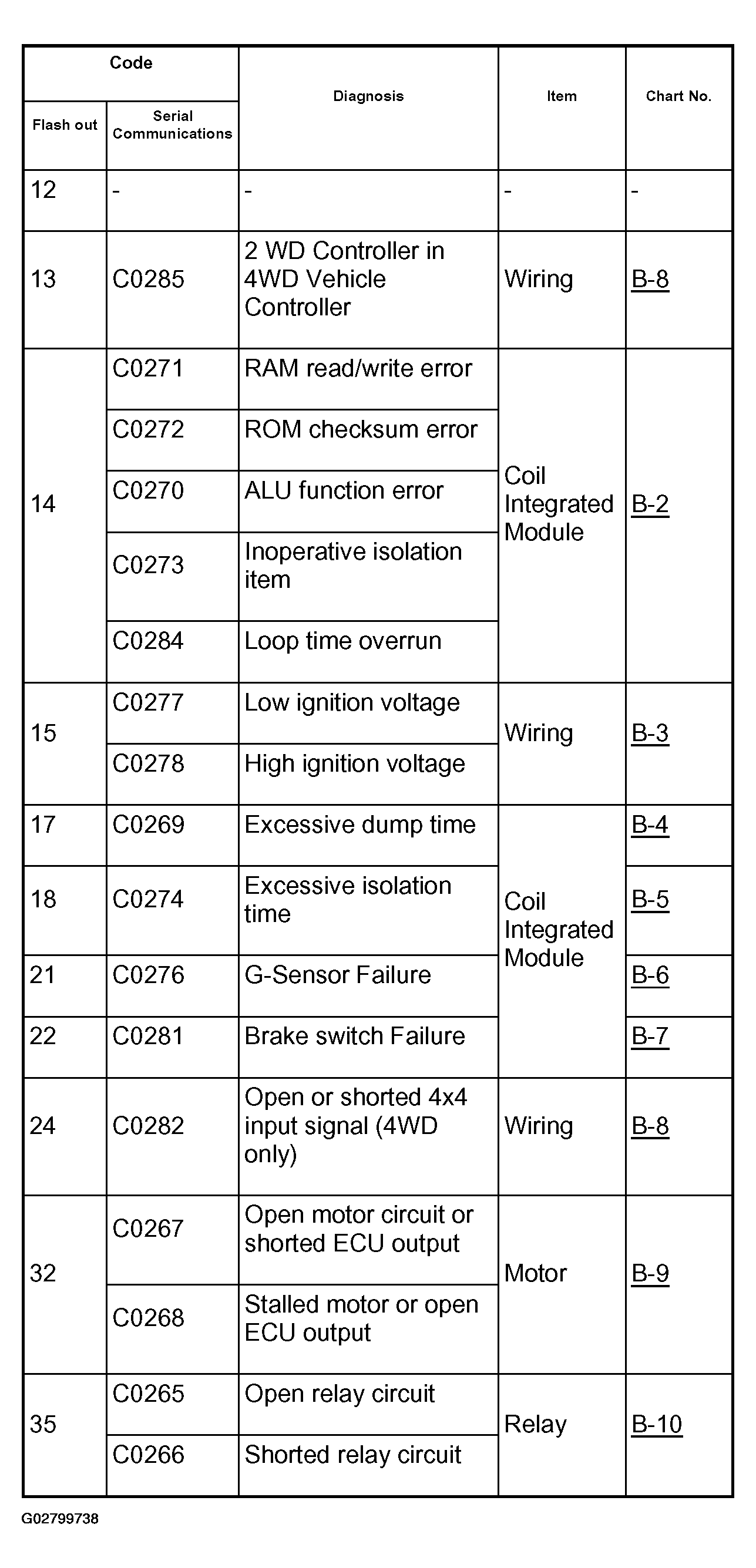

Fig 1: Diagnostic Trouble Codes (1 Of 3)

Courtesy of ISUZU MOTOR CO.

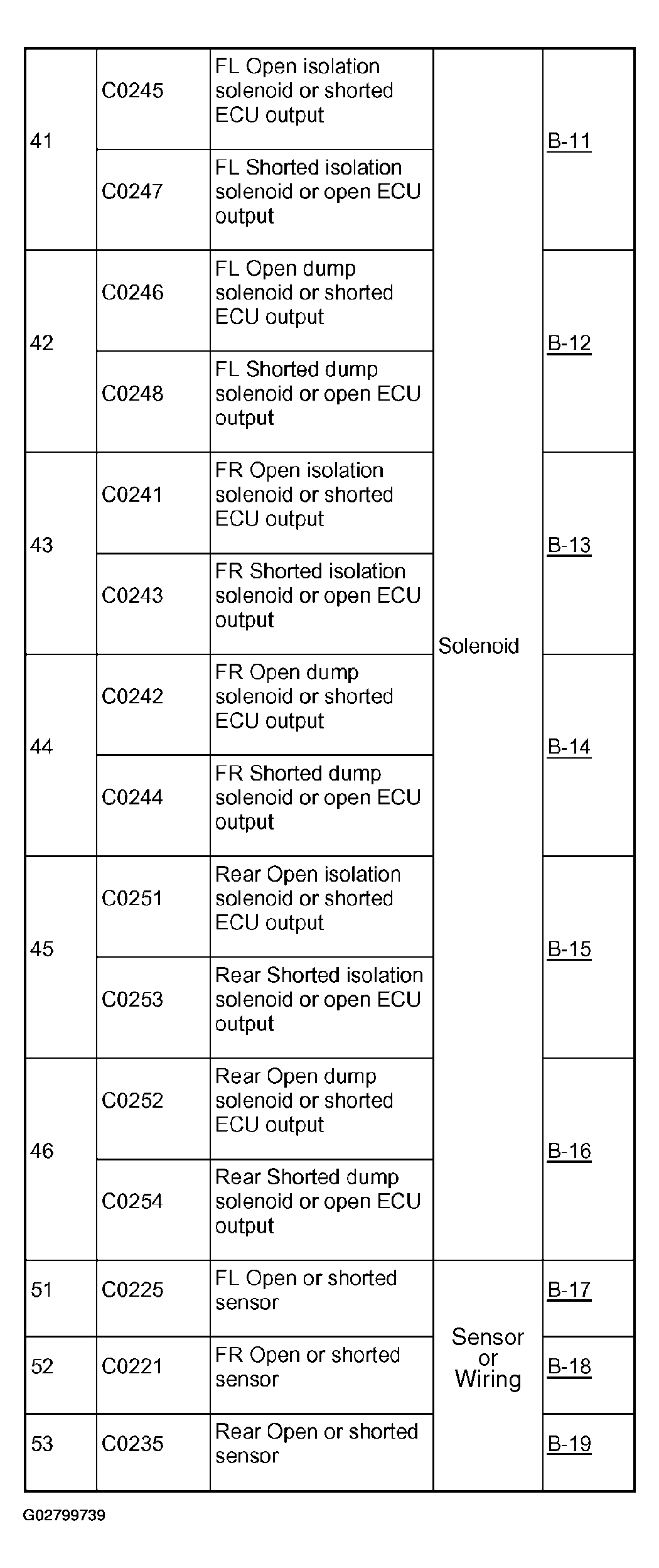

Fig 2: Diagnostic Trouble Codes (2 Of 3)

Courtesy of ISUZU MOTOR CO.

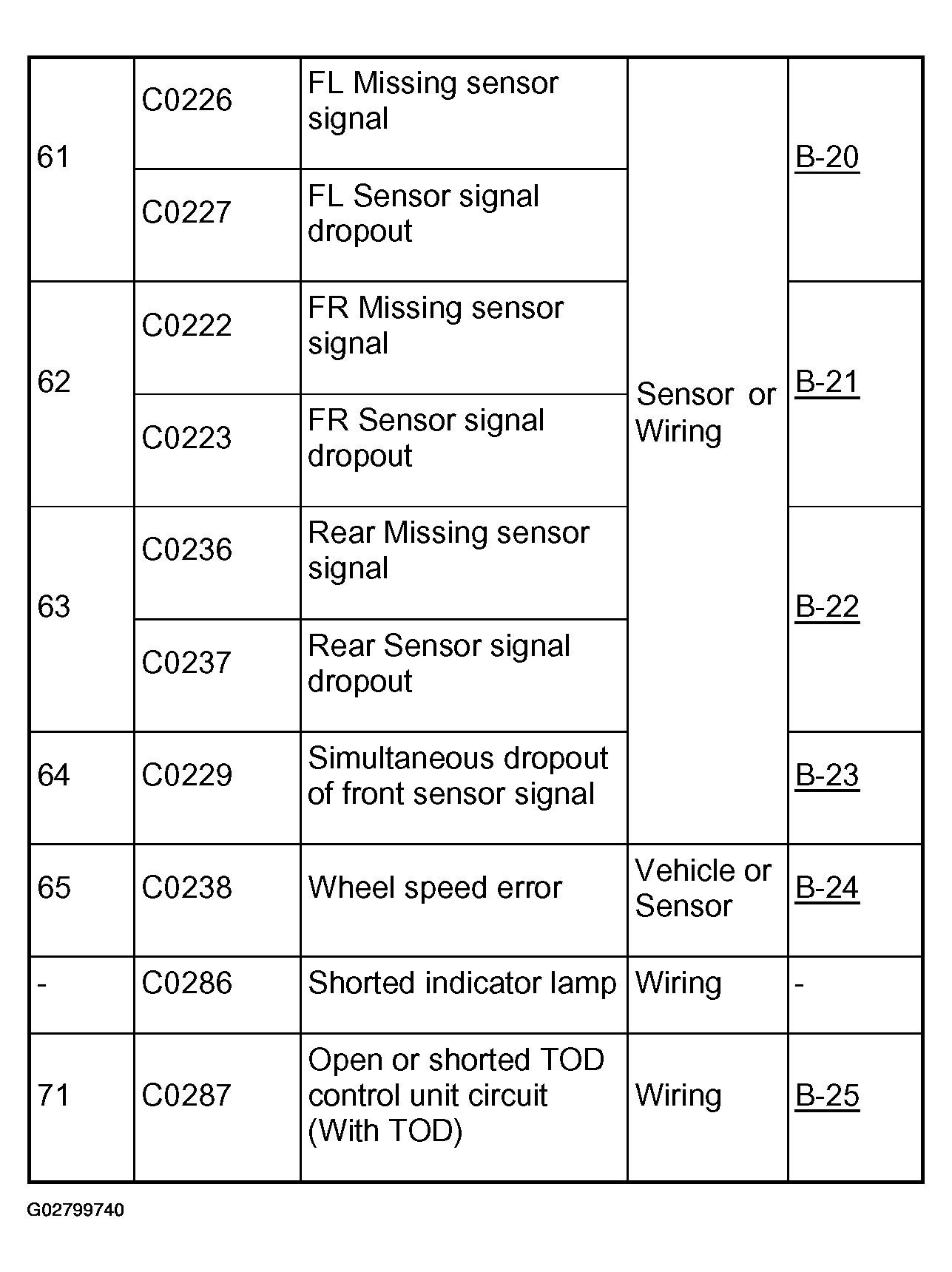

Fig 3: Diagnostic Trouble Codes (3 Of 3)

Courtesy of ISUZU MOTOR CO.
