Connector Views
ECM Pinouts:
Pin A1-A11:

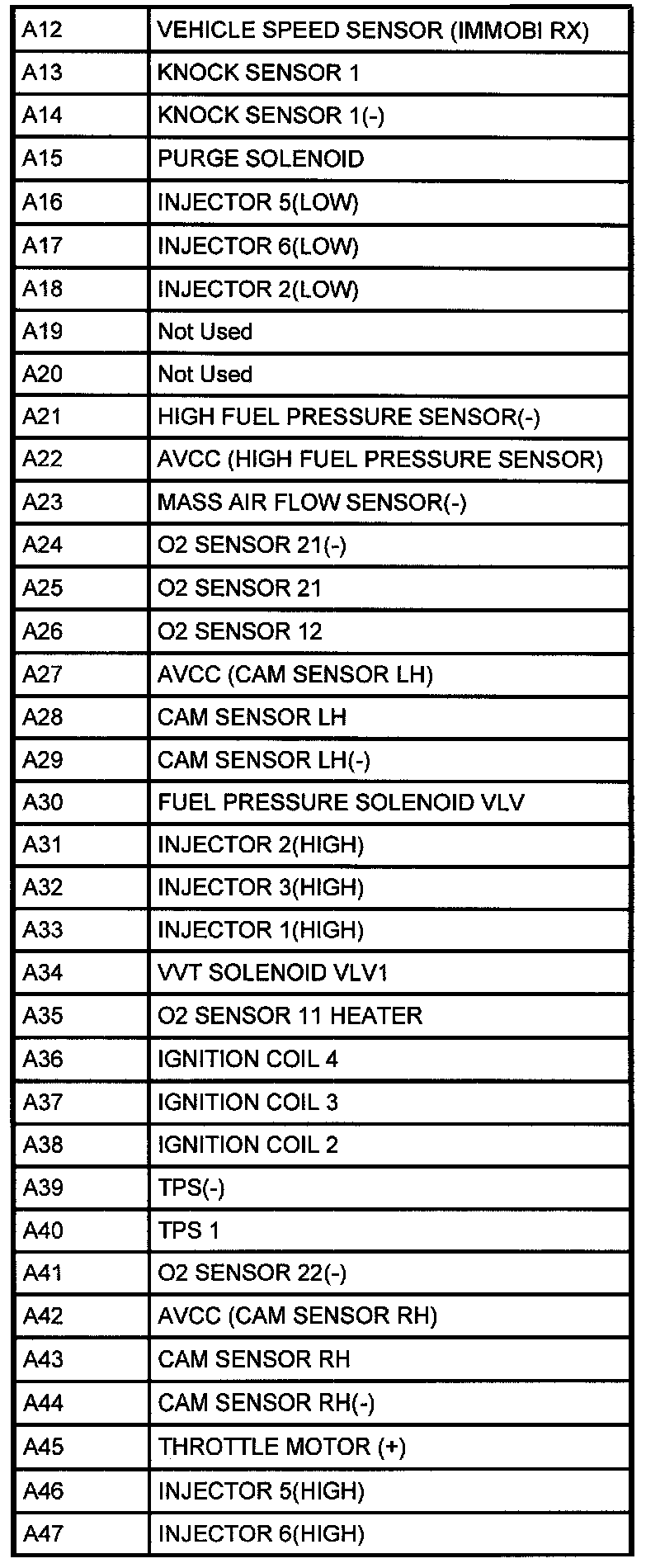

Pin A12-A47:
Pin A48-A60:
Pin K1-K21:

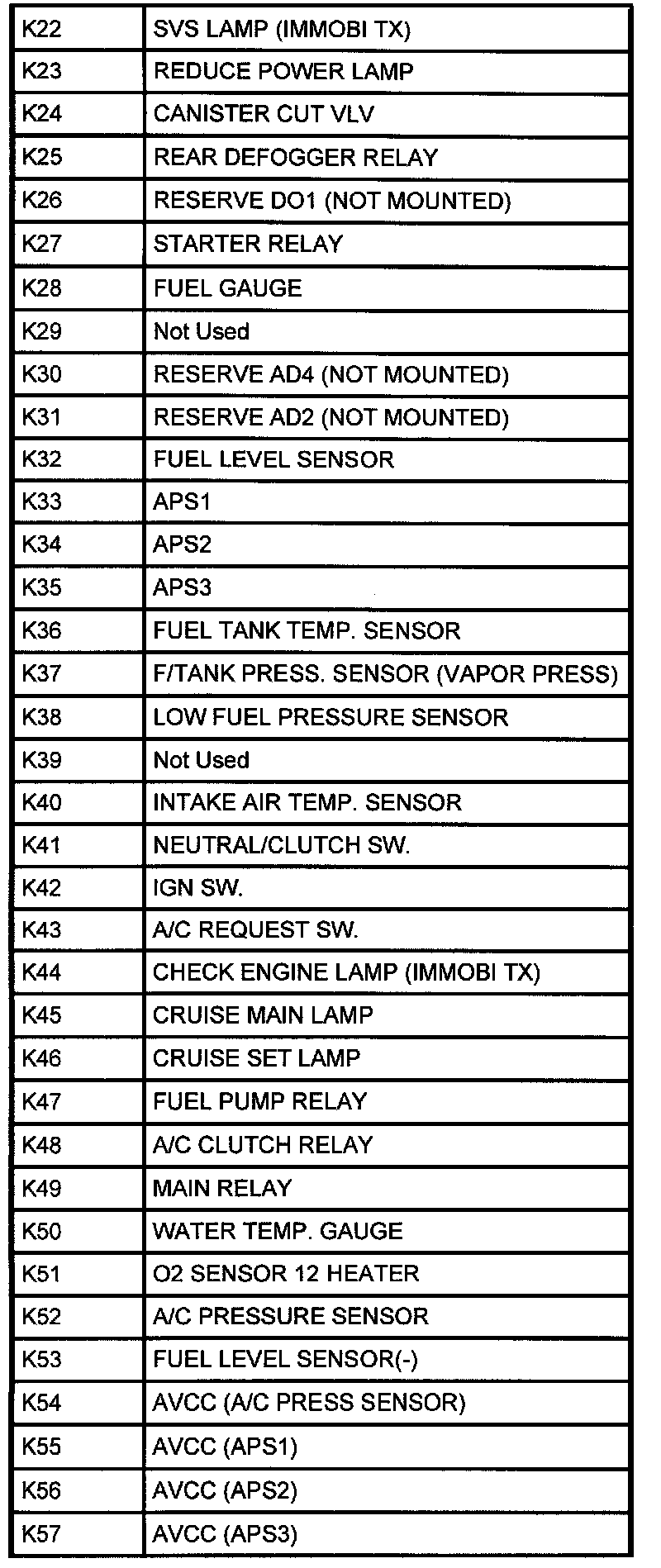

Pin K22-K57:

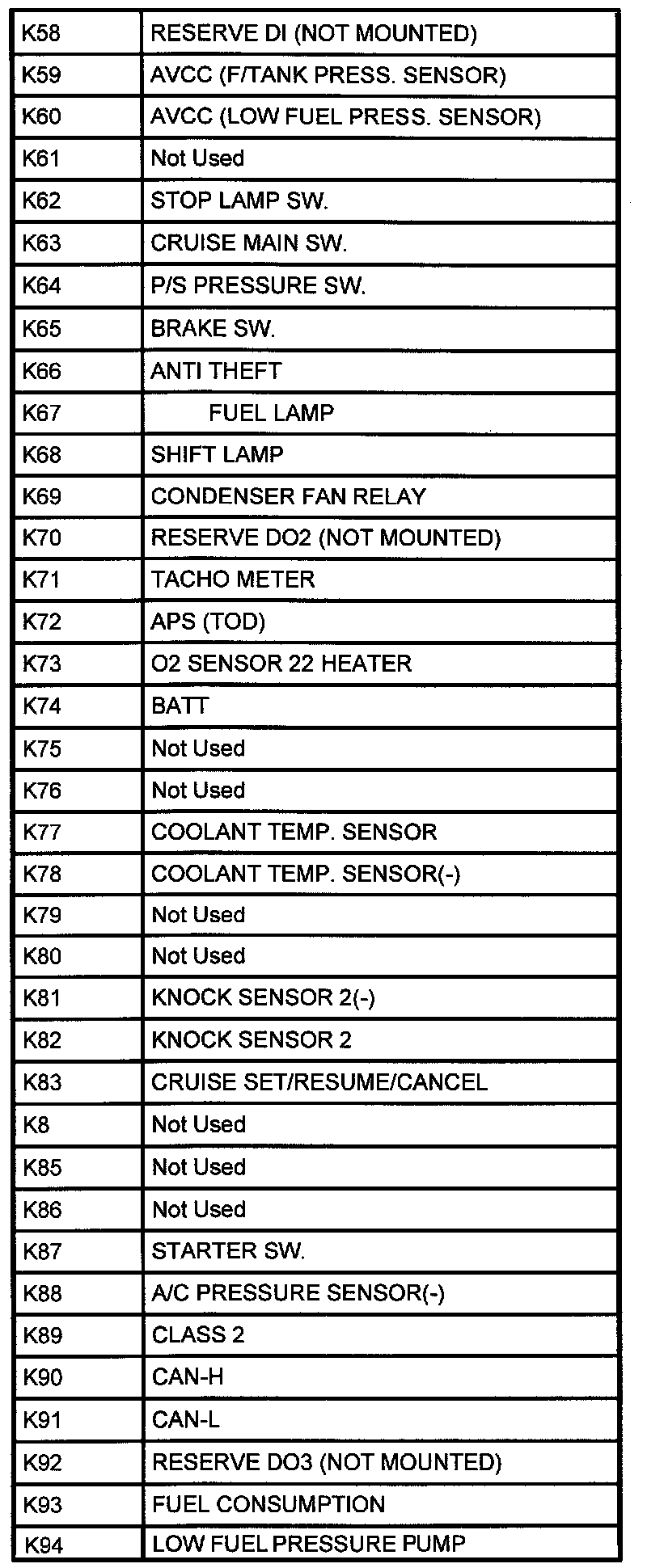

Pin K58-K94:
