Disassembled View

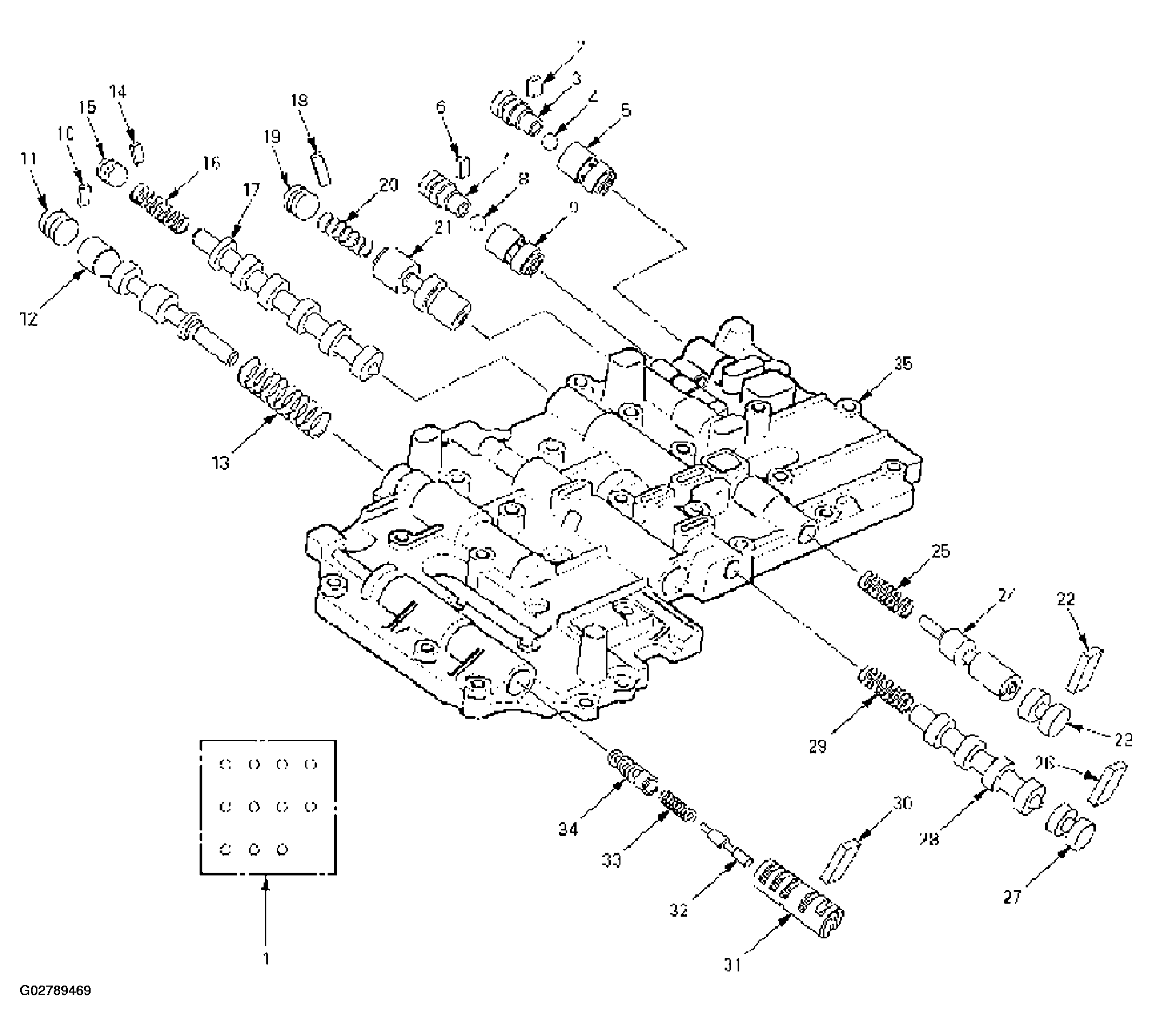

Fig 1: Disassembled View Of Upper Valve Body (1 Of 2)
G02789469Courtesy of ISUZU MOTOR CO.

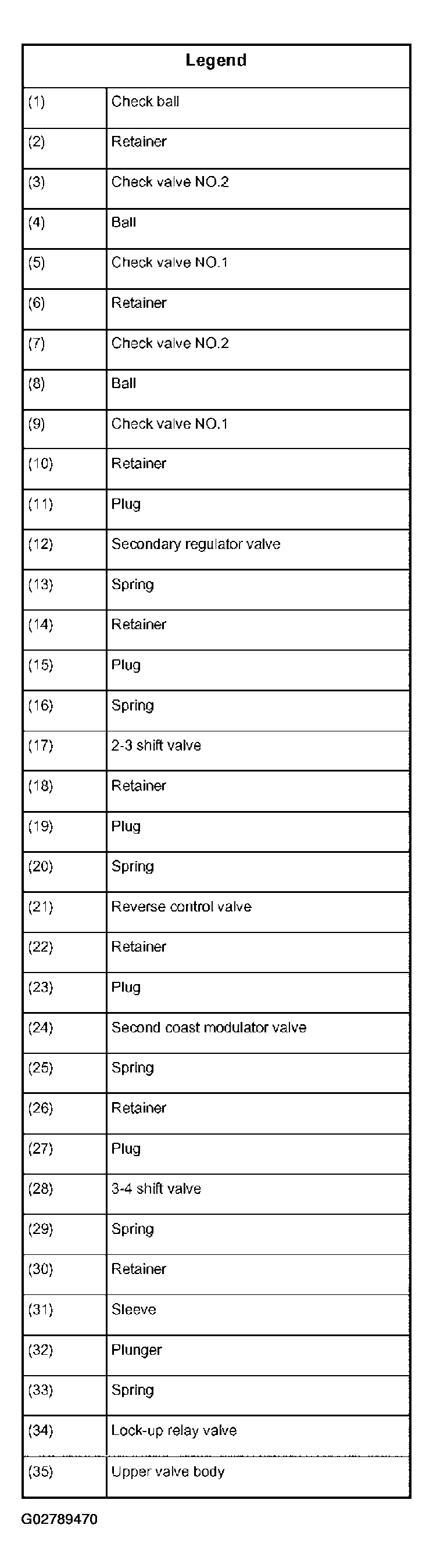

Fig 2: Disassembled View Of Upper Valve Body (2 Of 2)
G02789470Courtesy of ISUZU MOTOR CO.
