High Pressure Fuel Line

The high pressure fuel pump is mounted on the rear side of RH cylinder head. The pump is driven by the camshaft with gear. And high pressure fuel sensor is on the RH side fuel rail. Fuel pressure valve 5MPa - 10MPa (Idle 5MPa).

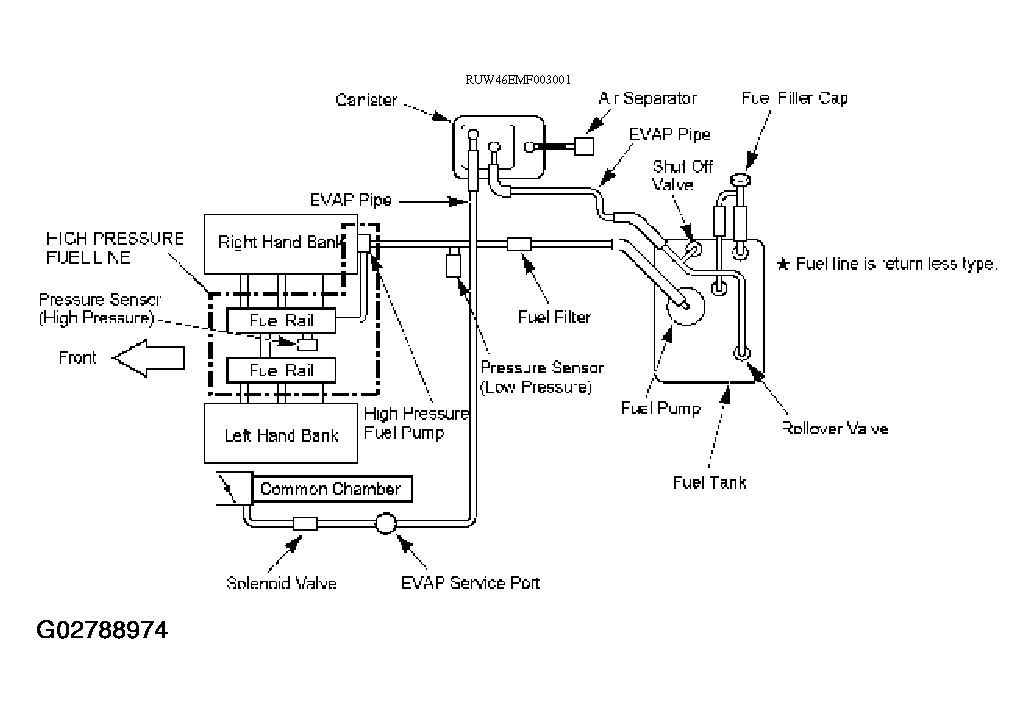

Fig 1: Identifying High Pressure Fuel Line
G02788974Courtesy of ISUZU MOTOR CO.
