Axle Shafts: Description

For front axle axle shaft and associated parts, see Fig 1 .

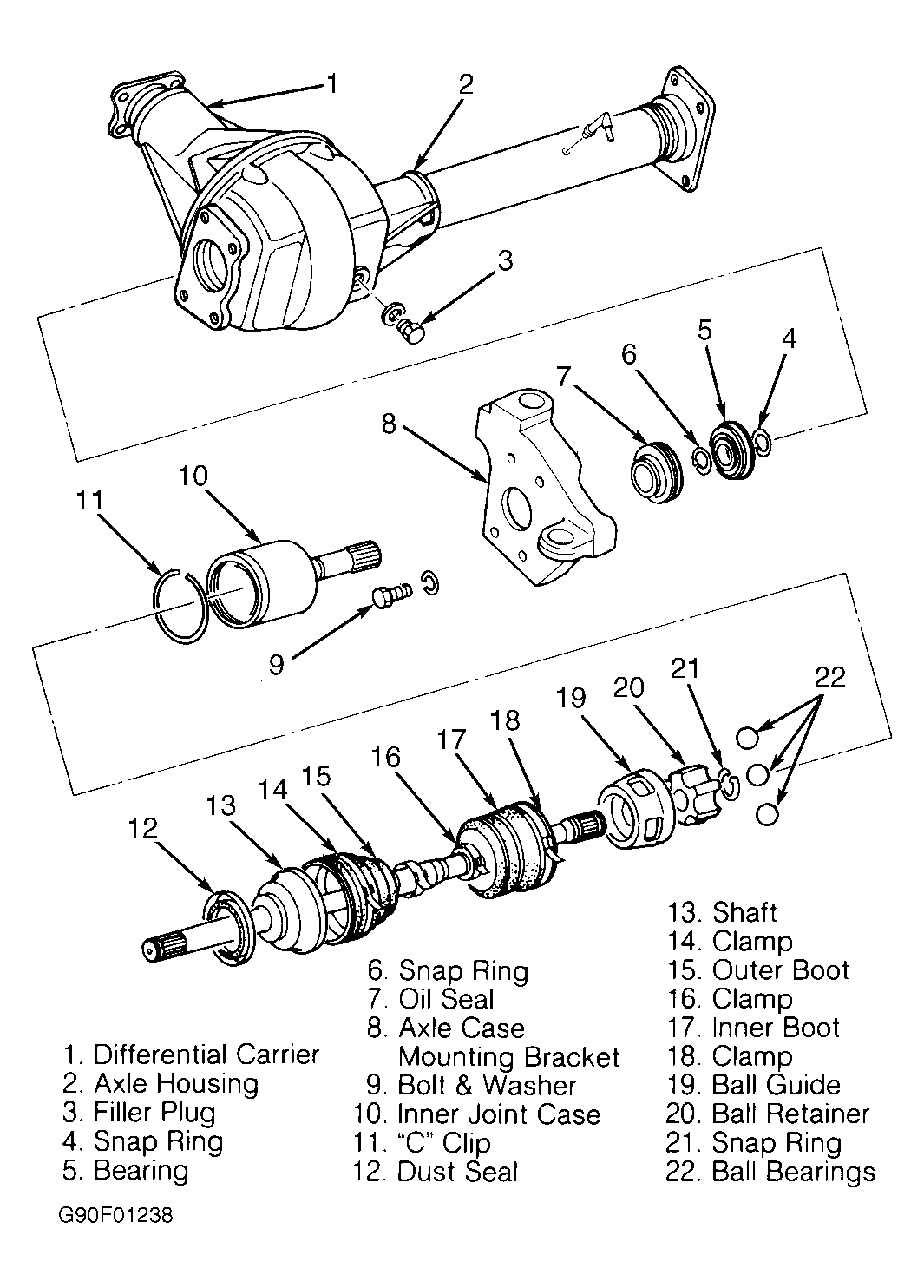

Fig 1: Exploded View Of Front Drive Axle
G90F01238Courtesy of ISUZU MOTOR CO.
