Chart TA-1: ABS Works Frequently But Vehicle Does Not Decelerate (Use Tech 2)

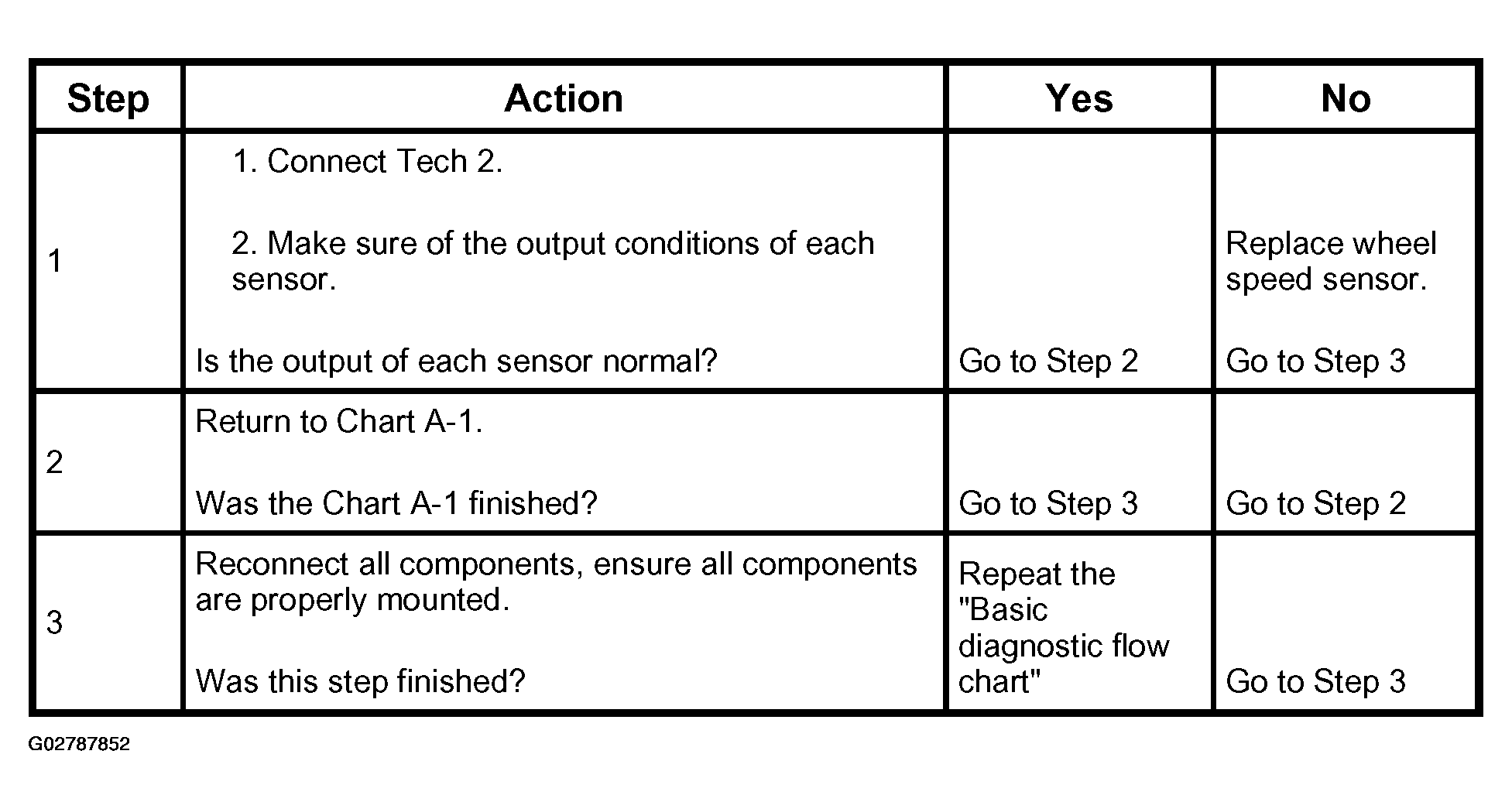

Fig 1: ABS Works Frequently But Vehicle Does Not Decelerate (Use Tech 2) 33 Diagnostic Procedure (Chart TA-1)
G02787852Courtesy of ISUZU MOTOR CO.
