Immobilizer Control Unit (ICU): Pin-Outs

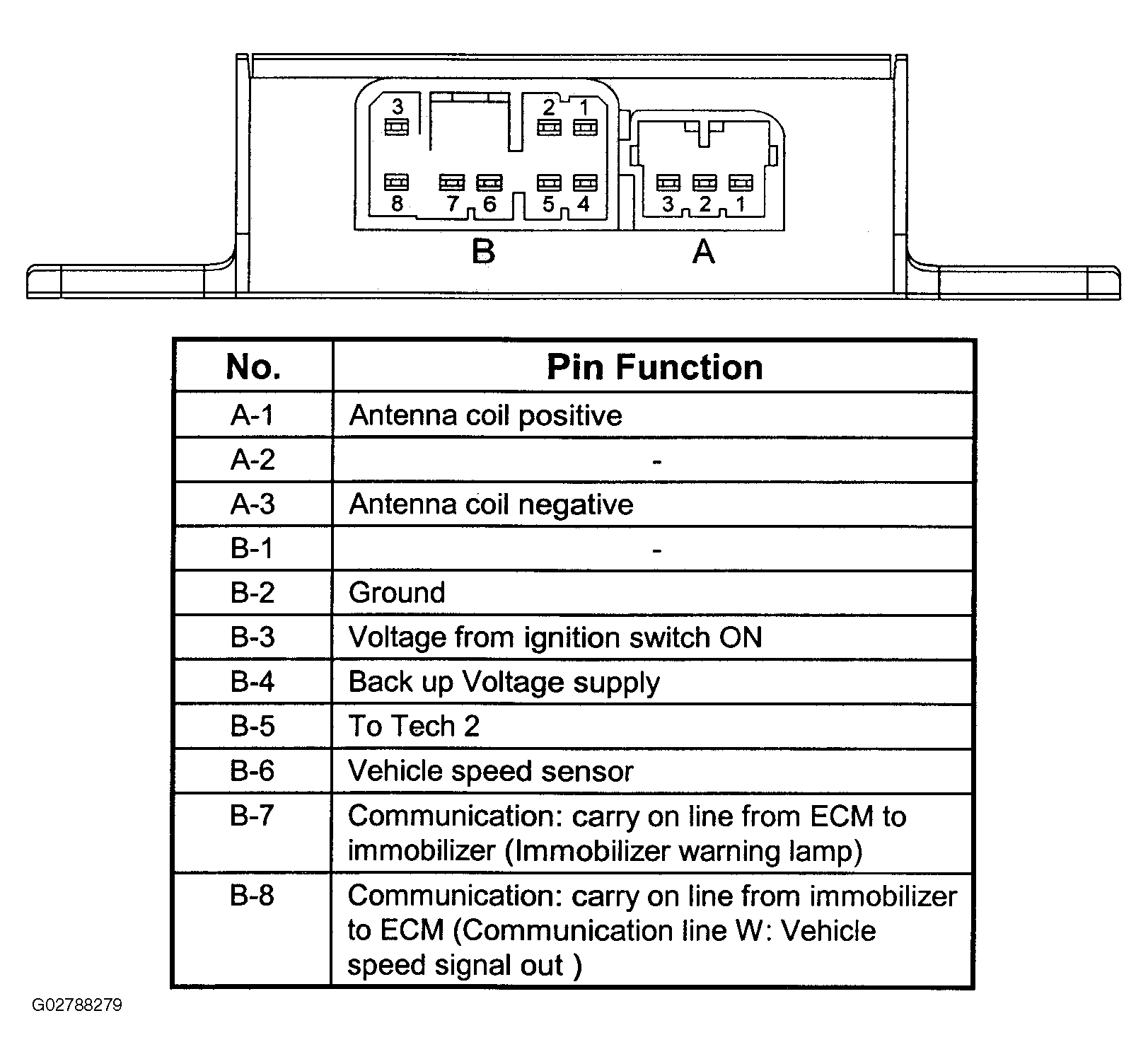

Fig 1: Immobilizer Control Unit (ICU) Pin-outs

G02788279

Courtesy of ISUZU MOTOR CO.
