Disassembled View

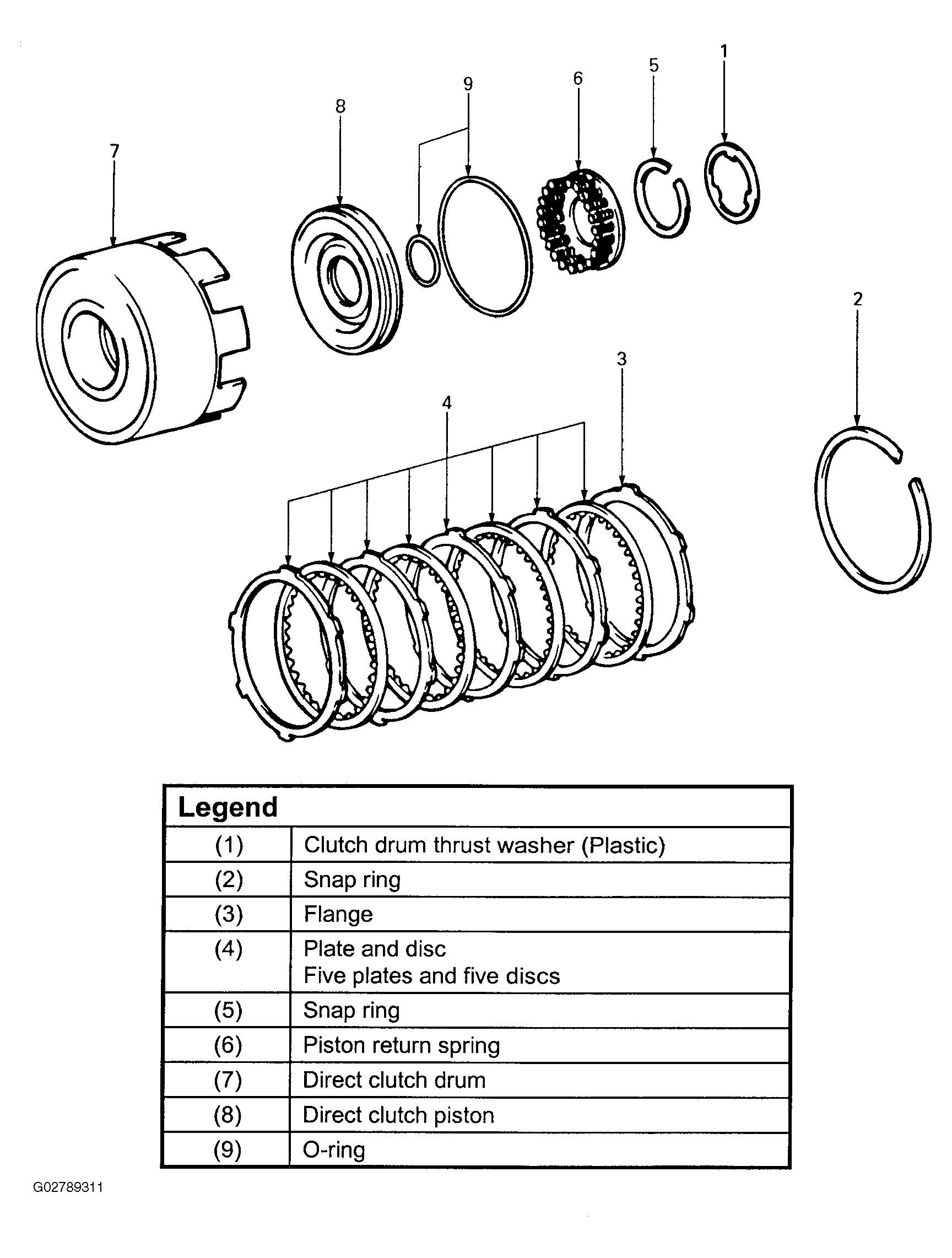

Fig 1: Disassembled View Of Direct Clutch Assembly (C-2)
Courtesy of ISUZU MOTOR CO.
