Camber Adjustment

The camber angle can be adjusted by means of the camber shims (2) installed in position between the chassis frame (1) and fulcrum pins

Camber angle: 0°+/- 30'

King pin inclination: 12°30' +/- 30'

CAUTION: Left and right side must be equal within 30'.

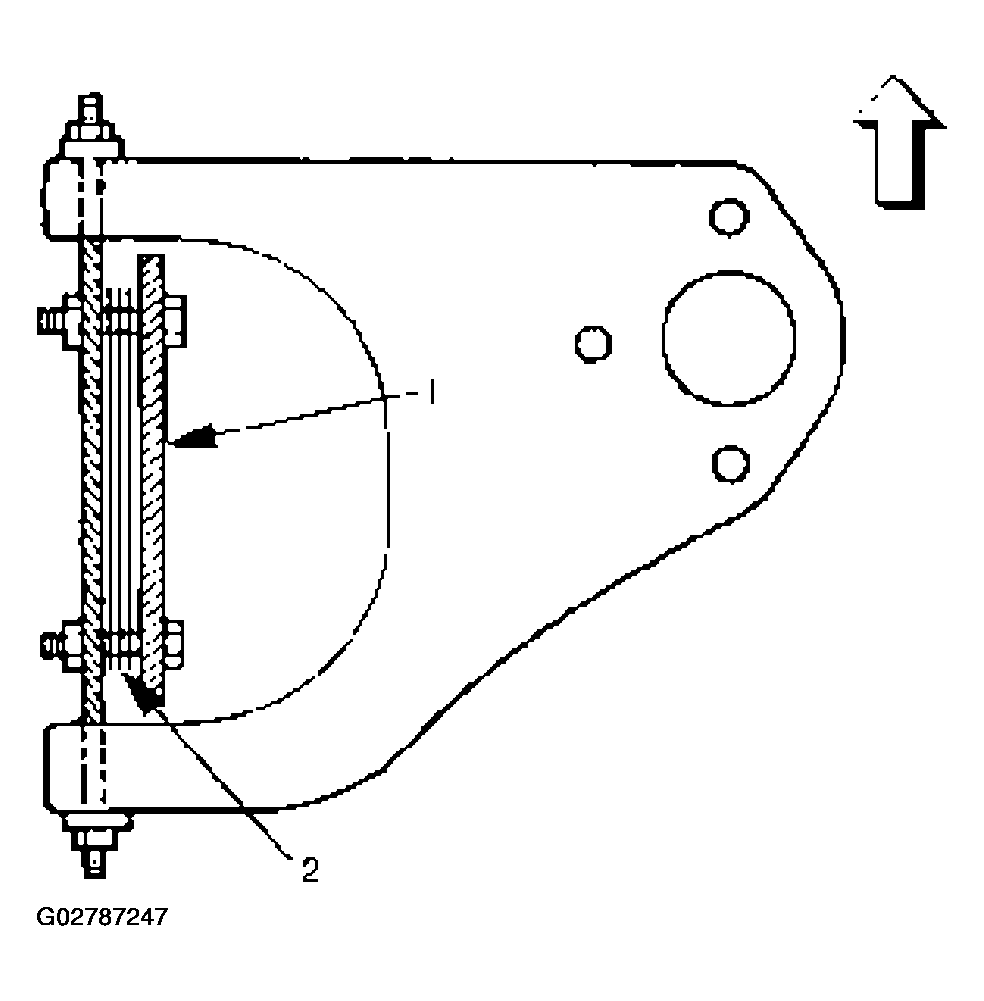

Fig 1: Adjusting Camber (1 Of 2)

Courtesy of ISUZU MOTOR CO.

Fig 2: Adjusting Camber (2 Of 2)

Courtesy of ISUZU MOTOR CO.

NOTE: Overall thickness of caster shim and camber shim should be 10.8 mm (0.425 in) or less.

Tighten the fulcrum pin bolt to the specified torque.

Torque: 152 N.m (112 lb ft)

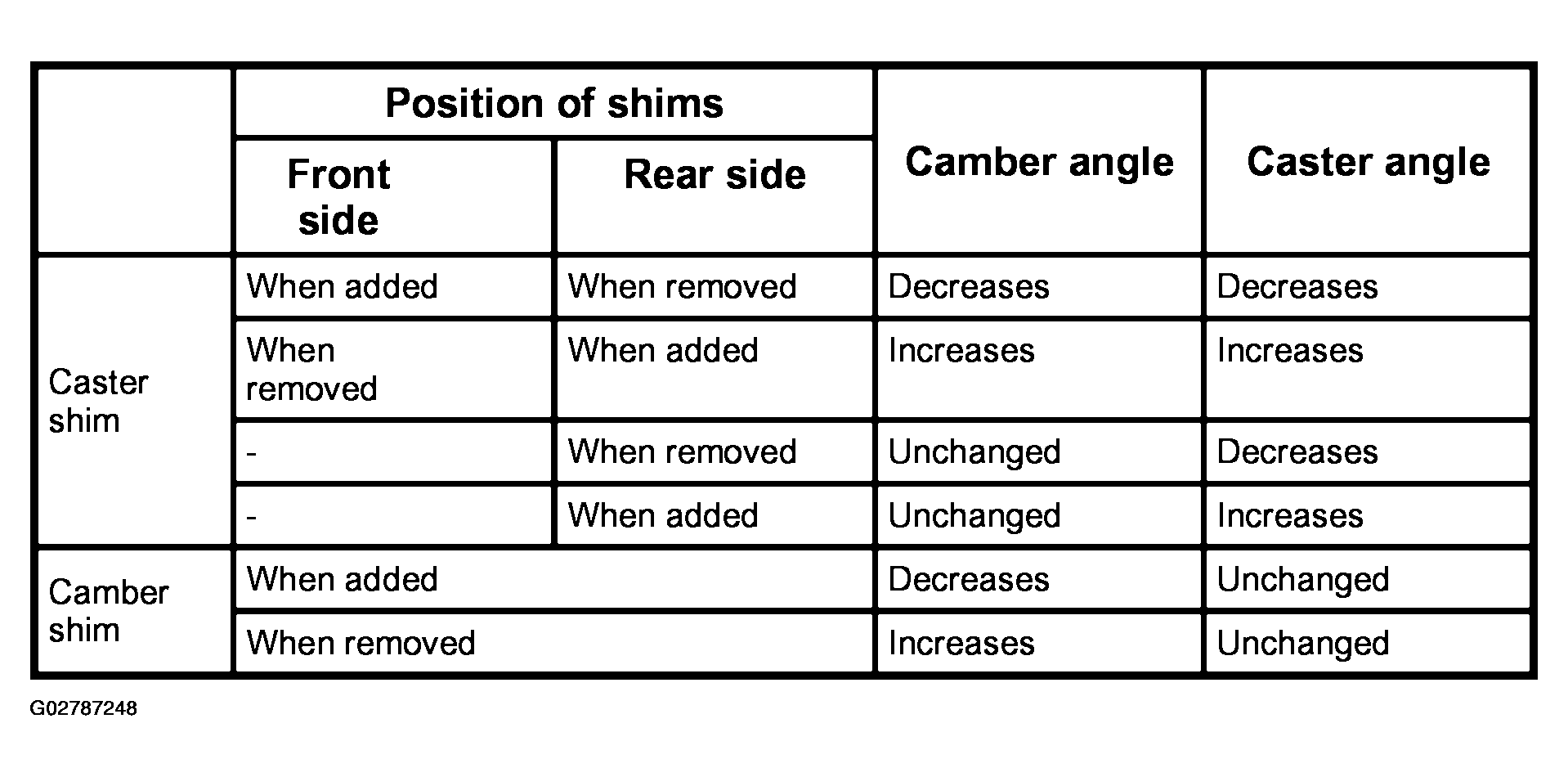

Fig 3: Camber & Caster Shim Position Chart

Courtesy of ISUZU MOTOR CO.
