Turn Signal Switch

This diagnosis covers mechanical problems only. Refer to TURN SIGNAL LIGHT SWITCH (COMBINATION SWITCH) .

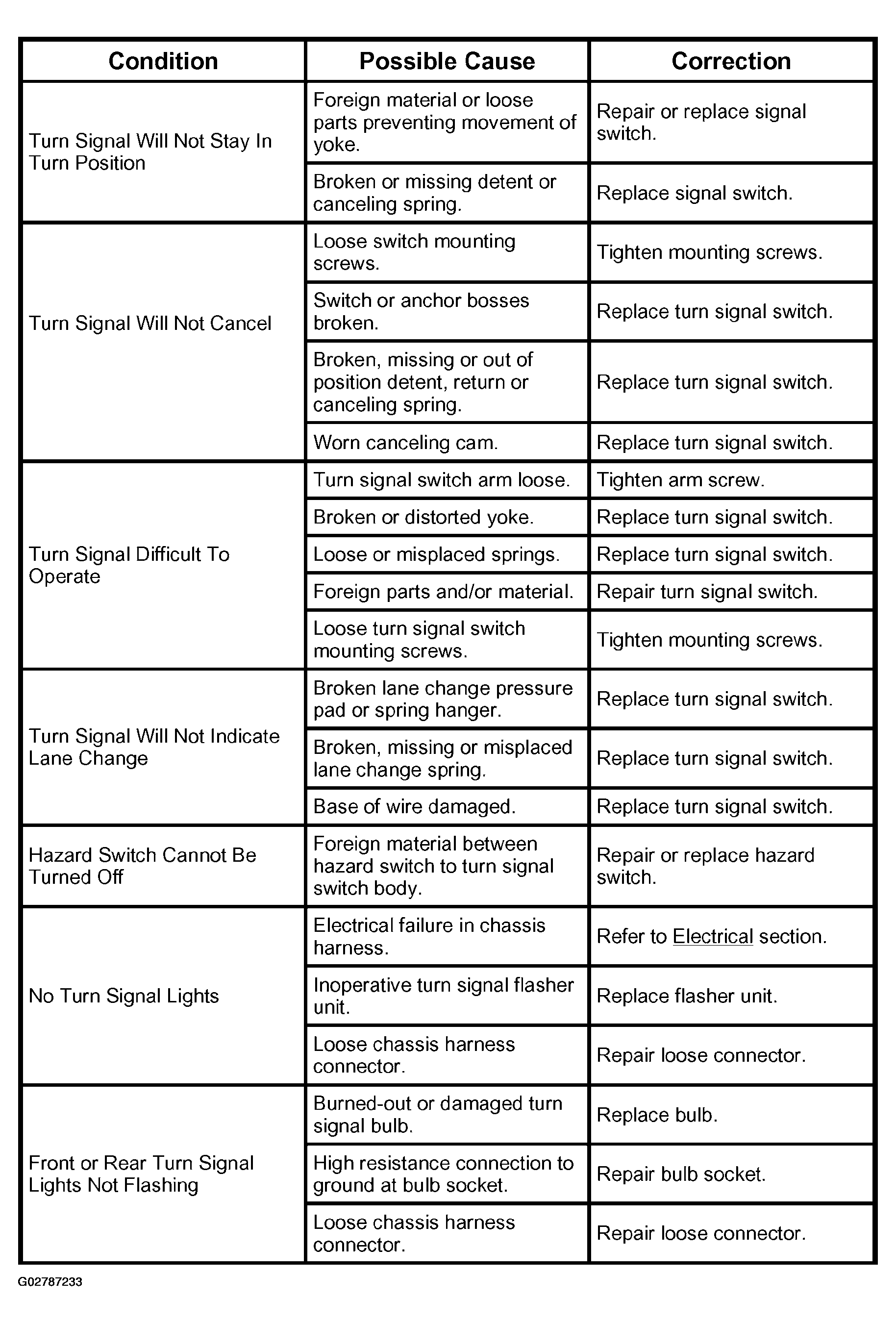

Fig 1: Turn Signal Switch Diagnosis Chart
G02787233Courtesy of ISUZU MOTOR CO.
