Isuzu
>>
2004
>>
Axiom 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Forward Clutch Assembly (C-1)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

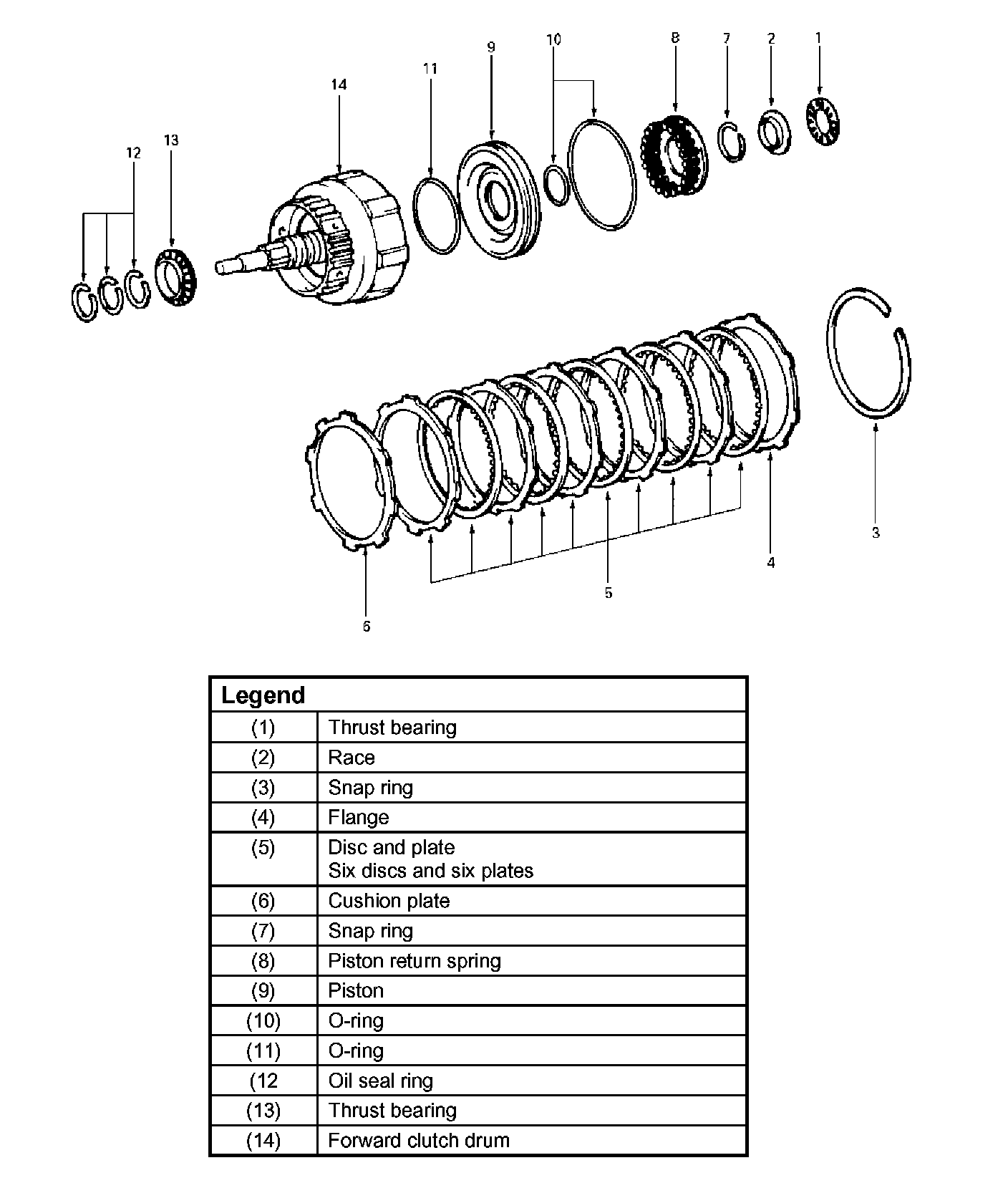

Forward Clutch Assembly (C-1)
