Security Lamp/Indicator: Service and Repair

Anti-theft Indicator

Removal

1. Disconnect the battery ground cable.

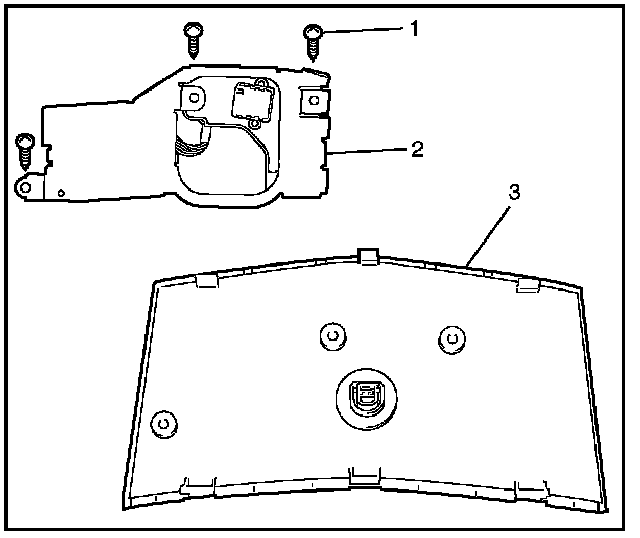

2. Remove the cluster upper cover (3).
- Disconnect the sun sensor connector and the GPS control unit connector.
3. Remove the GPS control unit (2).




- Remove the screws (1).

Installation

To install, follow the removal steps in the reverse order.
