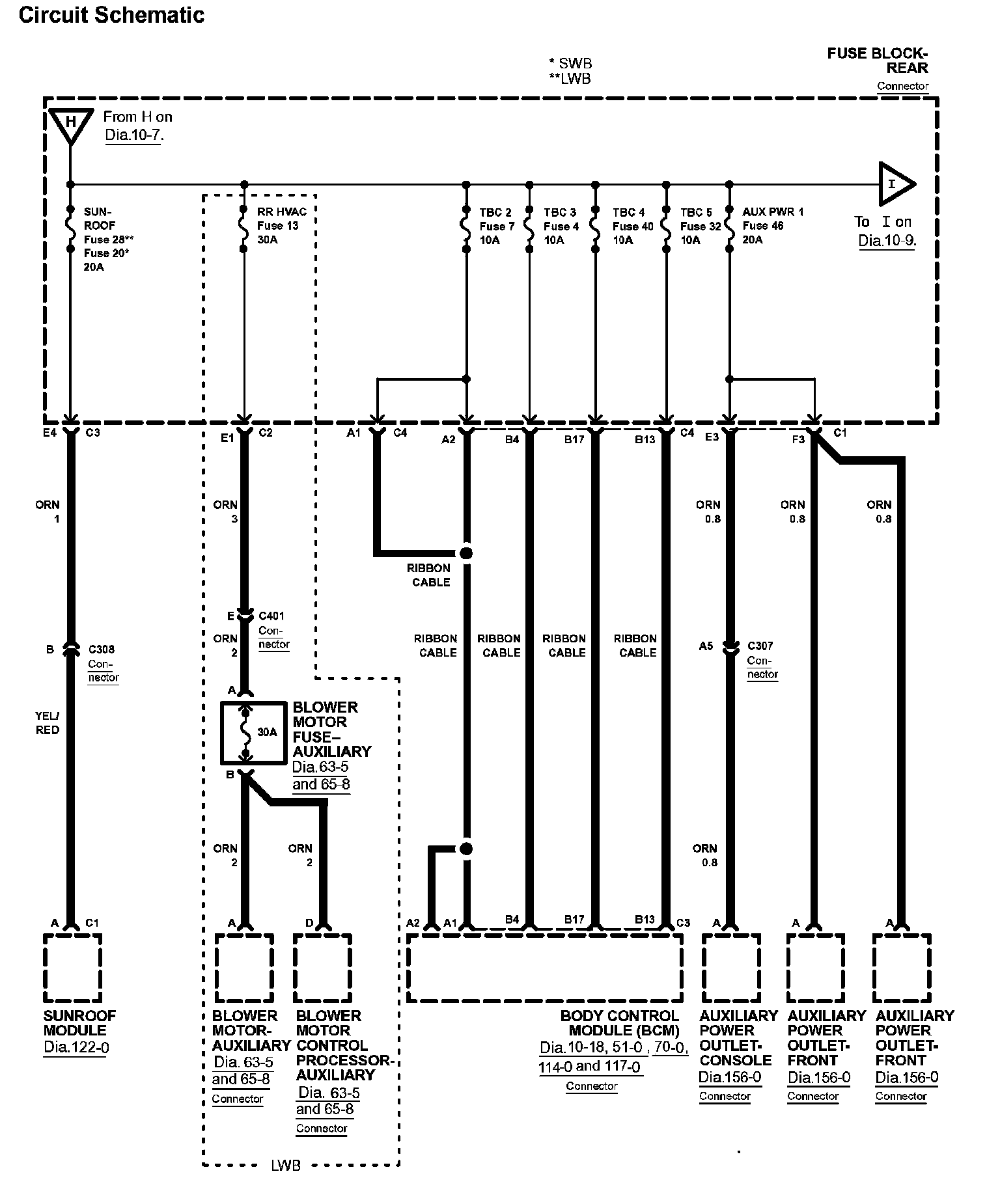

Diagram 10-8

Diagram 10-8:

Next Diagram Diagram 10-9


Previous Diagram Diagram 10-7


Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
