Engine Cranks But Does Not Run
Engine Cranks but Does Not Run
Description
The Engine Cranks but Does Not Run diagnostic table is an organized approach to identifying a condition that causes an engine to not start. The diagnostic table directs the service technician to the appropriate system diagnosis. The diagnostic table assumes the following conditions are met:
- The battery is completely charged. Refer to Battery Inspection/Test (Non-H P2) in Engine Electrical.
- The engine cranking speed is acceptable. Refer to Engine Cranks Slowly in Engine Electrical.
- There is adequate fuel in the fuel tank.

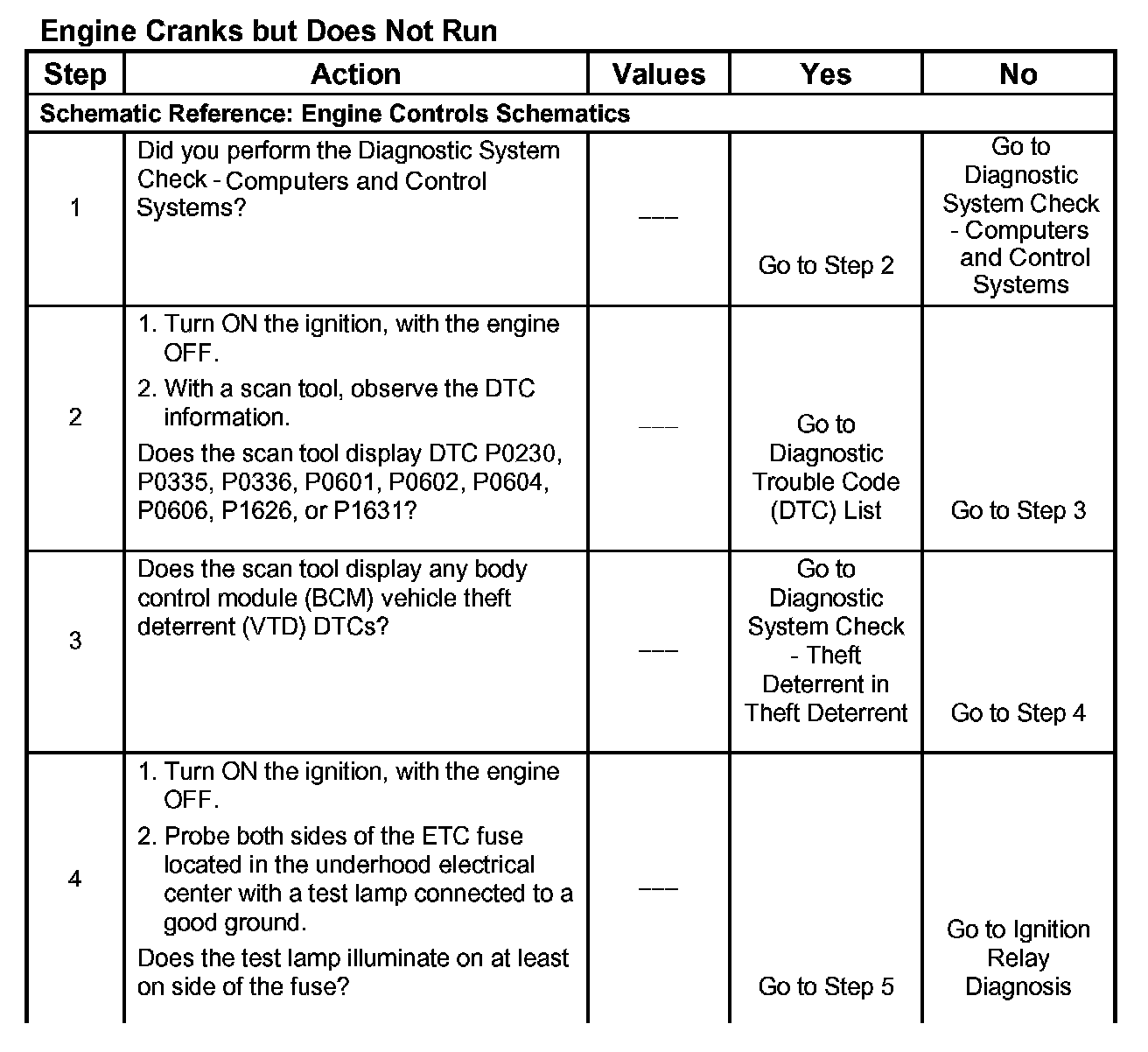

Step 1 - 4:

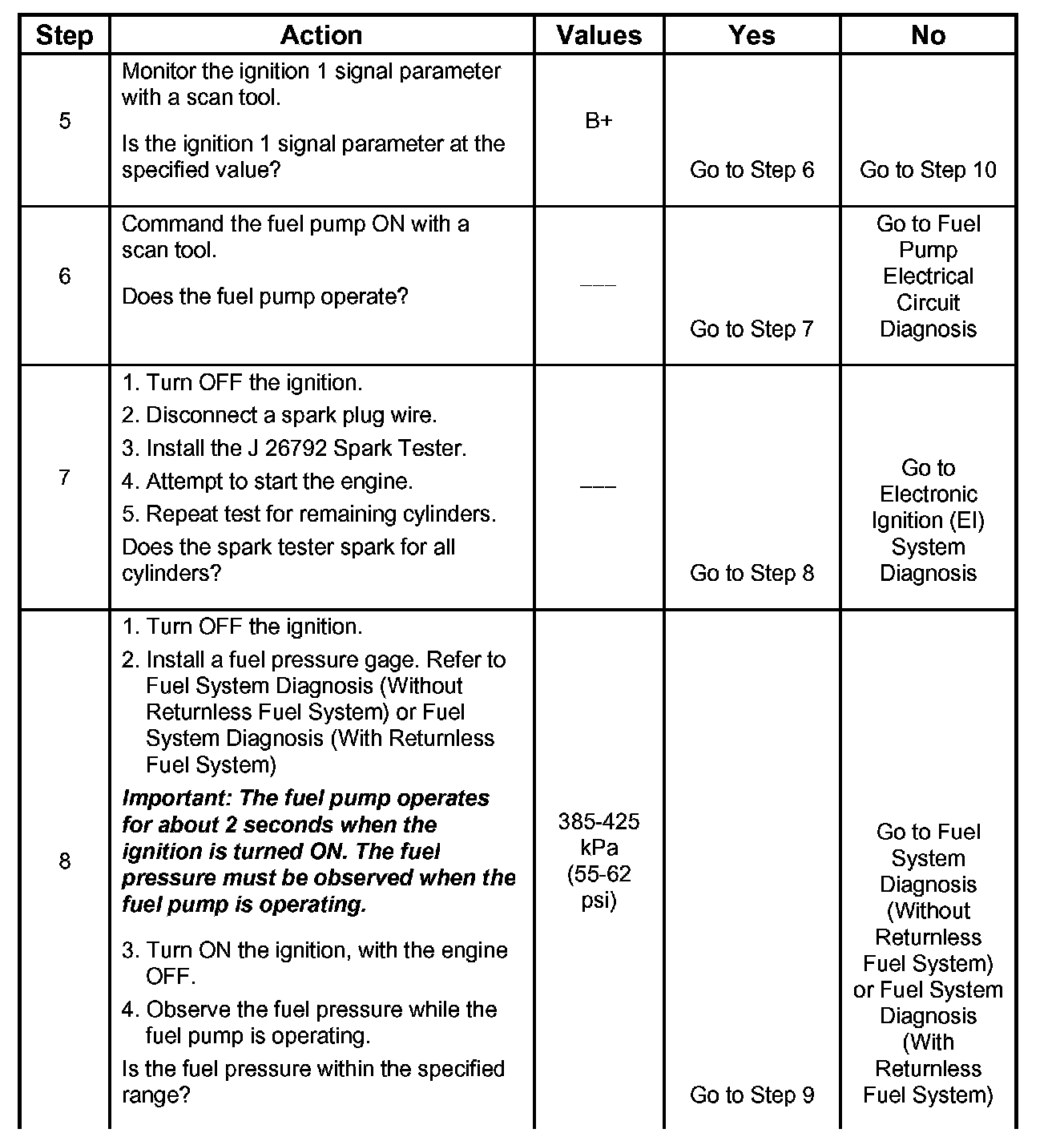

Step 5 - 8:

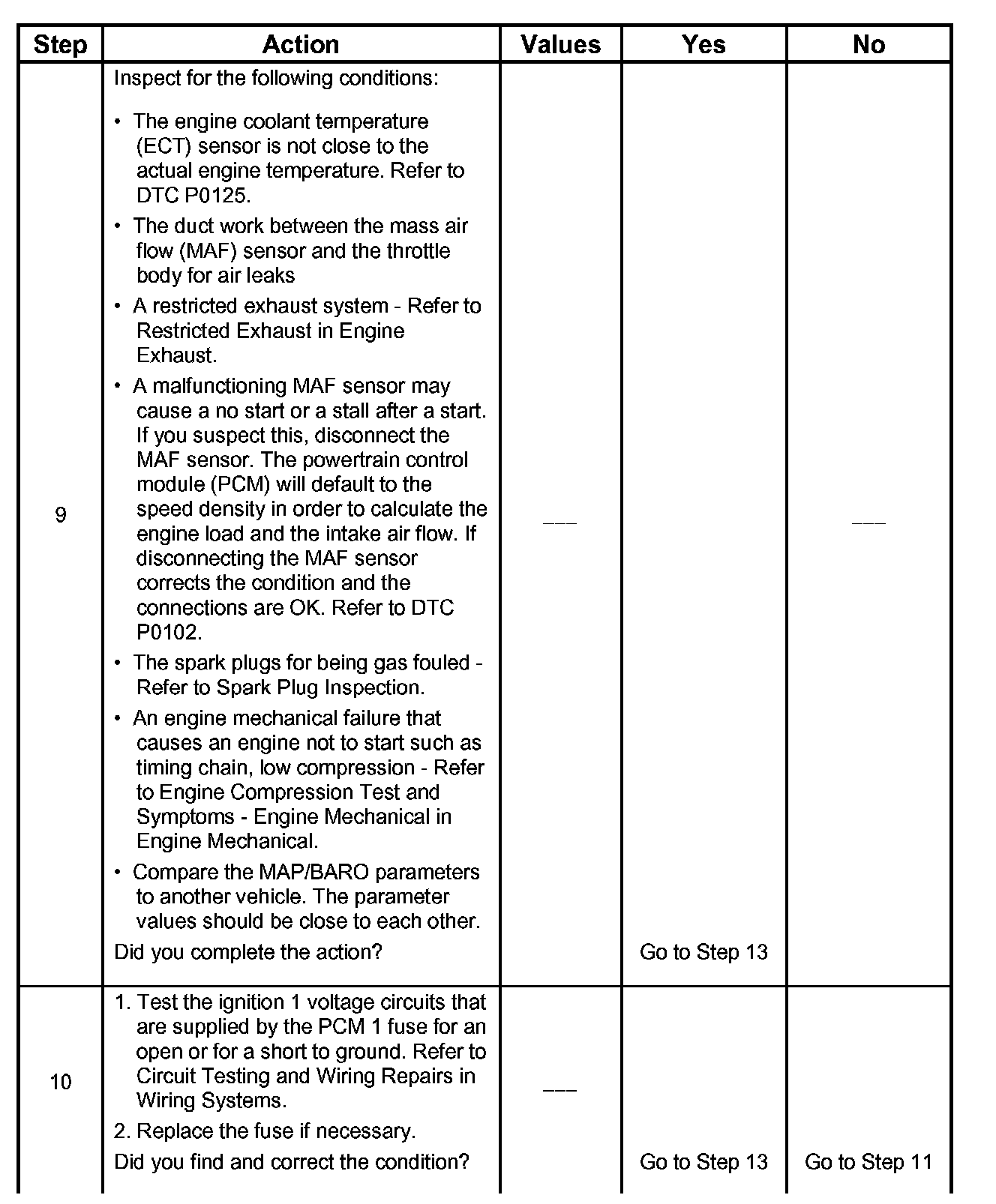

Step 9 - 10:
