Home >> Isuzu >> 2003 >> Rodeo 4WD V6-3.2L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Diagram 24-3
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.

Diagram 24-3

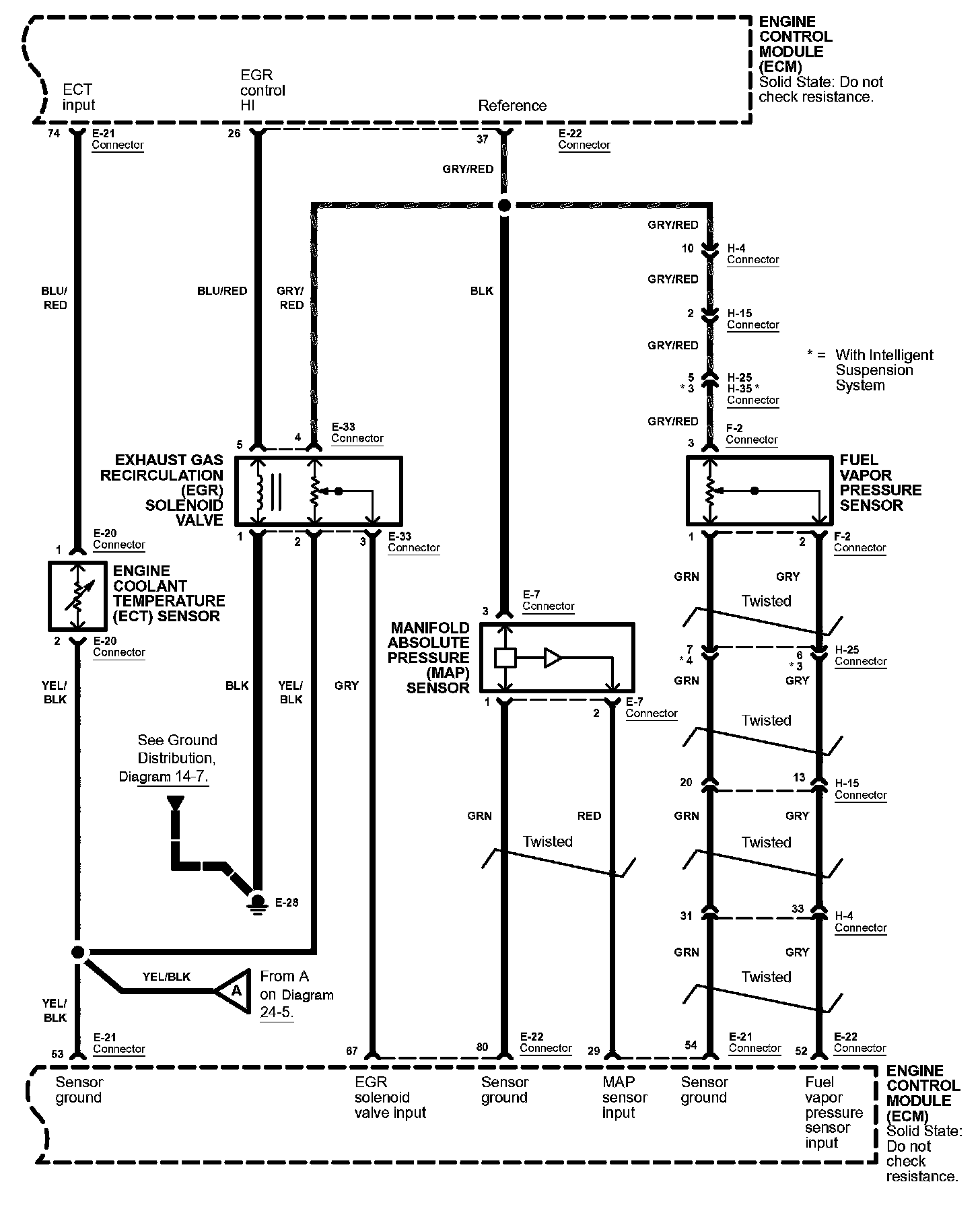

Diagram 24-3:






Next Diagram: Diagram 24-4

Previous Diagram: Diagram 24-2

Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
